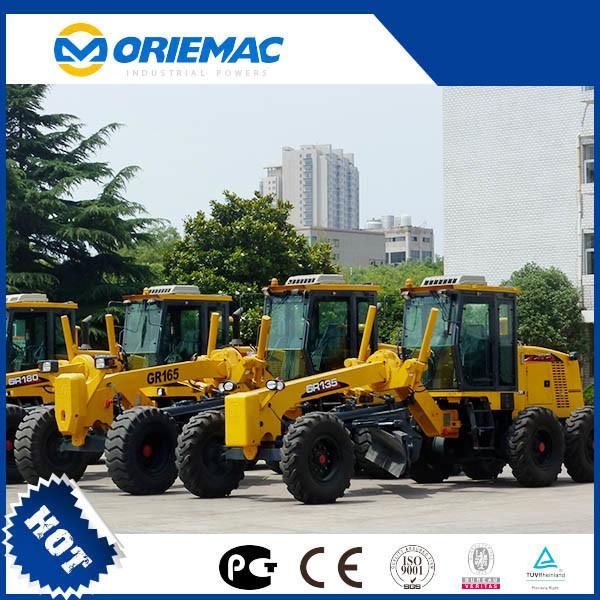

New Changlin China Motor Grader 722h Mini Motor Grader
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic Transmission
- Walking Mode：Wheeled
- Type：Motor Grader
Base Info
- Model NO.：722H
- Usage：Universal Type
- Scraper Type：Pull Scraper
- Load and Unload Method：Rotary
- Engine Power：147~515kw
- Color：Orange
- Transport Package：Nude, Suitable for Shiping
- Specification：Standard Configuration
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- HS Code：84292090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. 722H Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Rotary Engine Power 147~515kw Color Orange Transport Package Nude, Suitable for Shiping Specification Standard Configuration Trademark ORIEMAC Origin Jiangsu, China HS Code 84292090 Production Capacity 100 Sets/MonthProduct Description
New Changlin China Motor Grader 722H mini motor graderMain Technical Specification
1 Operating weight 16100kg
2 Blade length 4320mm
3 Blade height 545mm
4 Shovel Blade thickness 16mm
5 Max lifting height 450mm
6 Max grading depth 510mm
7 Min. turning radius 7300mm
8 Pivot angle frame +260
9 Max turning angle(front wheel) +490
10 Oscillating angle of front axle 320
11 Min ground clearance 430mm
12 Cut angle 29-77°
13 Traveling speed(Km/h),6 forward and 3 reverse
Overall Dimension
1 Length 9235mm
2 Width 2600mm
3 Height(To the top of the cab) 3370mm
4 Wheel base 6100mm
