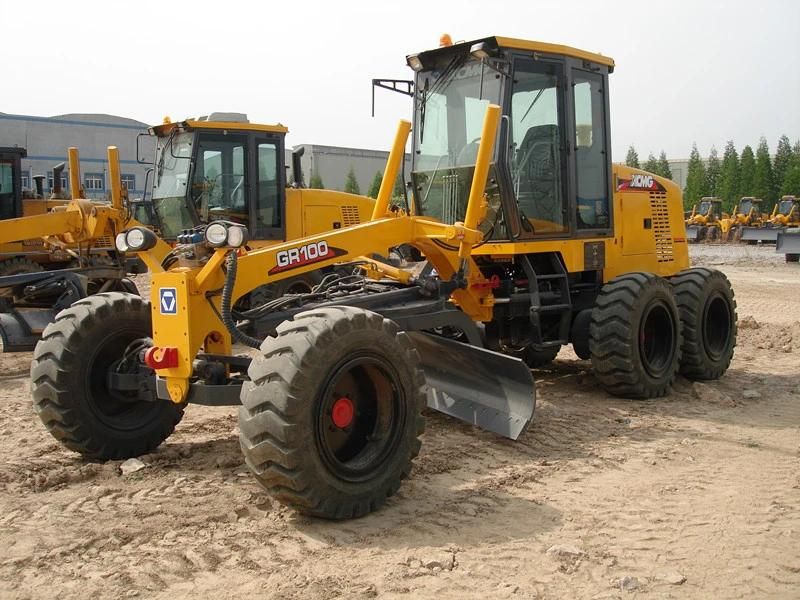

100HP Mini New Motor Grader (GR100)

Evangel Industrial (Shanghai) Co., Ltd.
  • Type：Grader
  • Object：Gravel Road
  • Moving Type：Mobile
  • Mixing Method：Intermittent Compulsory
  • Automatic Grade：Automatic
  • Product Capacity：40～400t,h

Base Info

  • Model NO.：GR100
  • Certification：ISO9001: 2000
  • Condition：New
  • Power：100HP
  • Model：Gr100
  • Transport Package：Seaworthy Packing
  • Specification：20days delivery
  • Trademark：EVANGEL
  • Origin：Jiangsu Province
  • Production Capacity：30sets,Month

Description

GR100Basic specificationEngine model4BT3.9Rated power/speed75/2400kw/rpmDimension(LxWxH)6880×2375×3150mmOperating weight(Standard)7000kgPerformance specificationTravelling speed ,forward5102039km/hTravelling speed ,reverse825km/hTractive force(f=0.75)41.6KNMax. gradeability20%Tire inflation pressure350KPaWorking hydraulic pressure16MPaTransmission pressure1.31.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box Frame articulation angle±27°Min. turning radius using articulation5.9mBiadeMaximum lift above ground300mmMaximum depth of cutting350mmMaximum blade position angle45°Blade cutting angle28°70°Circle reversing rotation120°Moldboard width X height3048×500mm100HP Mini New Motor Grader (GR100)
100HP Mini New Motor Grader (GR100)
100HP Mini New Motor Grader (GR100)
100HP Mini New Motor Grader (GR100)100HP Mini New Motor Grader (GR100)
