• Model NO.：XE150WB
• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Engine：Qsb4.5
• Power：104,2000kw,R,Min
• Color：Yellow
• Max.Torque/Engine：586n.M
• Displacement：4.5L
• Fuel Tank Capacity：250L
• Min.Ground Clearance：359mm
• Transport Package：Nude Packing
• Specification：6482*2552*3158mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. XE150WB Size Small-Scale Certification ISO9001: 2000 Condition New Engine Qsb4.5 Power 104/2000kw/R/Min Color Yellow Max.Torque/Engine 586n.M Displacement 4.5L Fuel Tank Capacity 250L Min.Ground Clearance 359mm Transport Package Nude Packing Specification 6482*2552*3158mm Trademark EVANGEL Origin China Production Capacity 200units/Month

Product Description

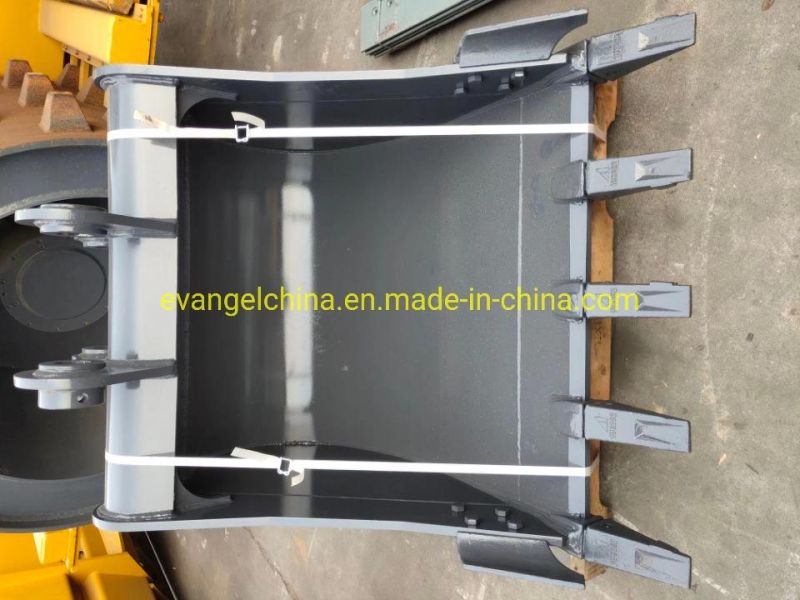

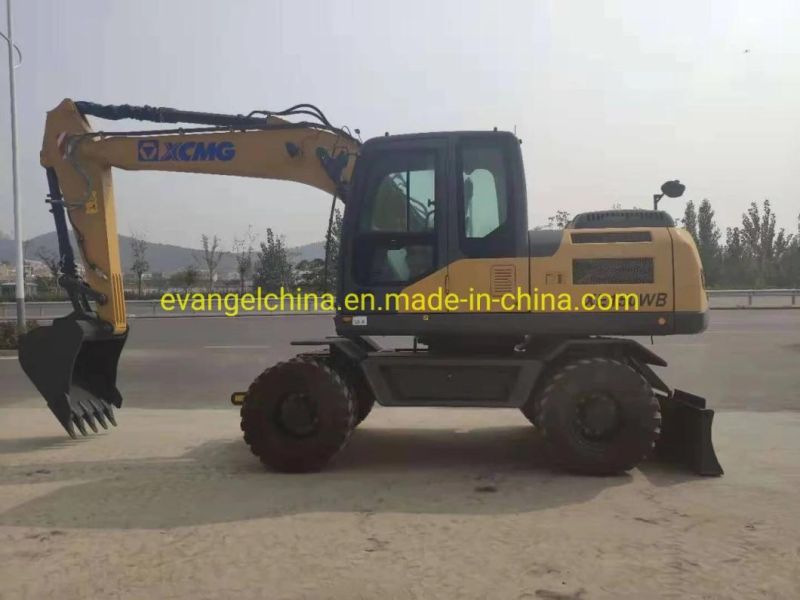

Wheel excavator XE150WB with standard 0.58m3 bucket

Main parameters:
Bucket capacity:0.58CBM
Max digging height:8190mm

Main configuration
Cummins QSB4.5 engine  104kw
Hydraulic system

XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements.

As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards,

XE150WB plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.

This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of tcuket	KN	60
Digging capacity of tcuket rod	KN	65
Min.turning radius	mm	6500
Travel speed	Km/h
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112
