• Model NO.：Gr3505
• Weight：30000kg
• Engine Model：Qsm 11
• Working System Pressure：25MPa
• Maximum Lift Height：450mm
• Maximum Cutting Depth：500mm
• Minimum Turning Radius：8.9m
• Transport Package：RO-RO,Bulk,Container
• Specification：11250X3180X3820mm
• Origin：China
• HS Code：84292090
• Production Capacity：1000 Set Per Month

ItemGR3505Basic parametersEngine modelQSM 11Rated power/speed261kW/2100rpmOverall dimension (standard)11250X3180X3820Total weight (standard)30000kgTire specification23.5R25Ground clearance (front axle)500mmTread2580mmSpace of front and rear axles7200mmSpace of middle and rear wheels1960mmPerformance parametersForward velocity5,8.5,13,20,30,45km/hReverse speed5,13,30km/hTractive effort f=0.75165kNMaximum gradeability25%Tire inflation pressure320kPaWorking system pressure25MPaWorking parametersMaximum steering angle of front wheel±45°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±15°Maximum steering angle of frame±22°Minimum turning radius8.9mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle65°Cutting angle28°-70°Angle of revolution360°Length & chord height4877x787mmOil filling amountCoolant50LFuel tank550LEngine37LTransmission38LBalancing box186LDrive axle106LHydraulic oil310L

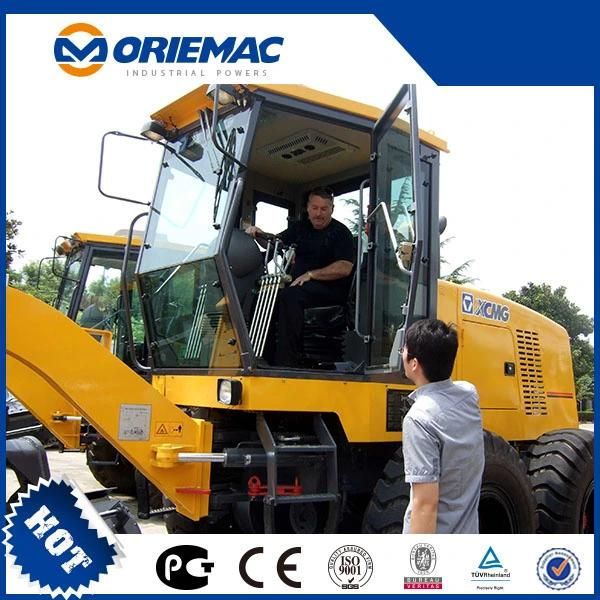

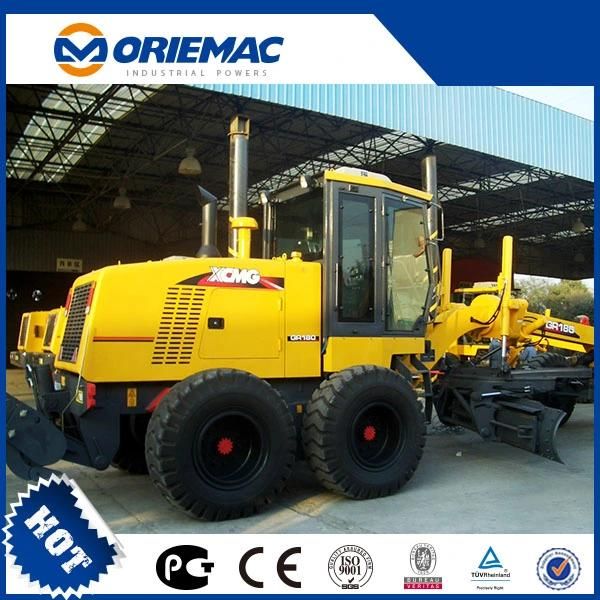

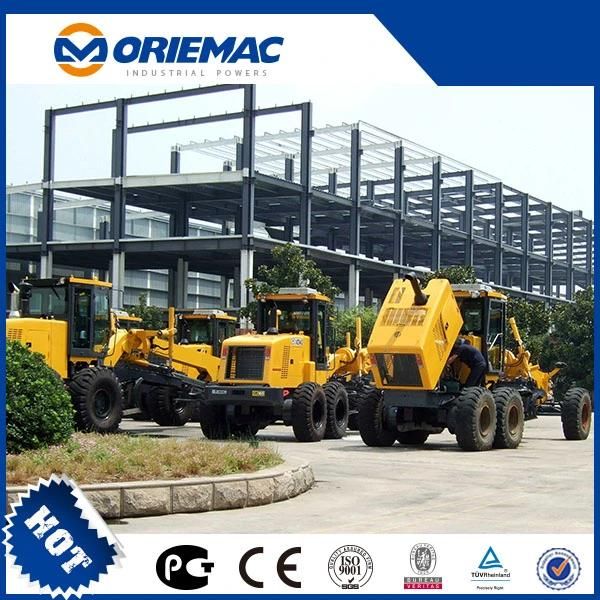

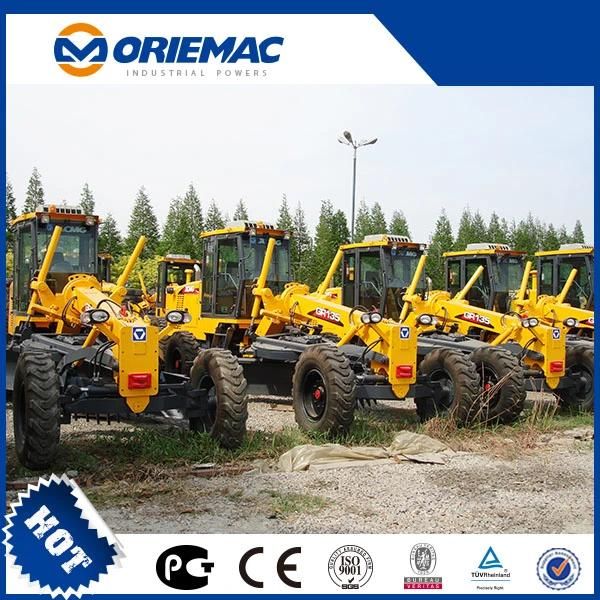

Product Show



Company Information
