• Model NO.：XP263S
• Travel Speed：30cm,s
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Ground Pressure：200-470kpa
• Tire Specifications：13,80-2II
• Minimum Ground Clearance：300mm
• Tire Overlao：65mm
• Fuel Consumption：≤235g,Kw.H
• Transport Package：Suitable for Ocean Shipment
• Specification：4925*2530*3370mm
• Origin：China
• HS Code：84294011
• Production Capacity：1000 Set Per Month

Basic Info.

Model NO. XP263S Travel Speed 30cm/s Certification CS, ISO 9001:2000, ISO 9001:2008 Condition New Ground Pressure 200-470kpa Tire Specifications 13/80-2II Minimum Ground Clearance 300mm Tire Overlao 65mm Fuel Consumption ≤235g/Kw.H Transport Package Suitable for Ocean Shipment Specification 4925*2530*3370mm Origin China HS Code 84294011 Production Capacity 1000 Set Per Month

Product Description

Official XP263S Tire Road Roller


Product Description

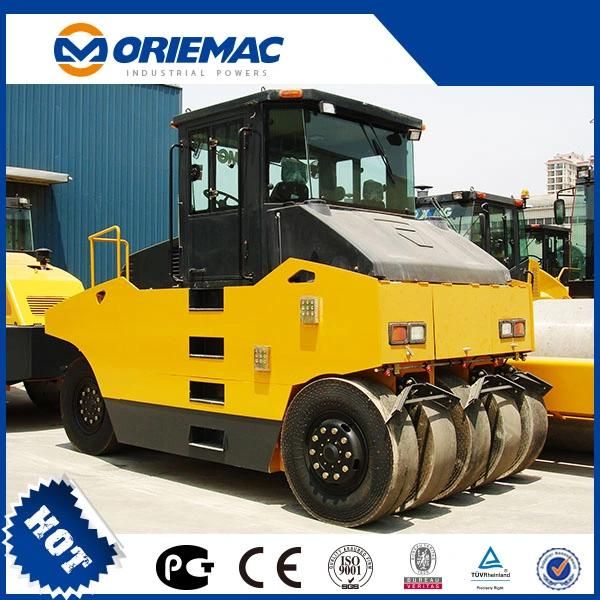

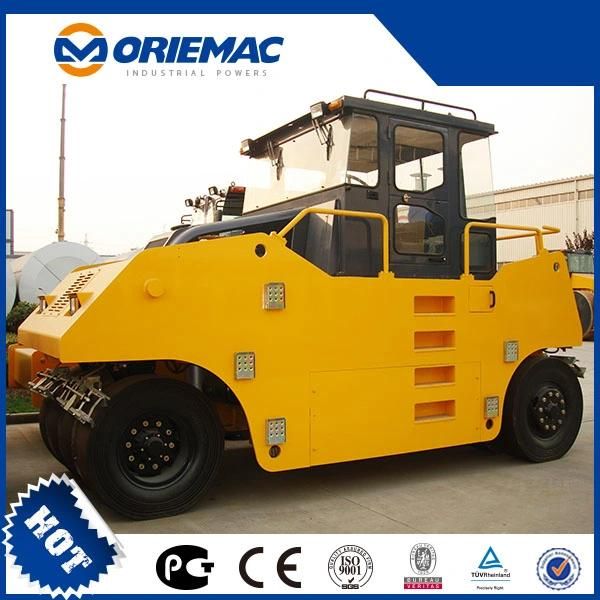

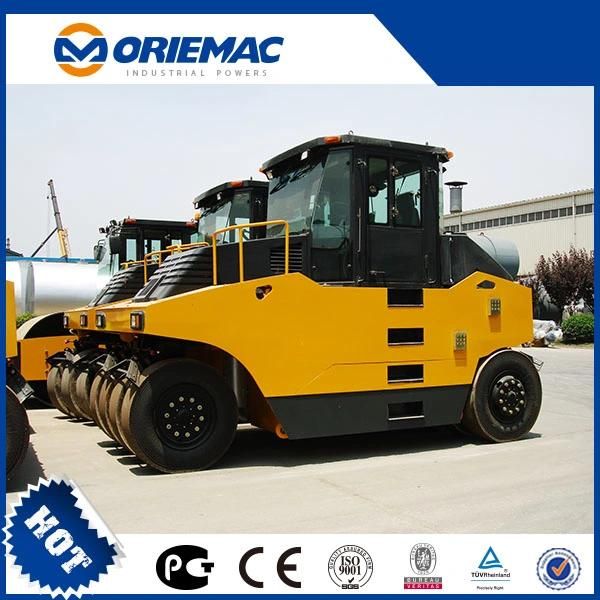

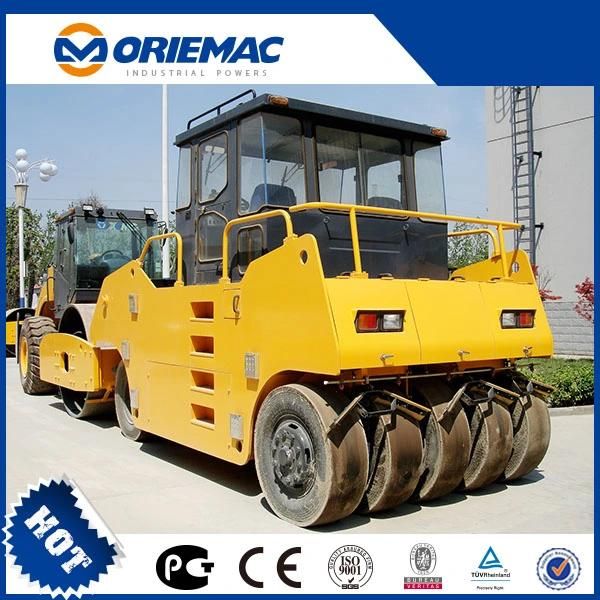

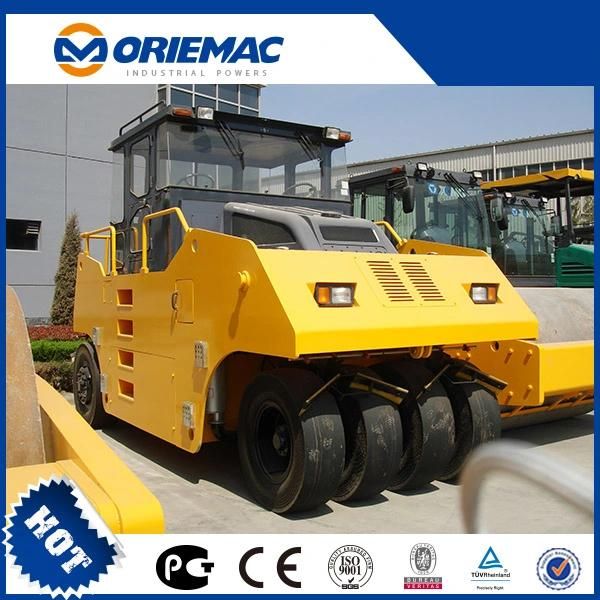

XP263S Tire Roller

The XP263S tire roller compactor is used as a working device for compacting ply materials in pneumatic tires. It is mainly used for compaction operations such as asphalt pavement, foundation layer, sub-base layer, dam and filling works, etc. It is a high-grade highway. Ideal compaction equipment for airports, ports, embankments and industrial construction sites.

Parameter



Item	Specification	Unit
Engine model	SC7H160.2G3
Rated power	118	kW
Fuel consumption	≤235	g/kw.h
Dimension(LxWxH)	4925x2530x3370	mm
Total  weight(Standard)	15000	kg
Travel speed	0-13	km/h
Max. gradeability	20	%
Ground pressure	200-470	kPa
Maximum working weight	15000	kg
Counterweight water	650	kg
Counterweight mass	10550	kg
Min. turning radius	7620	mm
Min. ground clearance	300	mm
Compaction width	2360	mm
Tire overlao	65	mm
Tire specifications	13/80-20
