• Model NO.：XS163J
• Travel Speed：30cm,s
• Centrifugal Force：14KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Color：Yellow
• Engine Power：115W
• Operating Weight：16t
• Gradeability：30%
• Vibration Frequency：28Hz
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XS163J Travel Speed 30cm/s Centrifugal Force 14KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Color Yellow Engine Power 115W Operating Weight 16t Gradeability 30% Vibration Frequency 28Hz Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/Month

Product Description

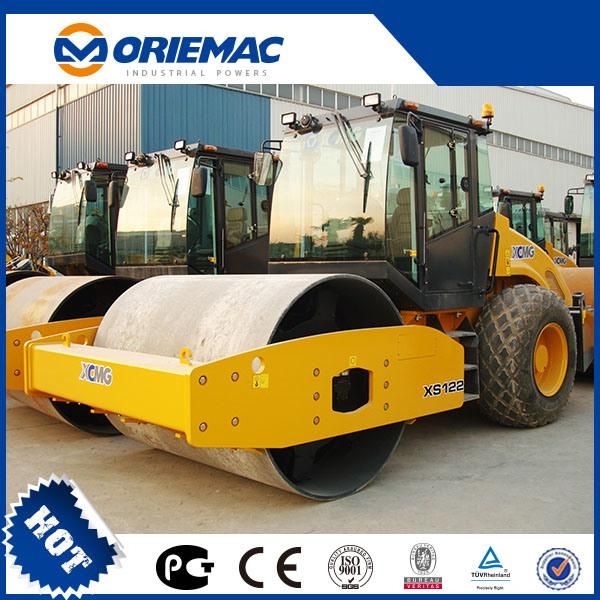

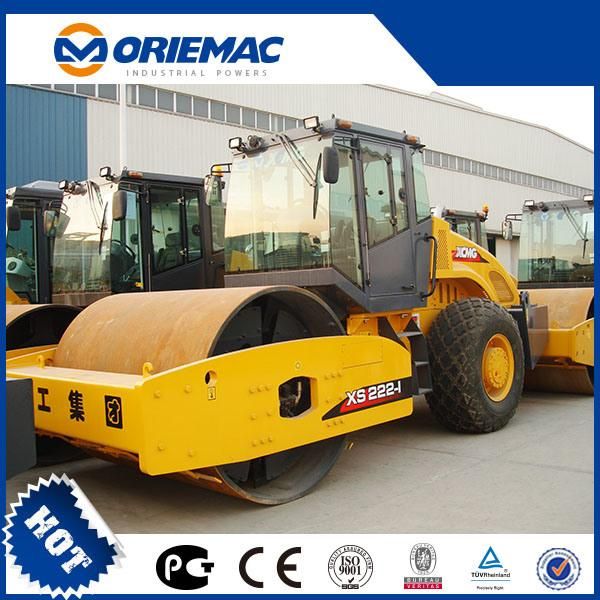

ORIEMAC Road Machinery 16 Ton Mechanical Vibratory Single Drum Roller Compactor XS163J

Specification:
Operating weight: 16t
Engine model: SC8D156.2G2B1
Engine power: 115w

Feature:
XS142J/XS162J/XS182J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Optional configuration

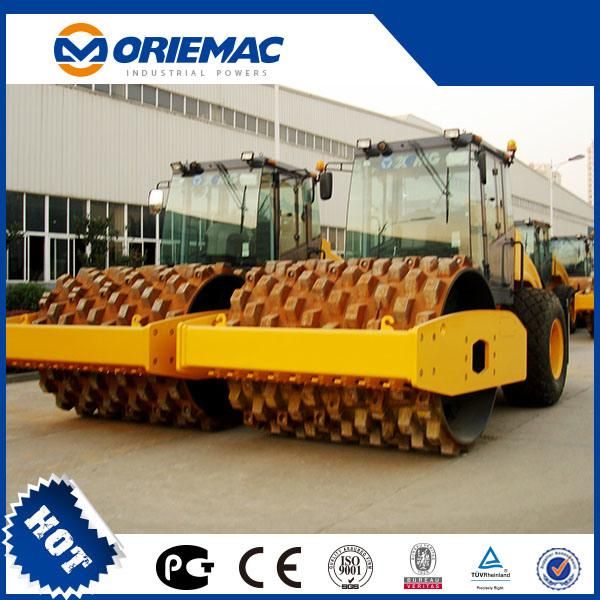

The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Parameter:

Model	Unit	XS162J
Operating weight	kg	16000
Weight on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h
Speed I		2.54
Speed II		4.97
Speed III		10.51
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145
Engine model		SC8D156.2G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	115@1800r/min
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
