Xiniu New 9ton Wheel-Crawler Excavator X9 with Ce ISO
Evangel Industrial (Shanghai) Co., Ltd.- Type：Wheel-Crawler
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：X9
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Engine：Yanmar(4tnv94L-Bvbkc)
- Rated Power：33.7kw
- No. of Cylinders/Type：4 Cylinders in Line
- Bore and Stroke：94*105
- Voltage of Start Motor：12V
- Starting Type：Electric
- Hydraulic Main Pump：Germany Rexroth
- Hydraulic System Pressure：25MPa
- Transport Package：Nude Packing
- Specification：6570x2120x2982mm
- Trademark：Xiniu
- Origin：China
- Production Capacity：200units,Month
Description
Basic Info.
Model NO. X9 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Yanmar(4tnv94L-Bvbkc) Rated Power 33.7kw No. of Cylinders/Type 4 Cylinders in Line Bore and Stroke 94*105 Voltage of Start Motor 12V Starting Type Electric Hydraulic Main Pump Germany Rexroth Hydraulic System Pressure 25MPa Transport Package Nude Packing Specification 6570x2120x2982mm Trademark Xiniu Origin China Production Capacity 200units/MonthProduct Description

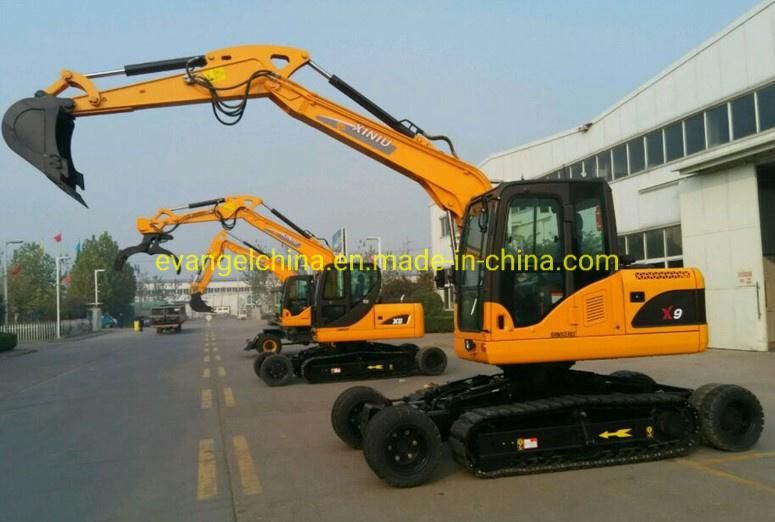

Xiniu new 9ton wheel-crawler excavator X9 with CE ISOWHEEL-CRAWLER EXCAVATOR X9
WITH CE ISO CERTIFICATE
Wheel-Crawler excavator is totally invented by our company, it is our patent product; the transportation cost can be highly reduced with this design. High transportation efficiency, it is convenient to operate and easy to switch the crawler and wheels.
9ton, GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.
SPECIFICATION:
| Model | X9 |
| Brand | Xiniu |
| Operating Weight | 9 t |
| Overall dimension | 6570x2120x2982 mm |
| Bucket capacity | 0.32 |
| Engine type | YANMAR(4TNV94L-BVBKC) |
| Rated power/speed | 33.7KW |
| No. of cylinders/type | 4 cylinders in line |
| Bore and stroke | 94*105 |
| Voltage of start motor | 12V |
| Starting type | ELECTRIC |
| Hydraulic main pump | GERMANY REXROTH |
| Hydraulic system pressure | 25MPa |
| Hydraulic system flow | 132L/Min |
| Valve | Germany REXROTH |
| Swing motor | USA EATON |
| Max swing speed | 12r/min |
| Travel motor | USA EATON |
| Max travel speed | 30km/h |
| Axle and Transmission | YTO |
| Gear | Forward 1 2 3 4 ; Reverse 1 2 |
| Bucket Digging Force | 56Kn |
| Arm Digging Force | 36Kn |
| Grade ability | 35 degree |
| Working fuel consumption | 6.10L/h |
| Diesel oil tank capacity | 150L |
| Engine oil tank capacity | 12L |
| Hydraulic oil tank capacity | 175L |
| Cooling fluid tank capacity | 18L |
| Shipping Length | 6570mm |
| Shipping Height | 2982mm |
| Overall Width | 2120mm |
| Boom length | 3600mm |
| Arm length | 2000mm |
| Radius,Swing Center to Rear End | / |
| Min swing radius | 2617mm |
| Tyre Type | 28x9-15 |
| Wheelbase | 3500mm |
| Wheel Tread | 2050mm |
| Steering Width | 2150mm |
| Ground clearance | 300mm |
| Blade height | / |
| Blade Dimension | / |
| Overall width with outrigger extended | 2890mm |
| Drive Method 2WD/4WD | Wheel (Hydraulic 2WD) / Crawler (Hydraulic) |
| light | All LED lights |
| Max Digging Height | 7130mm |
| Max Dumping Height | 5220mm |
| Max Digging Depth | 3772mm |
| Max Digging Radius | 6880mm |
| Standard machine with A/C | YES |

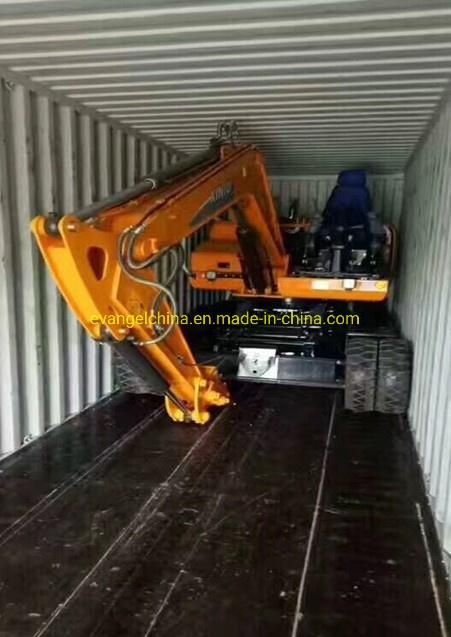

| Packing way | one 40ft load two units |
| Passed certificates | CE ISO |
| Can add accessories | hammer, auger, quick hitch, grader, tilt bucket, narrow bucket, |
