240HP 17000kg Large Motor Grader Gr2403

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：ISO
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic - Mechanical
  • Walking Mode：Wheeled
  • Type：Large Grader

Base Info

  • Model NO.：GR2403
  • Engine：Qsb6.7
  • Blade：3965X610mm
  • Tire：17.5-25
  • Ground Clearance (Front Axle)：430mm
  • Tread：2156mm
  • Minimum Turning Radius：7.3m
  • Rated Power/Speed：178,2000kw,Rpm
  • Transport Package：Nude Packing
  • Specification：8970x2625x3420mm
  • Trademark：EVANGEL
  • Origin：China
  • Production Capacity：200units,Month

Description

DescriptionUnitParameter valueEngine model QSB6.7Rated power/speedkW/rpm178/2000Overall dimension (standard) 8970x2625x3420Total weight (standard)kg17000Tire specification 17.5-25Ground clearance (front axle)mm430Treadmm2156Space of front and rear axlesmm6219Space of middle and rear wheelsmm1538Forward velocitykm/h5/8/11/19/23/38Reverse speedkm/h2005-11-23Tractive effort f=0.75kN85Maximum gradeability%≥25Tire inflation pressurekPa260Working system pressureMPa20Transmission pressureMPa1.3-1.8Maximum steering angle of front wheel ±48°Maximum slant angle of front wheel ±17°Maximum oscillating angle of front axle ±15°Maximum oscillating angle of equilibrium box Front15°,Rear15°Maximum steering angle of frame ±27°Minimum turning radiusm7.3Scrape knifeMaximum lift height mm400Maximum cutting depth mm500Maximum tilt angle   90°Cutting angle   28°-70°Angle of revolution   360°Length & chord heightmm3965x610CoolantL50Fuel tankL280EngineL24TransmissionL38Hydraulic oilL110Drive axleL28Balancing boxL46240HP 17000kg Large Motor Grader Gr2403

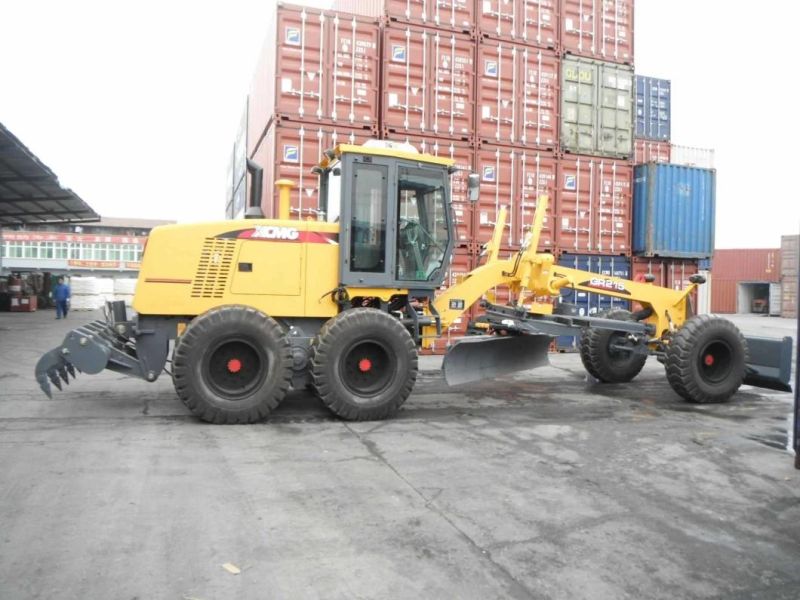

240HP 17000kg Large Motor Grader Gr2403

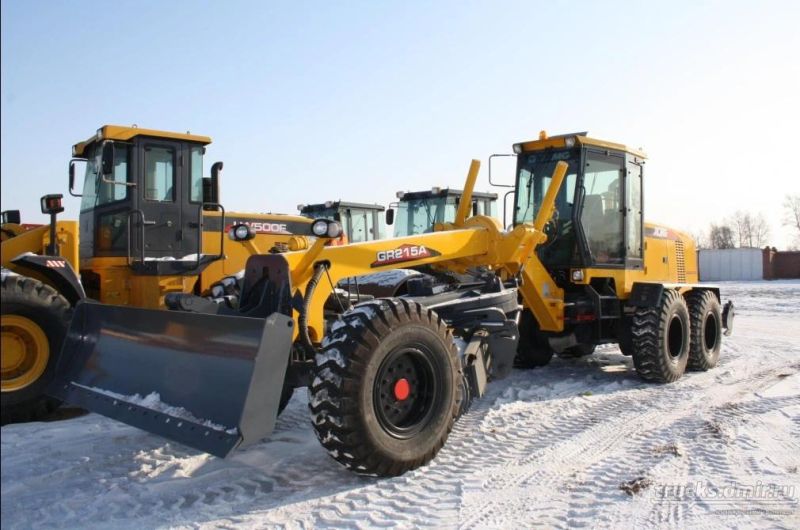

240HP 17000kg Large Motor Grader Gr2403

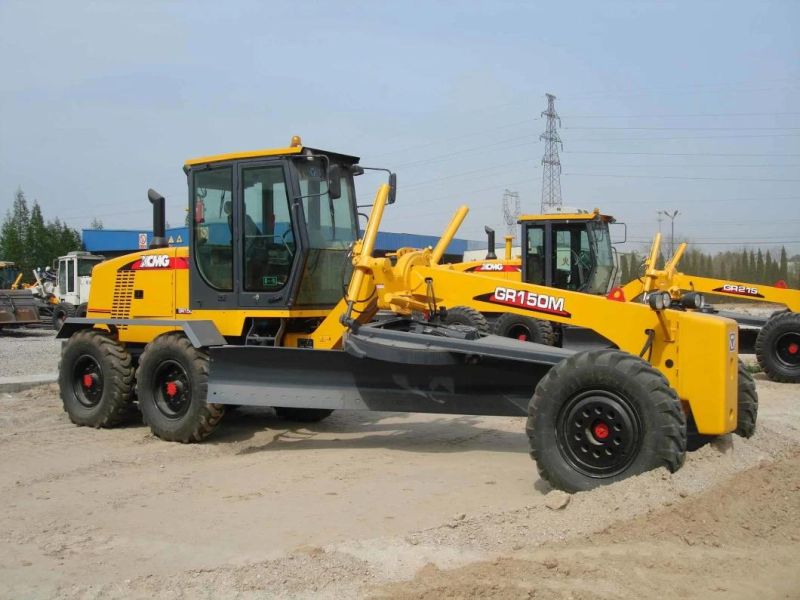

240HP 17000kg Large Motor Grader Gr2403

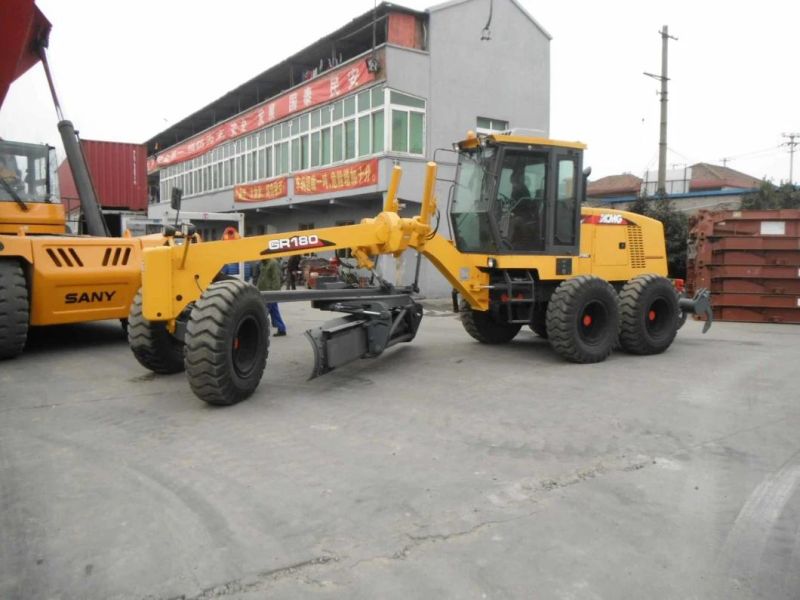

240HP 17000kg Large Motor Grader Gr2403

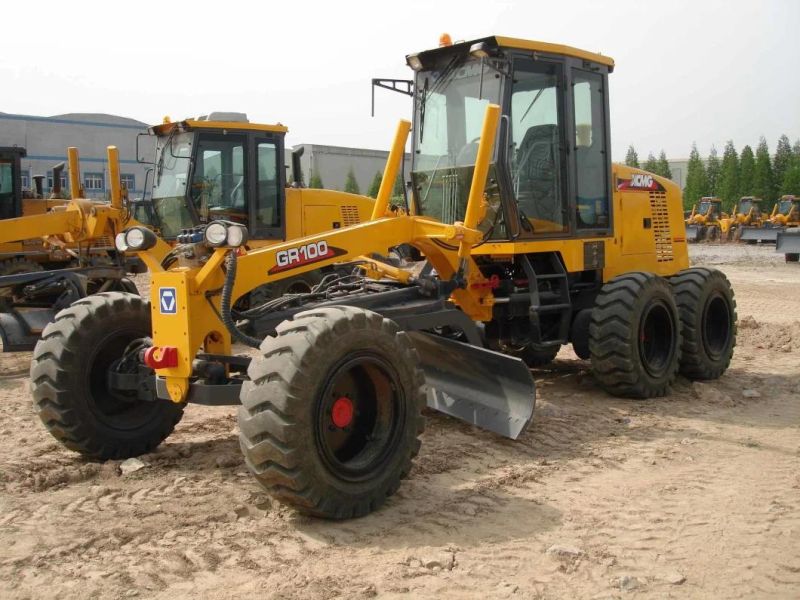

240HP 17000kg Large Motor Grader Gr2403

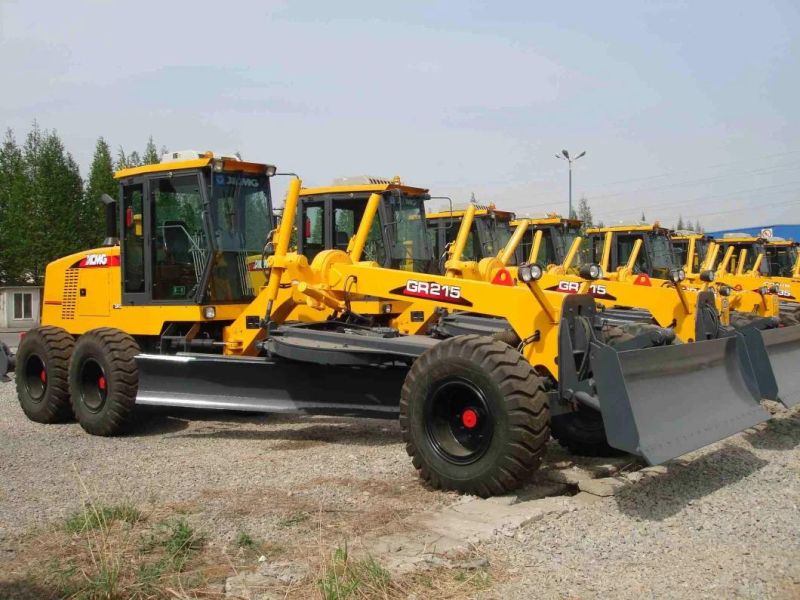

240HP 17000kg Large Motor Grader Gr2403
