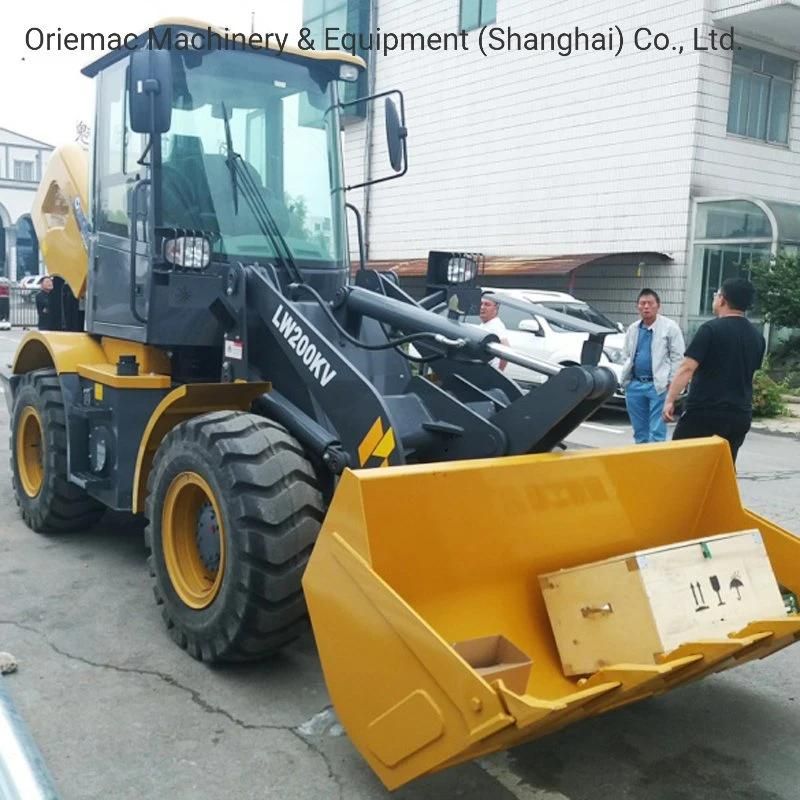

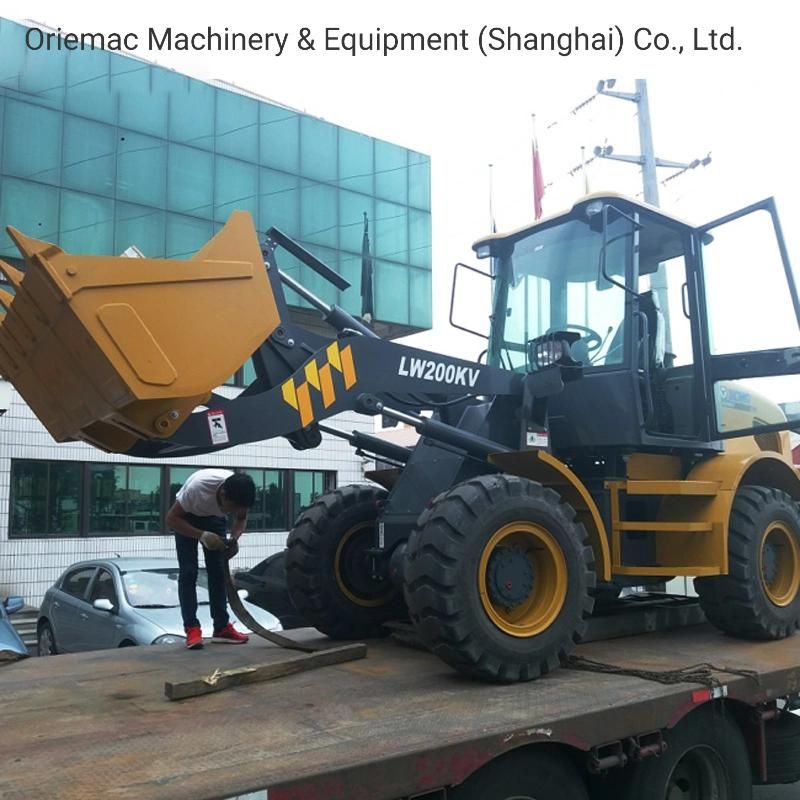

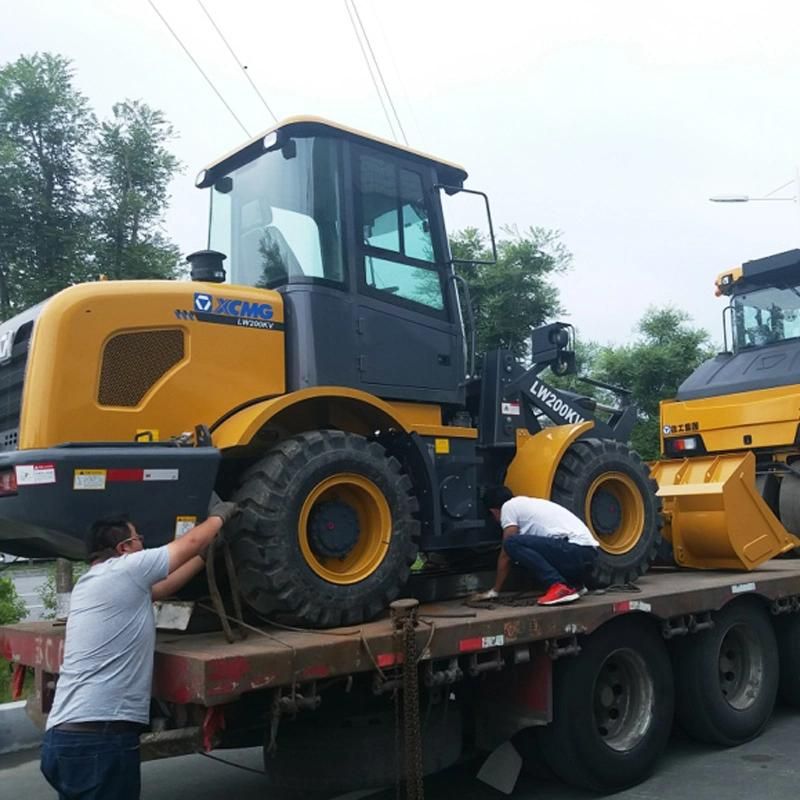

Oriemac 2ton Mini Wheel Loader Lw200kv Small Loader for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：LW200KV
- Type：Large Loader
- Power(W)：66.2kw
- Bucket Capacity：1.1m3
- Loading Weight：2000kg
- Color：Yellow
- Engine：Weichai
- Wheel Base：2300mm
- Dump Clearance at Maximum Lift：2580mm
- Reach at Maximum Lift：960mm
- Tread：1490mm
- Max.Breakout Force：56kn
- Max.Horse Power：45kn
- Transport Package：Nude
- Specification：6045X2060X2950mm
- Trademark：oriemac
- Origin：China
- Production Capacity：100unit,Month
Description
SPECIFICATIONS FOR 2 TON Construction Mini Loader LW200KVItem Parameters Unit Rated operating load 2000 kg Bucket capacity 1 m³ Machine weight 6400 kg Dump clearance at maximum lift 2580 mm Reach at maximum lift 960 mm Wheel base 2300 mm Tread 1490 mm Max.breakout force 56 kN Max.horse power 45 kN Hydraulic cycle time-raise 5 s Total hydraulic cycle time 9 s Min. circle radius over outside bucket 5100 mm Min. turning radius over tyres 4450 mm Articulation angle 35 ° Gradeability 28 ° Tyre size 16/70-20 Overall machine dimension L×W×H 5950*1960*2550 mm Engine Model LR4B32U-G73X3QR-U3 Rated Power/Speed 66.2/2400 Kw/rpm Travel Speed 10 I-gear(F/R) Kw/h 28 II-gear(F/R) Kw/h
