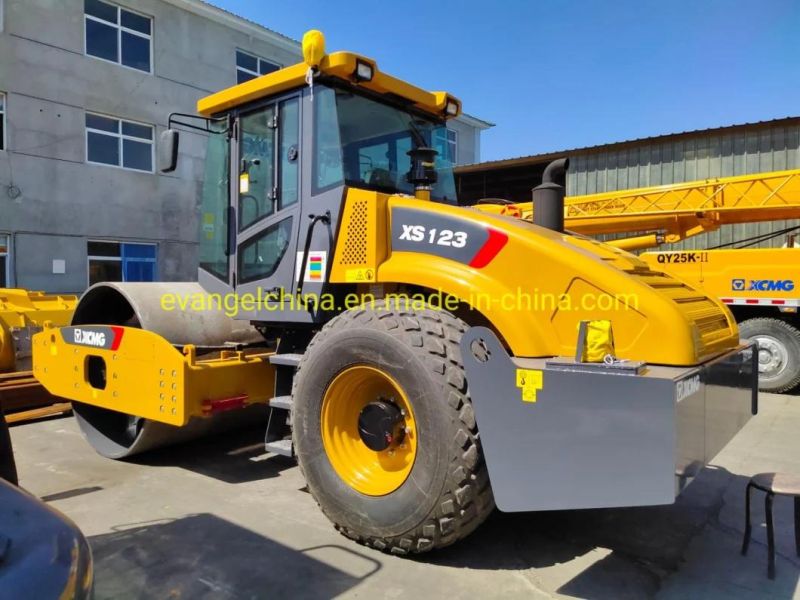

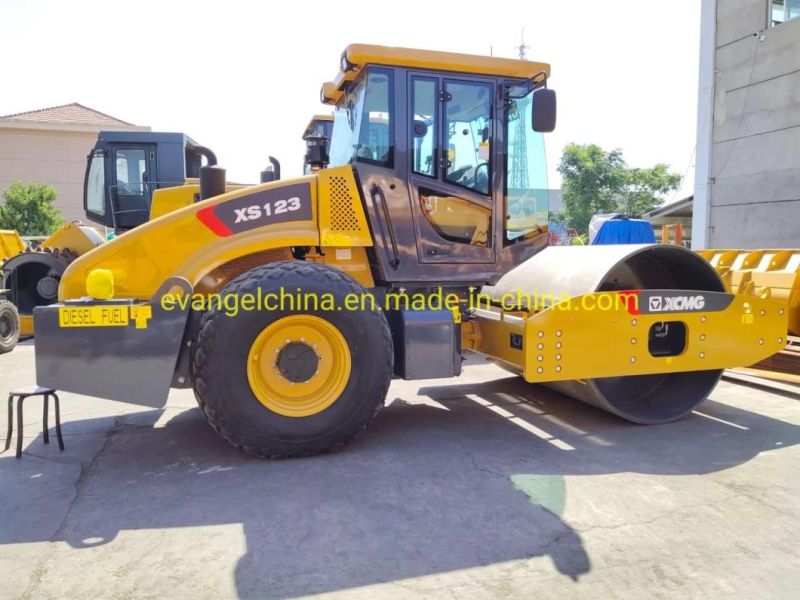

12ton Hydraulic Double Drive Single Drum Vibratory Road Roller Xs123
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：XS123
- Travel Speed：35cm,s
- Centrifugal Force：27KN
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Engine：Qsb4.5
- Color：Yellow
- Front Axle Load：6700kgs
- Rear Axle Load：5300kgs
- Vibration Frequency：30,35Hz
- Dimension of Vibrating Drum：1300*2130mm
- Min. Turning Radius(Outside)：6800mm
- Transport Package：Container
- Specification：5970x2300x3150mm
- Trademark：EVANGEL
- Origin：China
- Production Capacity：200units,Month
Description
Basic Info.

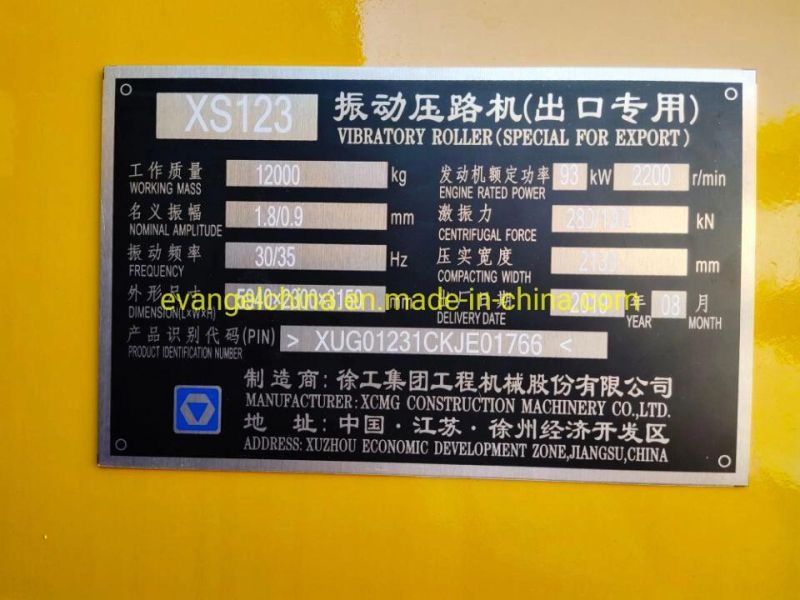

Model NO. XS123 Travel Speed 35cm/s Centrifugal Force 27KN Certification ISO 9001:2000, ISO 9001:2008 Condition New Engine Qsb4.5 Color Yellow Front Axle Load 6700kgs Rear Axle Load 5300kgs Vibration Frequency 30/35Hz Dimension of Vibrating Drum 1300*2130mm Min. Turning Radius(Outside) 6800mm Transport Package Container Specification 5970x2300x3150mm Trademark EVANGEL Origin China Production Capacity 200units/MonthProduct Description

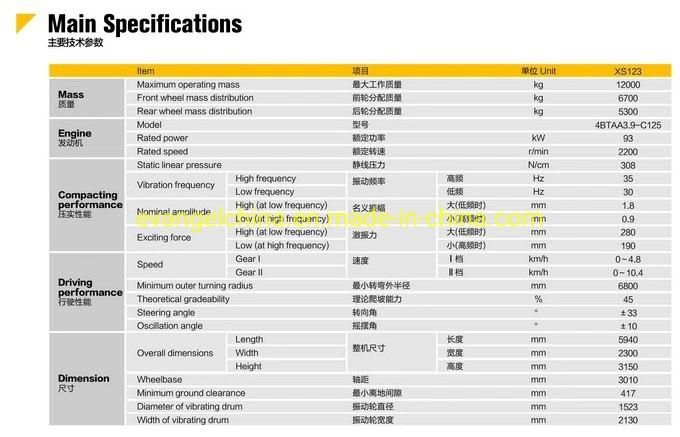

12ton hydraulic double drive single drum vibratory road roller XS123| Item | Unit | Parameters |
| Operating weight | kg (lbs) | 12000 (26667) |
| Weight at Drum | kg (lbs) | 6700 (14889) |
| Weight at axle | kg (lbs) | 5300 (11778) |
| Static linear load | kg/cm (pli) | 31.5 (175.8) |
| Driving speed ( gear I) | km/h (mph) | 0-5 (0 -3.1) |
| Driving speed ( gear II) | km/h (mph) | 0-10.8 (0-6.75) |
| Theoretical gradeability | % | 45 |
| Minimum turning radius | mm (in) | 6800 (267.9) |
| Tire specification | 23.1-26-12G23TL | |
| ply rating | 12 | |
| Air pressure | kPa | 150-170 |
| Engine manufacturer | Cummins | |
| Type | QSB4.5 | |
| Emission | EURO III | |
| Rated power | kW (hp) | 97 (130) |
| Rated speed | rpm | 2300 |
| Voltage | V | 24 |
| Vibrational frequency | Hz (vpm) | 30/35 (1800/2100) |
| Nominal amplitude | Mm (in) | 1.8/0.9(0.071/0.035) |
| Exciting force | kN (lbs) | 280/190(62944/42712) |
| Engine oil | L (gal) | 16.3(4.3) |
| Fuel tank | L (gal) | 240(63.4) |
| Hydraulic tank capacity | L (gal) | 240(63.4) |
| Coolant | L (gal) | 20(5.3) |
| Front drum chamber | L (gal) | 40(10.6) |
| Front drum reducer | L (gal) | 27(0.7) |
