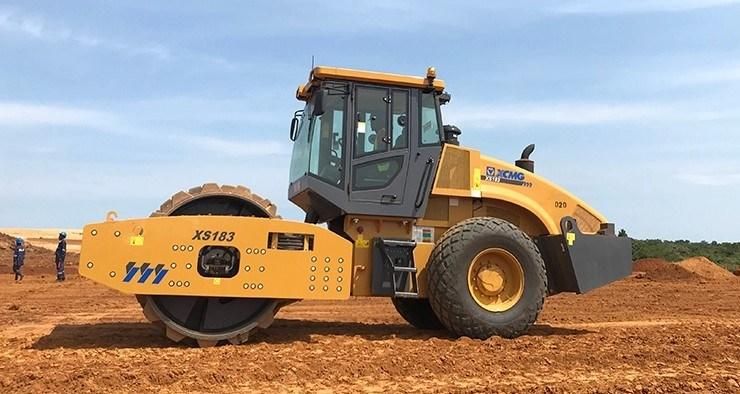

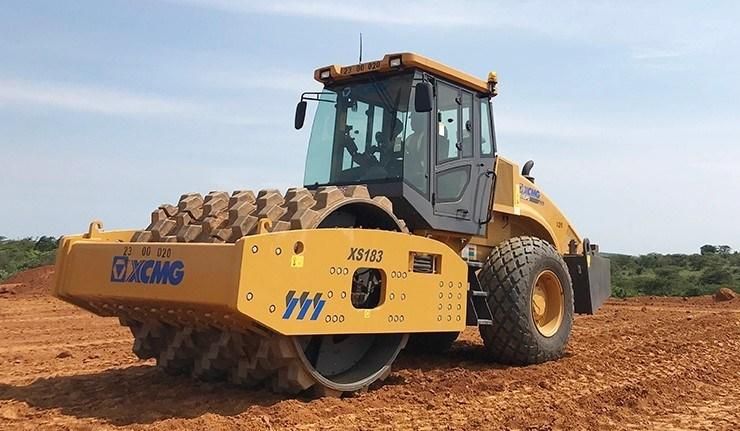

18ton Hydraulic Double Drive Single Drum Road Roller Xs183

Evangel Industrial (Shanghai) Co., Ltd.
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Slot Grind
  • Compaction Depth：35cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：XS183
  • Travel Speed：35cm,s
  • Centrifugal Force：30.5KN
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Color：Yellow
  • Operating Mass：18000kgs
  • Load Applied on Front Drum：11500kgs
  • Load Applied on Rear Wheels：6500kgs
  • Compacting Width：2130mm
  • Transport Package：Nude Packing
  • Specification：6423*2390*3200mm
  • Trademark：EVANGEL
  • Origin：China
  • Production Capacity：200units,Month

Description

TypeUnitXS183Operating masskg18000Load applied on front drumkg11500Load applied on rear wheelskg6500Compacting widthmm2130Static linear loadN/cm529Vibration frequency(Low/High)Hz28/33Nominal amplitude(High/Low)mm1.86/0.93Exiting force(High/Low)KN340/240Travel speedkm/h0~10Steering angle°±33Swing angle°±10Theoretical  agreeability%50Min. turning external radiusmm6500Engine model DEUTZ BF6M2012CEngine powerkw136Rated rotating speedr/min2200Engine oil consumptiong/kW.h222Hydraulic oil tank capacityL240Fuel tank capacityL24018ton Hydraulic Double Drive Single Drum Road Roller Xs183
