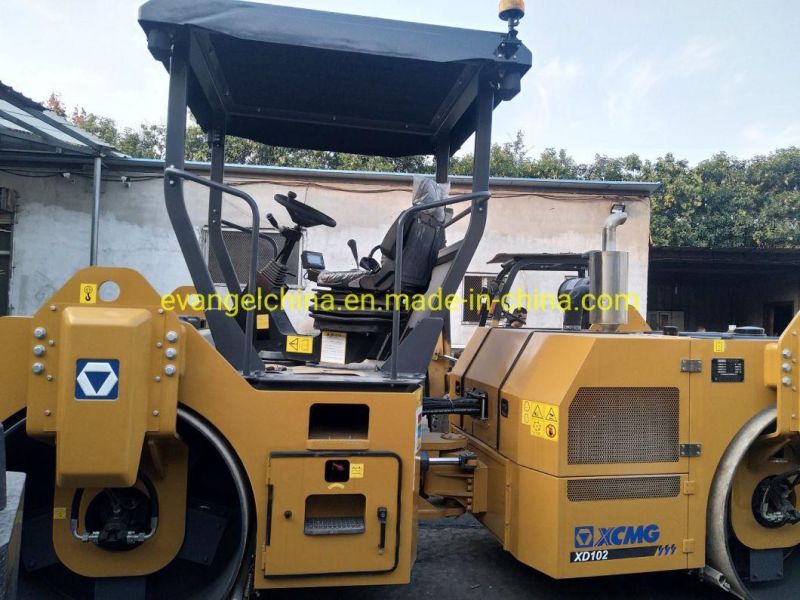

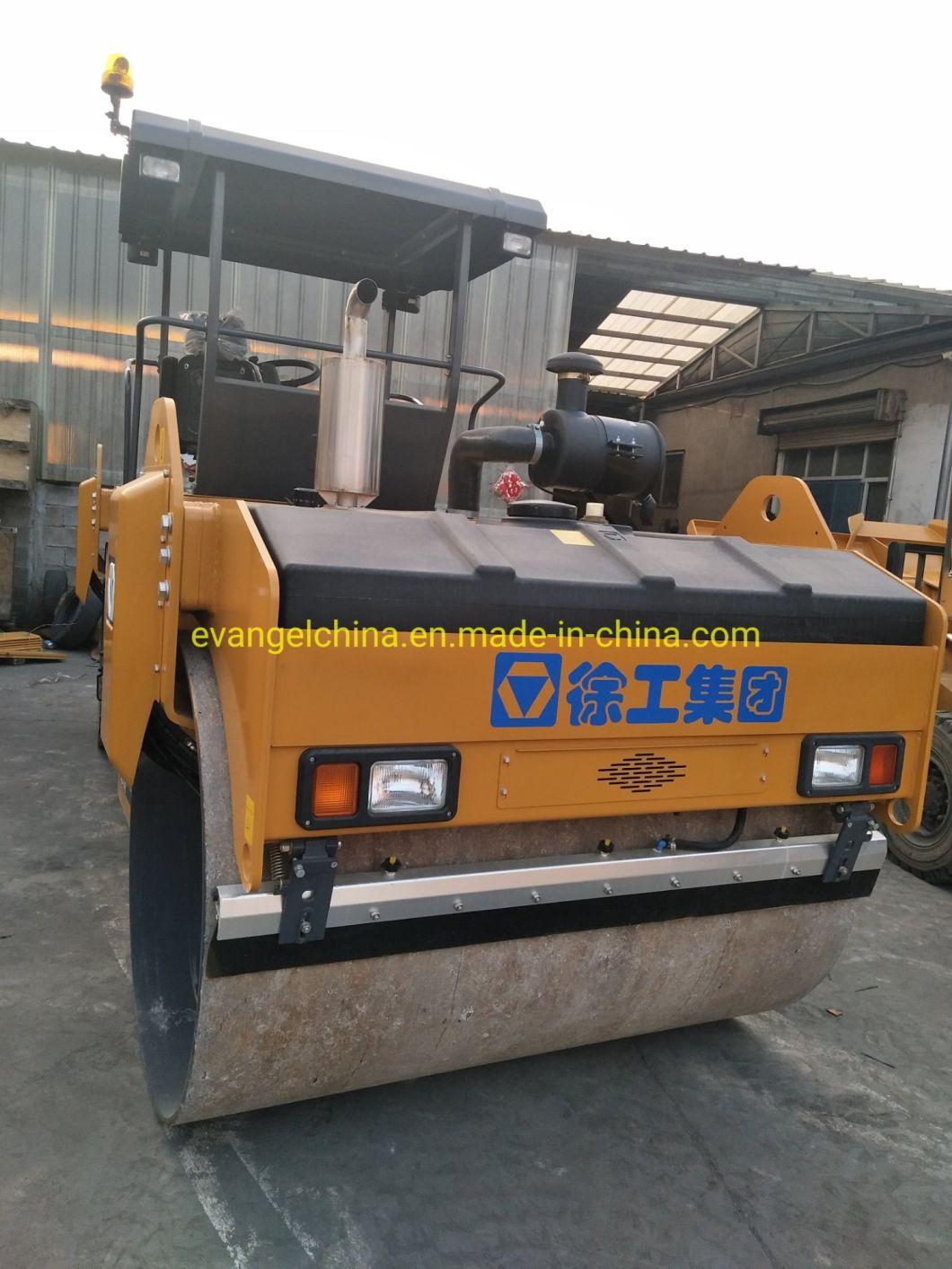

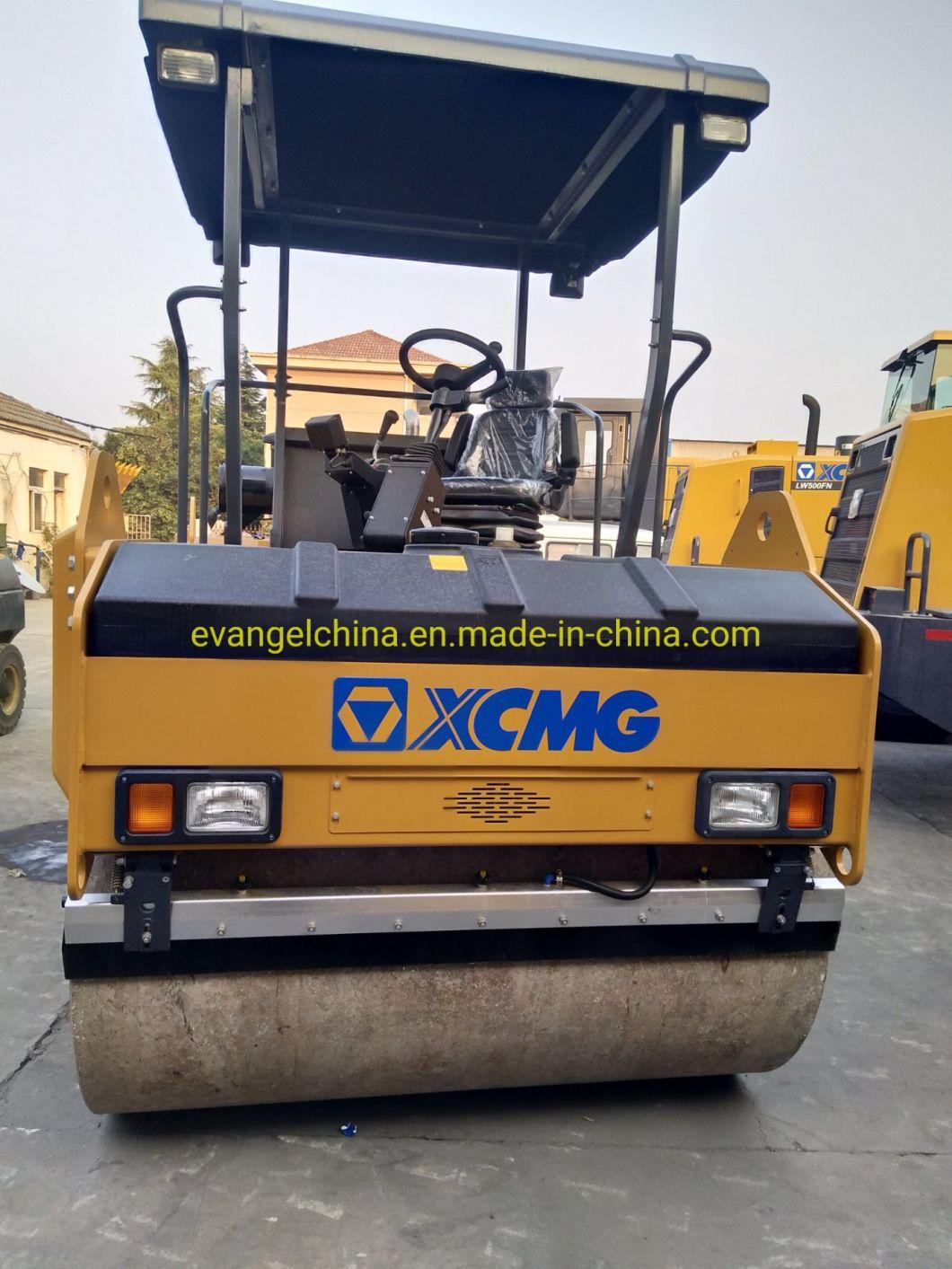

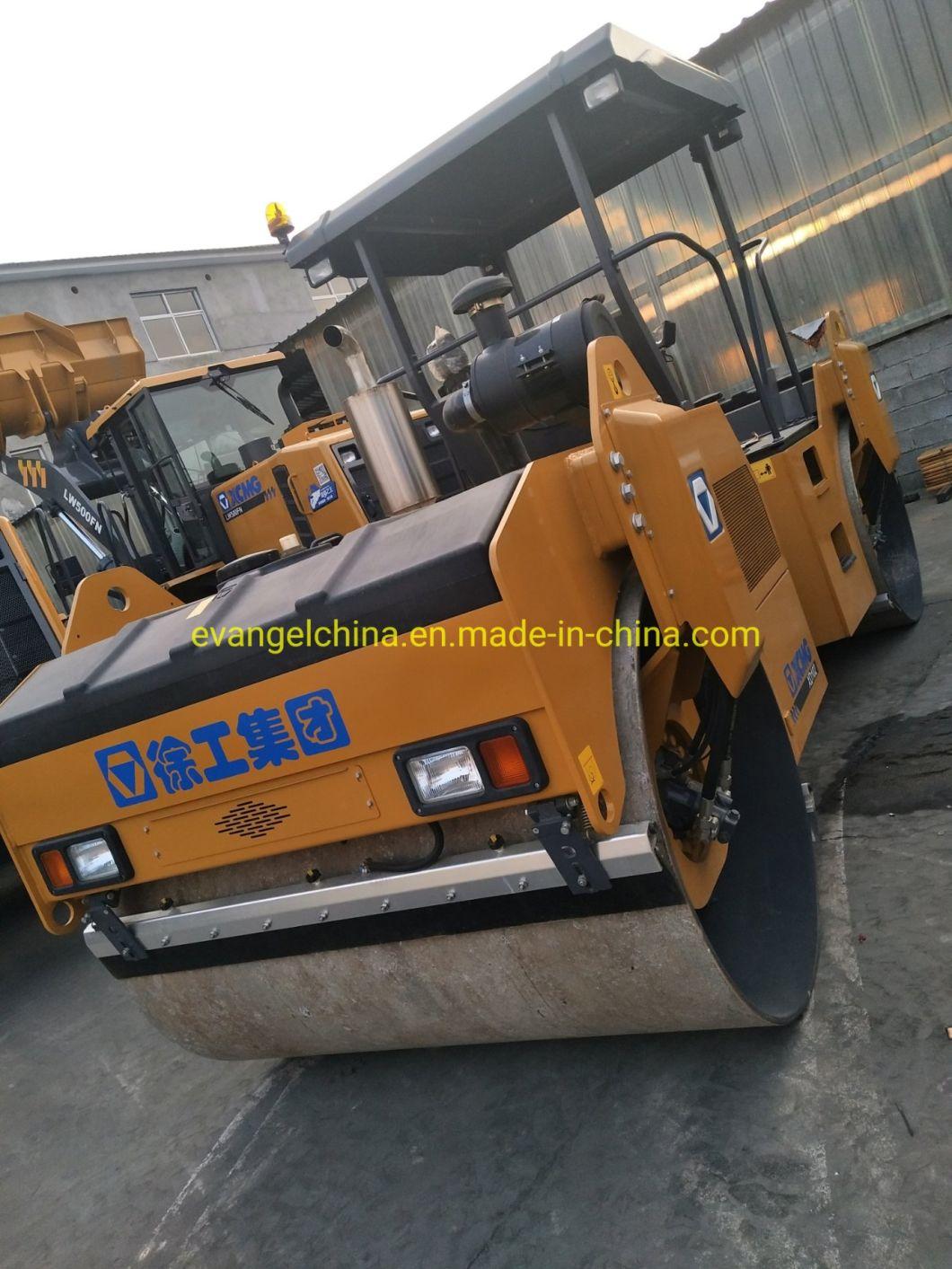

10ton Double Drum Vibratory Road Roller Xd103
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：XD103
- Travel Speed：35cm,s
- Centrifugal Force：27KN
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Color：Yellow
- Load on Front Drum：5000kgs
- Rear Wheel Weight：5000kgs
- Engine：Deu-Tz Bf4m2012
- Vibrating Drum Size：1150*1680mm
- Min Turning Radius：5780mm
- Transport Package：Nude Packing
- Specification：4890*1970*3070mm
- Trademark：EVANGEL
- Origin：China
- Production Capacity：200units,Month
Description
No
Model
Brand
QTY
1
Engine
DEUTZ
BF4M2012
74.9kW/2300rpm
1
2
Pump
Rexroth
A10VG45
45ml/r
1
3
Pump
Rexroth
A4VG71
71ml/r
1
4
Motor
Rexroth
A2FM32
32ml/r
2
5
Motor
Rexroth
A2FE56
56ml/r
2
6
Reducer
Rexroth
GFT17T2B32
i=32.14
2
7
Charge pump
Sauer
SNP2NN/025
25ml/r
1
Model
XD82
XD102
Weight
Operation weight(kg)
8500
10000
Front wheel weight(kg)
4250
5000
Rear wheel weight(kg)
4250
5000
Speed(km/h)
0-9.5
Gradeability(%)
30
Min turning radius mm(inner/outer)
4100/5780
Swing angle
±8°
Steering angle
±38°
Static linear load(N/cm)
248/248
292/292
Nominal amplitude(mm)
0.35/0.70
0.40/0.80
Vibration frequency(Hz)
48/45
Exciting force (high frequency / low frequency)(kN)
40/80
60/120
Vibrating drum size(mm)
1150×1680
Engine
Model
DEUTZ BF4M2012
Type
Inline four-cylinder pressurized water-cooled type
Rated power(kW)
74.9
Rated speed(r/min)
2300
Electrical System
System voltage(V)
24
Hydraulic system
Steering system(MPa)
16
Charge pressure(MPa)
2.5
Drive System(MPa)
40
Vibration system(MPa)
35
Oil
Drum(L)
31
28
Hydraulic tank(L)
77
Engine oil(L)
18
Fuel tank(L)
167
Water tank(L)
2×370
Applicable environment
Ambient temperature
-10ºC~+40ºC
Altitude(m)
≤3000
