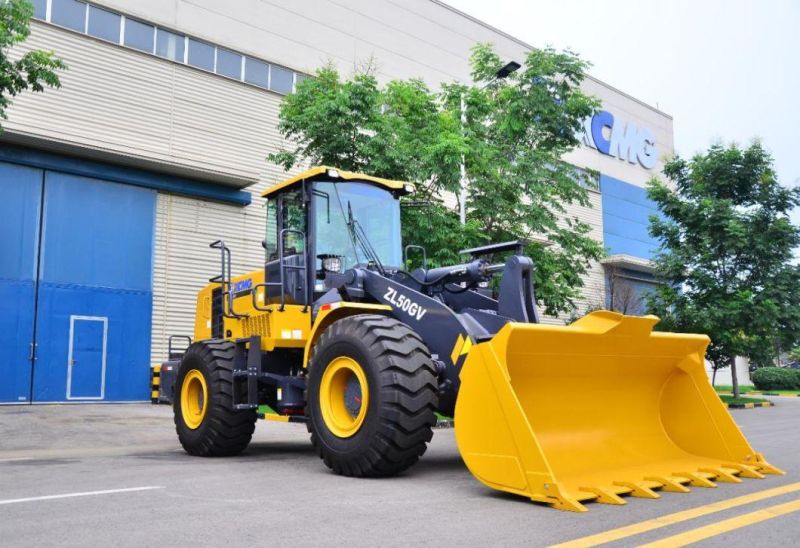

• Model NO.：Zl50gv
• Type：Medium-sized Loader
• Bucket Capacity：2.5-4.5m3
• Machine Weight：17500kg
• Rated Power：162
• Tyre Size：23.5-25-16pr
• Emmission Standard：Emmission 2
• Dump Clearance at Maximum Lift：3100-3780mm
• Gradeability：30
• Max.Breakout Force：175kn
• Hydraulic Cycle Time：6s
• Total Hydraulic Cycle Time：10.5s
• Transport Package：Comply with Export Packing Requirements
• Specification：8225x3016x3515mm
• Trademark：XCMG
• Origin：Xuzhou, China
• Production Capacity：10000

UnitParameter valueRated operating loadkg5000Bucket capacitym³2.5-4.5Machine weightkg17500±300  Dump clearance at maximum liftmm3100~3780   Reach at maximum liftmm1100~1220   Wheel basemm3300Treadmm2250Max.breakout forcekN175±5Max.horse powerkN160±5Hydraulic cycle time-raises≤6Total hydraulic cycle times≤10.5   Min. turning radius over tyresmm5925±50Articulation angle°38 Gradeability°30Tyre size 23.5-25 -16PROverall machine dimension L×W×Hmm8225×3016×3515 Model WD10G220E21
