• Model NO.：XS203H
• Travel Speed：30cm,s
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Vibratory Drum Diameter：1600mm
• Wheel Base：3180mm
• Vibration System Pressure：35MPa
• Steering System Pressure：38MPa
• Drive System Pressure：16MPa
• Transport Package：Suitable for Ocean Shipment
• Specification：6220*2430*3200mm
• Origin：China
• HS Code：84294011
• Production Capacity：1000 Set Per Month

DescriptionUnitParameter valueWork weightkg20000Drive wheel distribution weightkg10000Vibratory drum distribution weightkg10000Static line loadN/cm470Vibration frequencyHz28/33Theoretical amplitudemm1.9/0.95Exciting forcekN353/245Speed range  km/h0-5.5  0-8.5Wheelbasemm3180Compaction widthmm2130Theoretical climbing ability%39Minimum turning radiusmm6500Vibratory drum diametermm1600Minimum ground clearancemm440EngineModel SC7H190G3Rated speedr/min2200Rated powerkW140Dimensionsmm6220×2430×3200Vibration system pressureMPa35Steering system pressureMPa38Drive system pressureMPa16

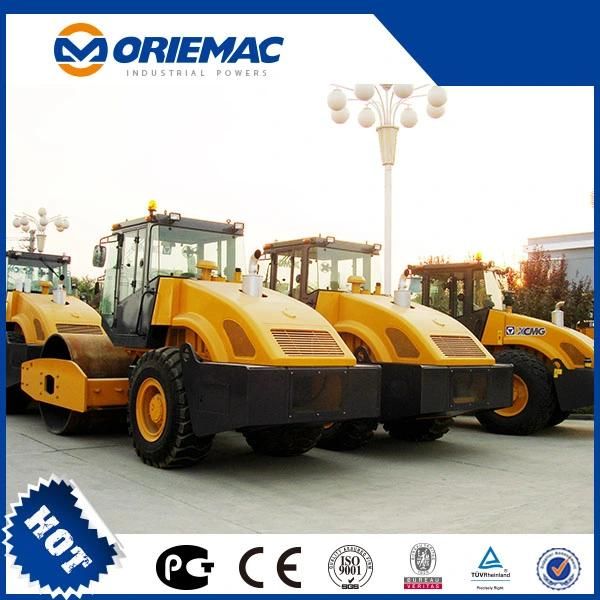

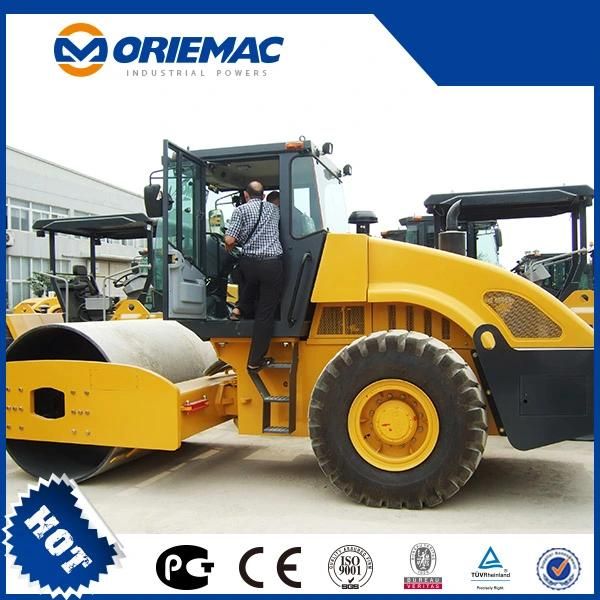

Product Show
