• Model NO.：Xp303s,Xp303
• Travel Speed：30cm,s
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Counterweight Mass：14550kg
• Minimum Working Weight：15000kg
• Maximum Working Weight：30300kg
• Compaction Width：2360mm
• Minimum Ground Clearance：300mm
• Engine Model：Sc7h180.2g3
• Transport Package：Suitable for Ocean Shipment
• Specification：4925*2530*3370mm
• Origin：China
• HS Code：84294011
• Production Capacity：1000 Set Per Month

TypeUnitXP303/XP303SOperating weightkg15000Max operating weightkg30300Travel Speed, Forwardkm/h0-13Counterweight water weightkg650Counterweight weightkg14550Theoretical gradeability%20Minimum outer turning radiusmm7620Min ground clearancemm300Compacting widthmm2360Overlapping of front&reartyremm65Tire specification 13/80-20Tires pattern SmoothNumber of tyres 4 front & 5 rearGround pressurekPa200-545Engine Model SC8D 156.2G2B1Rated rotating speedr/min1800Rated powerkW128Engine oil consumptiong.kw/h205Dimensions(LxWxH)mm5100x2420x3380Water tank capacityL650Hydraulic oil tank capacityL100Fuel tank capacityL180

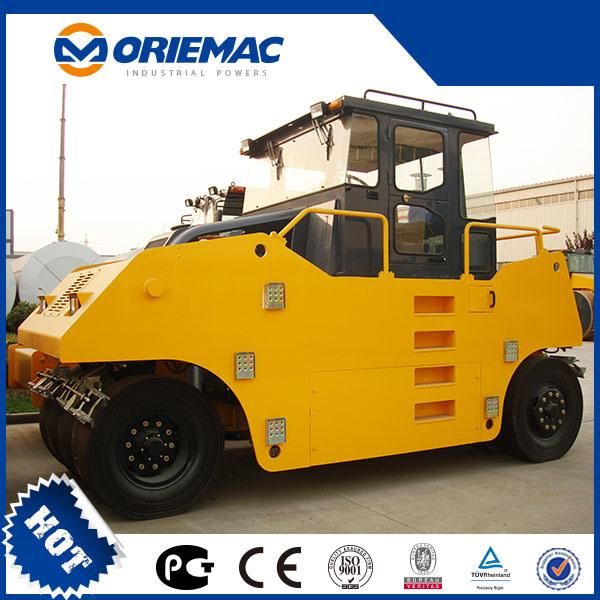

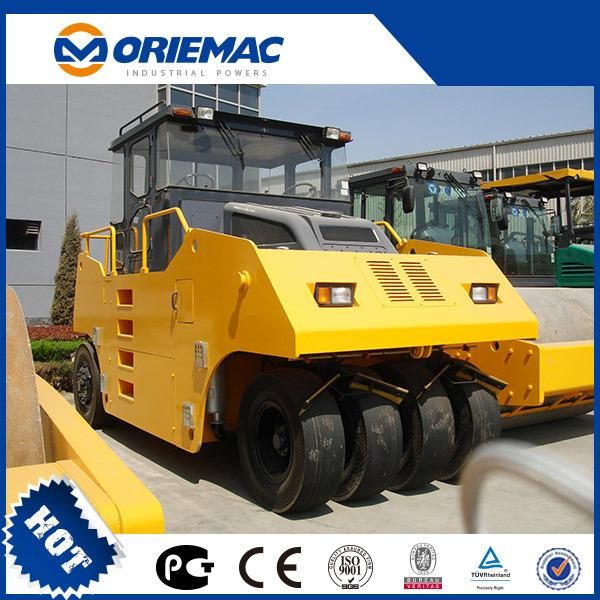

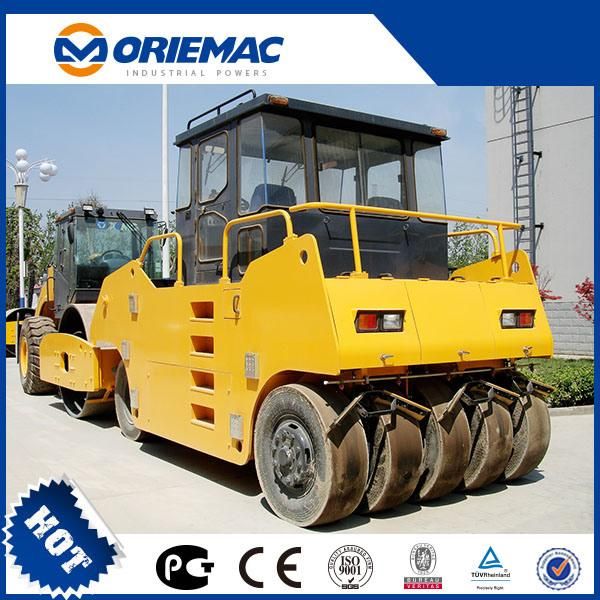

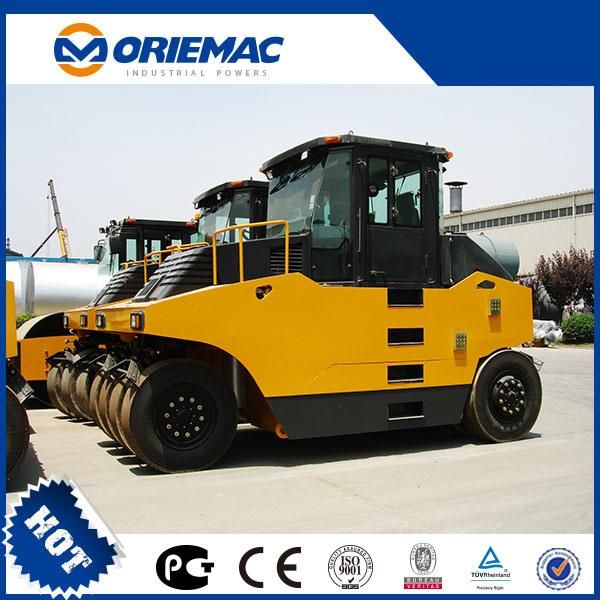

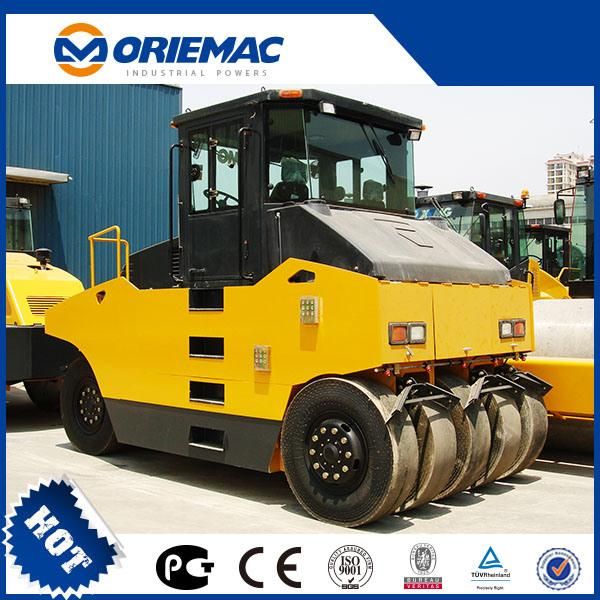

Product Show
