• Model NO.：Gr150
• Weight：12500kg
• Engine Model：6BTA5.9-C150
• Working System Pressure：19MPa
• Maximum Lift Height：410mm
• Maximum Cutting Depth：515mm
• Minimum Turning Radius：5.7m
• Transport Package：RO-RO,Bulk,Container
• Specification：8420x2380x3150mm
• Origin：China
• HS Code：84292090
• Production Capacity：1000 Set Per Month

Basic specification
Engine model
CTAA8.3/6CTA8.3
Rated power/speed
153kW/2200rpm  160kW/2200rpm
Dimension(LxWxH)
8970×2625×3470mm
Operating weight(Standard)
16500kg
Performance specification
Travelling speed ,forward
5,8,11,19,23,38 km/h
Travelling speed ,reverse
5,11,23 km/h
Tractive force(f=0.75)
90KN
Max. gradeability
30%
Tire inflation pressure
260 kPa
Working hydraulic pressure
16 MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±50°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
15
Frame articulation angle
±27°
Min. turning radius using articulation
7.3m
Biade
Maximum lift above ground
450mm
Maximum depth of cutting
500mm
Maximum blade position angle
90°
Blade cutting angle
28°-70°
Circle reversing rotation
360°
Moldboard width X height
4270×610mm

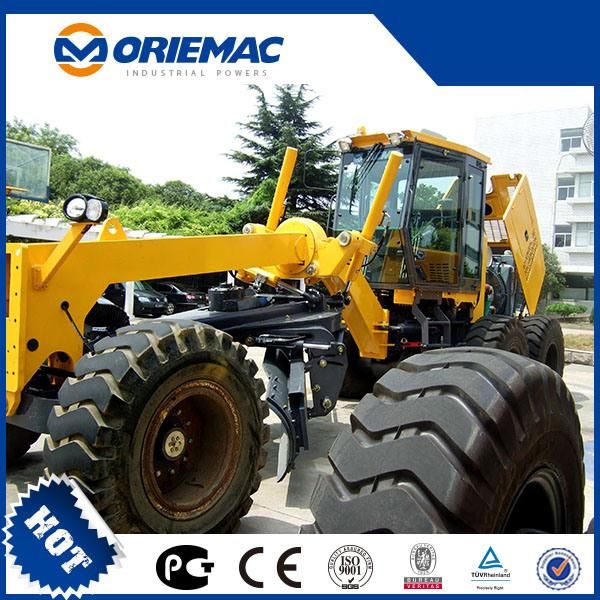

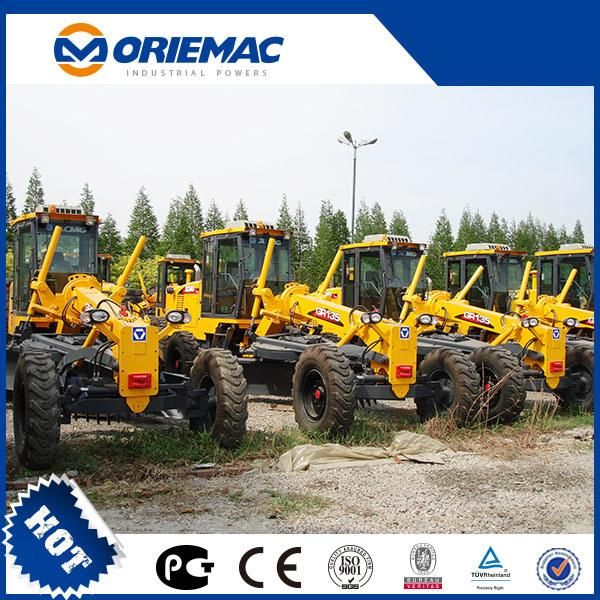

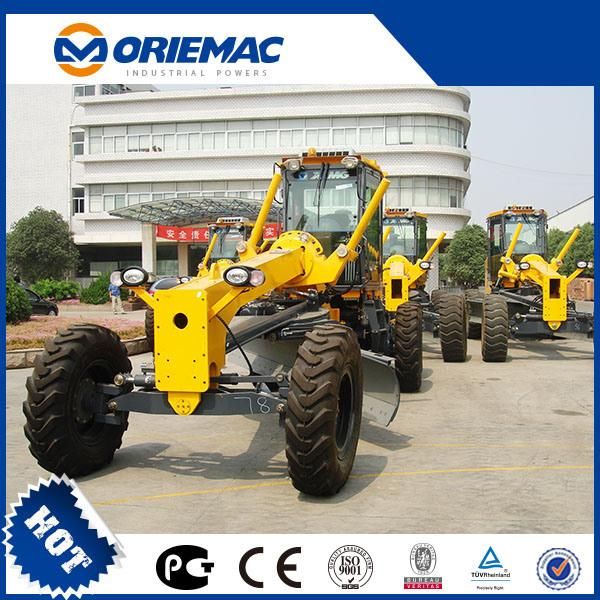

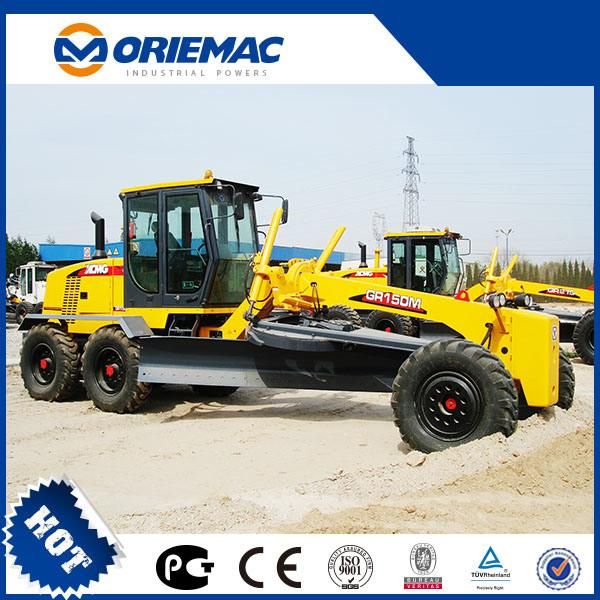

Product Show
