• Model NO.：SD22R
• Condition：New
• Color：Yellow
• Operatiing Weight：26000kg
• Rated Horsepower：175kw
• Minimum Turning Radius：3800mm
• Ground Pressure：36kpa
• Gradeability：30%
• Transport Package：Nude
• Specification：6225x4365x3782
• Trademark：SHANTUI
• Origin：China
• Production Capacity：350units,Month

PRODUCTSD22R(WASTE)PERFORMANCE PARAMETERSOperatiing   Weight (kg)26000Rated horsepower (kw/hp)175/1800Minimum turning radius (mm)3800Ground pressure (kpa)36ENGINEModelChongqing   cummins NT855-C280S10EmissionChina   ITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×140×152Piston displacement (L)14Horsepower/rpm (kw/rpm)175/1800Maximum torque (N.m/r/min)1030/1250DIMENSIONSLength(mm)6225Width(mm)4365Height(mm)3782TRAVELING PERFORMANCEForward/Reverse(km/h)F1:0-3.6   F2:0-6.5 F3:0-11.2 R1:0-4.3  R2:0-7.7   R3:0-13.2Gradeability(deg)30Clearance(mm)405TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)2250Shoe width (mm)910Track length on ground (mm)3480Number of shoes (each side)45Pitch (mm)216Carrier rollers (each side)2Track rollers (each side)8WORKING HYDRAULIC SYSTEMPressure   (MPa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)φ120 Bore of blade tilt cylinder (mm)φ200 TANK CAPACITYFuel   tank capacity (L)450Working hydraulic tank capacity (L)110WORKING EQUIPMENTBlade   width (mm)4365Blade height (mm)1885Blade capacity (m³)12Max.Drop below ground of blade1330Lift height of blade550Type of ripper-Maximum digging depth of ripper (mm)-Maximum lifting height of ripper (mm)-

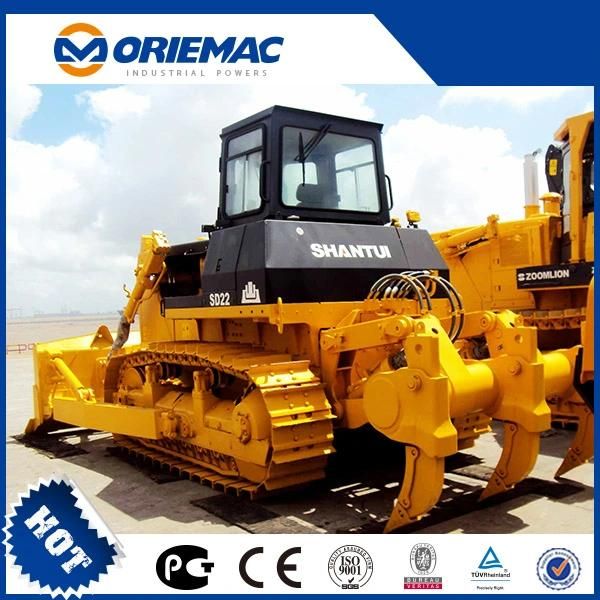

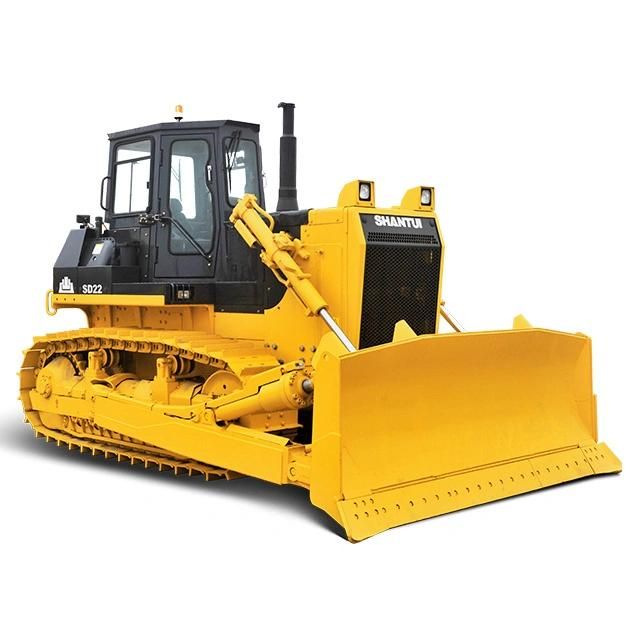

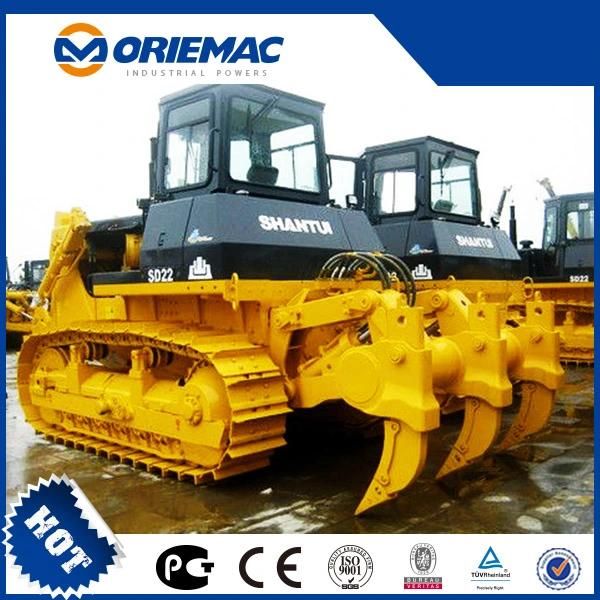

Product Show
