• Model NO.：SRP90S PLUS
• Certification：ISO9001: 2000, CE
• Condition：New
• Transport Package：Nude
• Specification：29 t
• Trademark：shantui
• Origin：Shandong China
• HS Code：84292090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. SRP90S PLUS Certification ISO9001: 2000, CE Condition New Transport Package Nude Specification 29 t Trademark shantui Origin Shandong China HS Code 84292090 Production Capacity 1000 Units Per Month

Product Description

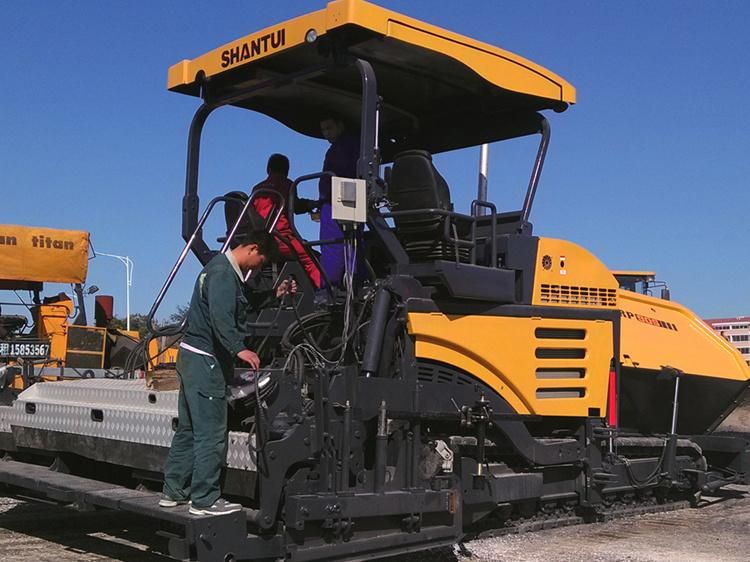

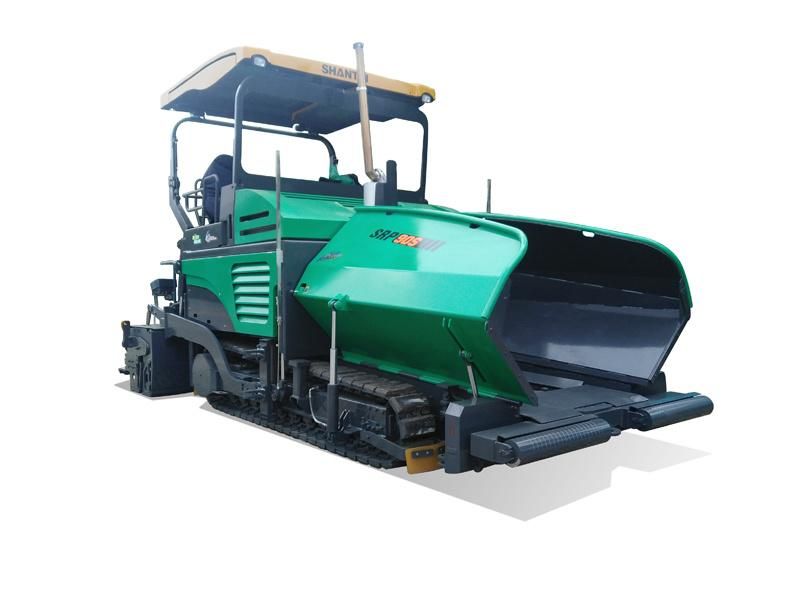

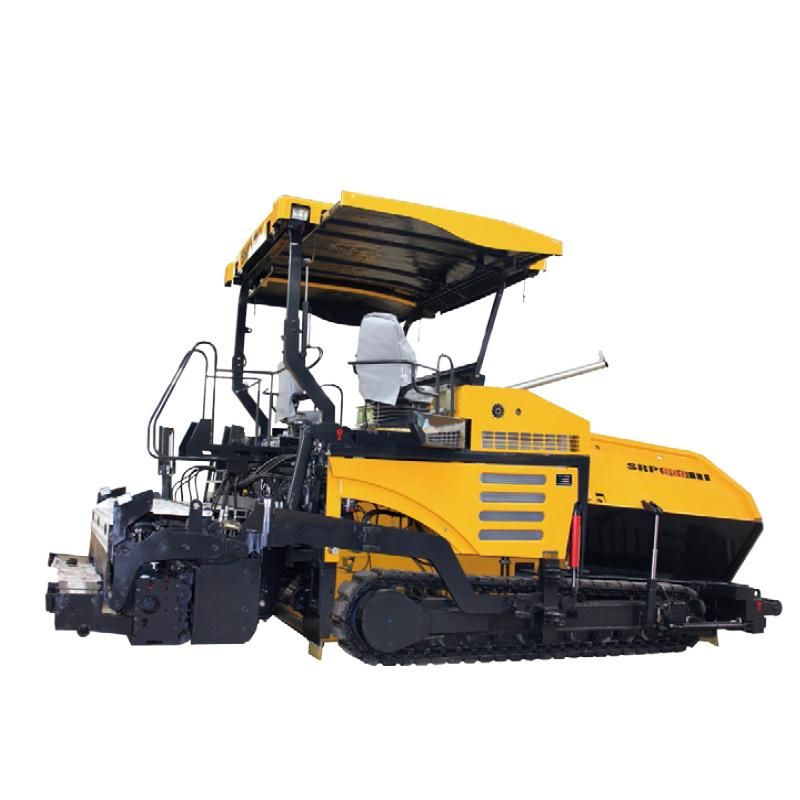

High Quality Shantui Srp90s Multifunctional Asphalt Conceter Road Paver Machine
Product descriptionPower System

SRP90S PLUS paver is powered by China-III compliant Deutz BF6M or SDEC SC9D turbocharged diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.

Repairs and maintenances

The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.

The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral distributor.

Driving/Riding Environment

The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.

The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.

The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding environment.

The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.

Feeding device

The lengthened and widened high-capacity hopper achieves high productivity.

The spring-cushioned push roller can remarkably reduce the impact of feeder onto the paver and achieve higher operating quality.

Conveyance/distribution system

Four sets of independent full-hydraulic left and right material conveyance/distribution systems are adopted and the ultrasonic sensing control technology is adopted for the material level control to ensure the uniform material supply in completely proportional manner.

The large diameter and large pitch spiral distribution structure features power distribution capability, low distribution speed, and low segregation.

The left and right spiral distributors can be driven separately and the ground clearance of distributors is steplessly adjustable to adapt to paving needs of different thicknesses.

Screed

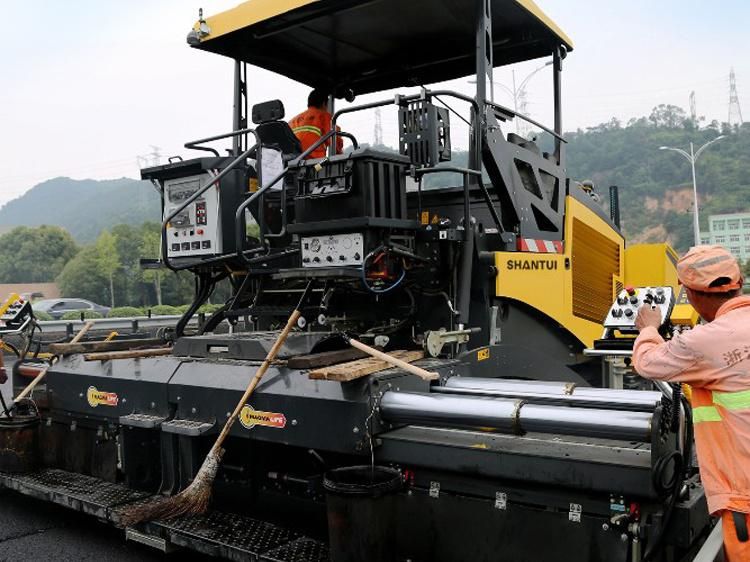

SRP90S PLUS paver is equipped with hydraulically telescopic and electrically heated screed, with single-tamper and steplessly adjustable frequency.

The multi-traveler structure enhances the integral stiffness of screed and the wide wear-resistant baseplate features high operating stability and operating quality.

Control system

Shantui's latest generation paver intelligent operation management system achieves constant-speed paving and automatic changeover among diversified working conditions and incorporates the automatic malfunction diagnostic system to real-time monitor the machine.

The intelligent leveling system features high leveling accuracy and strong anti-interference performance.

The excellent ergonomic control system features high reliability and maneuverability.

The control parts and switches are arranged as per functional logic to achieve simple operations and good human-machine interfaces.

Traveling system

The hydraulic system is controlled by independent left and right micro-computers to achieve good low-speed stability and linear driving performance.

The drive sprockets, idlers, track rollers, carrier rollers, and tracks of domestic renowned brands are applied and the extended tracks are independently driven to achieve high drive torque and uniform speed and guarantee the paving flatness and uniform compactness.

Parameter

Parameter name	SRP90S PLUS (Standard version)
Performance parameters
Operating weight (Kg)	29000
Basic paving width (m)	3-5.7
Maximum paving width (m)	9
Maximum paving thickness (mm)	350
Maximum productivity (t/h)	850
Engine
Engine model	SC9D/BF6M
Rated power/rated speed (kW/rpm)	162/2000;159/2000
Overall dimensions
Overall dimensions of machine (mm)	7800*9000*3800
Driving performance
Traveling speed (km/h)	0~2.4
Paving speed (m/min)	0~18
Chassis System
Hopper
Hopper capacity (t)	15
Working device
Screed	AVS9030D
