• Model NO.：SD16F
• Condition：New
• Color：Yellow
• Operatiing Weight：17000kg
• Rated Horsepower：120kw
• Minimum Turning Radius：4571mm
• Maximum Torque：964n.M
• Max.Drop Below Ground of Blade：540
• Transport Package：Nude
• Specification：5140x3388x3180
• Trademark：SHANTUI
• Origin：China
• Production Capacity：350units,Month

PRODUCTSD16F(FOREST LOGGING)PERFORMANCE PARAMETERSOperatiing   Weight (kg)17000Rated horsepower (kw/hp)(120/160)Minimum turning radius (mm)4571Ground pressure (kpa)58ENGINEModelWeichai   WP10G178E355/Shangchai SC11CB184G2B1EmissionChina   IITypeIn-line,direct   injction,4-cycles,water cooled,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6-126×130/6-121×152Piston displacement (L)9.726/10.5Horsepower/rpm (kw/rpm)131/1850,135/1850Maximum torque (N.m/r/min)764/1300DIMENSIONSLength(mm)X   Width(mm)X Height(mm)5140×3388×3180TRAVELING PERFORMANCEForward(km/h)F1:0~3.29F2:0~5.82F3:0~9.63Reverse(km/h)R1:0~4.28R2:0~7.59R3:0~12.53Gradeability(deg)30°Clearance(mm)400TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)1880Shoe width (mm)560(510,610)Track length on ground (mm)2635Number of shoes (each side)39Pitch (mm)203Carrier rollers (each side)2Track rollers (each side)7WORKING HYDRAULIC SYSTEMPressure(Mpa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)Φ110Bore of blade tilt cylinder (mm)Φ160Bore of ripper lift cylinder(mm)--TANK CAPACITYFuel   tank capacity (L)315Working hydraulic tank capacity (L)110WORKING EQUIPMENTBlade   width (mm)3388Blade height (mm)1149Blade capacity (m³)4.5Max.Drop below ground of blade540Lift height of blade1095Maximum lifting height of ripper (mm)--Maximum digging depth of ripper (mm)--

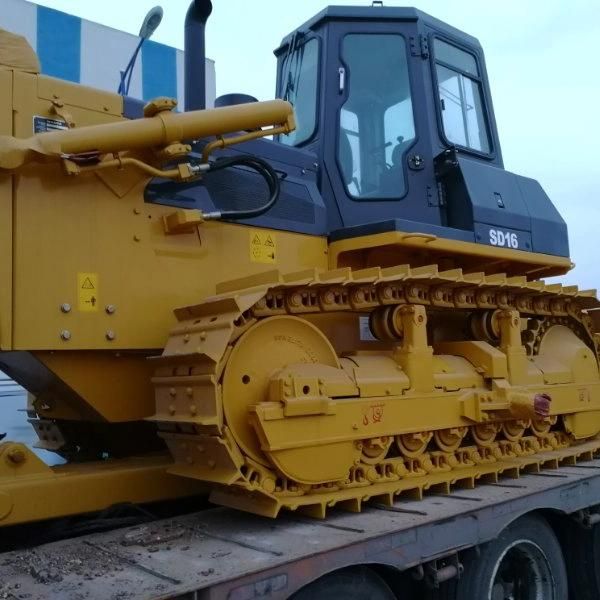

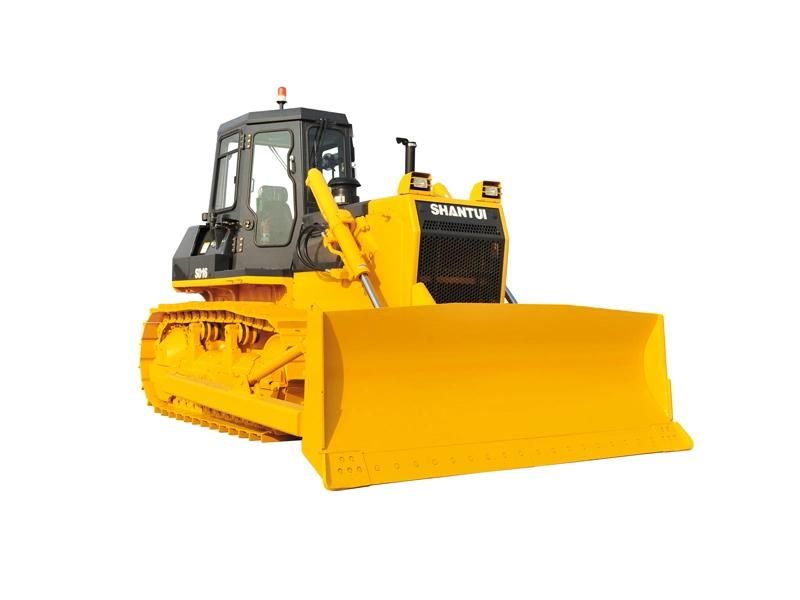

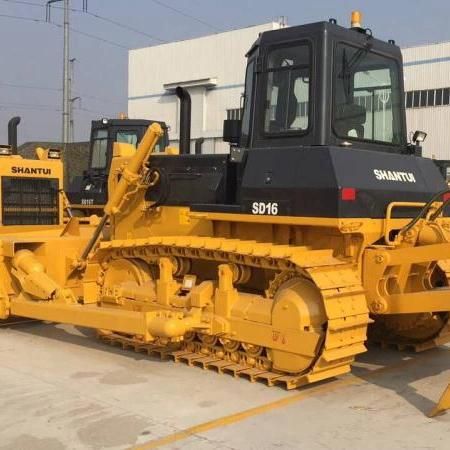

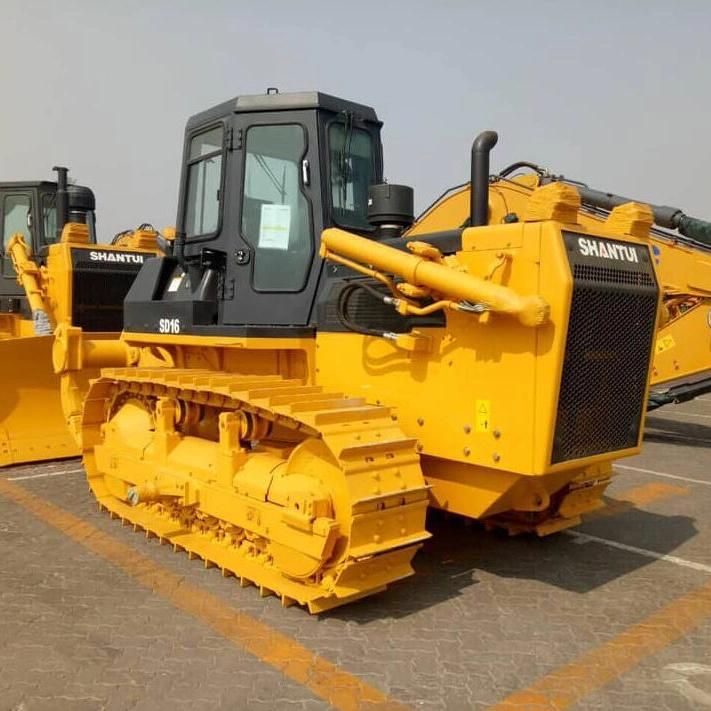

Product Show
