• Model NO.：XE265C
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Engine：Isuzu Cc-68g1trp-05
• Engine Power：135.2,2150kw,Rpm
• Color：Yellow
• Displacement：6.494L
• Travel Speed：5.9,4.0kw,H
• Width of Track：600mm
• Wheelbase of Track：3742mm
• Max.Digging Depth：6895mm
• Transport Package：Nude Packing
• Specification：10160*3190*3000mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：200units,Month

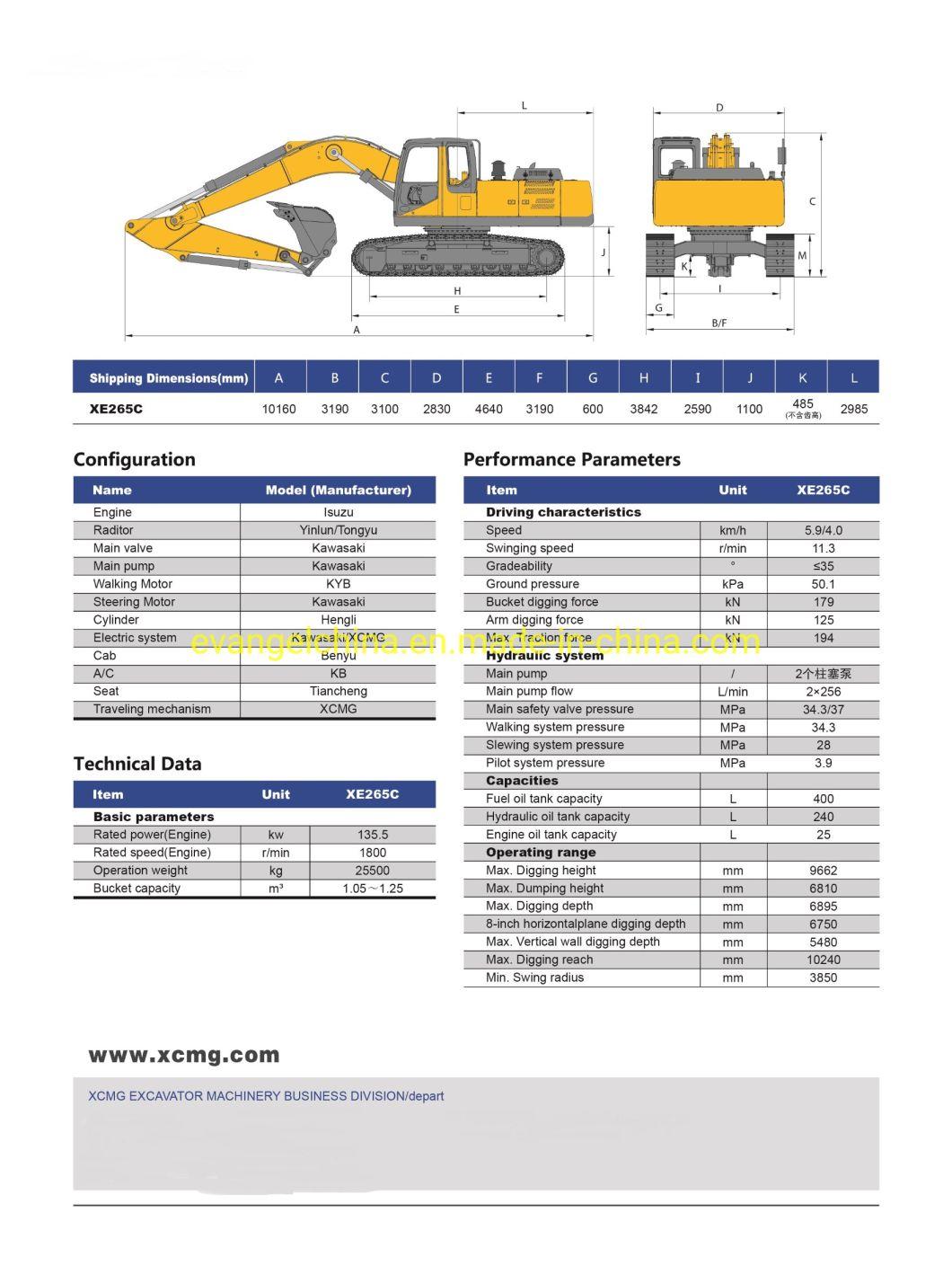

 UnitParametersModelOperating weightkg25500Bucket capacitym³1.05-1.25EngineEngine model/ISUZU CC-68G1TRP-05Direct injection/√4×strokes/√Water cooling/√Turbocharging/√A/A Air-air intercool/√Cylinders/6Output power of engineKw/rpm135.2/2150Max.torque/engineN.m/rpm637/1800DisplacementL6.494Mian pertormanceTravel speedkm/h5.9/4.0Slewing speedr/min11.3Gradient capability°≤35°Ground pressurekPa50.1Digging capacity of tcuketkN179Digging capacity of tcuket rodkN125Max.tractionkN194Hydraulic systemMain pump/Tow plunger pumpsRated flow of main pumpL/min2×256Pressure of main safety valveMpa34.3/37Pressure of traveling systemMpa34.3Pressure of swing systemMpa28Pressure of pilot systemMpa3.9Oil volumeFuel tank capacityL400Hydraulic tank capacityL240Engine oil volumL25Apperance sizeA Total lengthmm10160B Total widthmm3190C Total heigthmm3000D Width of rotary tablemm2830E Length of trackmm4640F Total width of chassismm3190G Width of trackmm600H Wheelbase of trackmm3742I Track gaugemm2590J Counterweight ground clearancemm1100K Min.ground clearancemm485(Track teeth not including)L Min.tail swing radiusmm2985Working scopeA Max.digging heightmm9662B Max.unloading heightmm6810C Max.digging depthmm6895D Digging depth at the range of 8feets horizontallymm6750E Max.vertical digging depthmm5480F Max.digging radiusmm10240G Max.swing heightmm3850Standard configurationBoom lengthmm6000Length of bucket rodmm2960Bucket capacitym³1.2Optional counfigurationLength of bucket rodmm2500Bucket capacitym³1.25Rock bucket  1.05Earthmovingbucket
