• Model NO.：GR135
• Rated Power/Speed：224kw,2100rpm
• Dimension(Lxwxh)：10500X3100X3550mm
• Operating Weight：26000kg
• Maximum Lift Above Ground：450mm
• Maximum Depth of Cutting：500mm
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：350units,Month

Basic specification

Engine model6BT5.9Rated power/speed100/2200kw/rpmDimension(LxWxH)8015×2380×3050mmOperating weight(Standard)11000kg

Performance specification

Travelling speed ,forward5,8,13,20,30,42km/hTravelling speed ,reverse5,13,30km/hTractive force(f=0.75)61.3KNMax. gradeability20%Tire inflation pressure300kPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±49°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box16Frame articulation angle±27°Min. turning radius using articulation6.6m

Biade

Maximum lift above ground410mmMaximum depth of cutting535mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3710×610mm

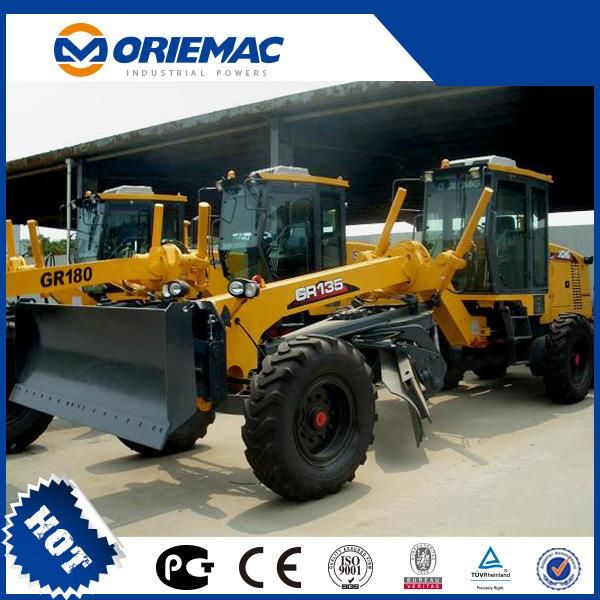

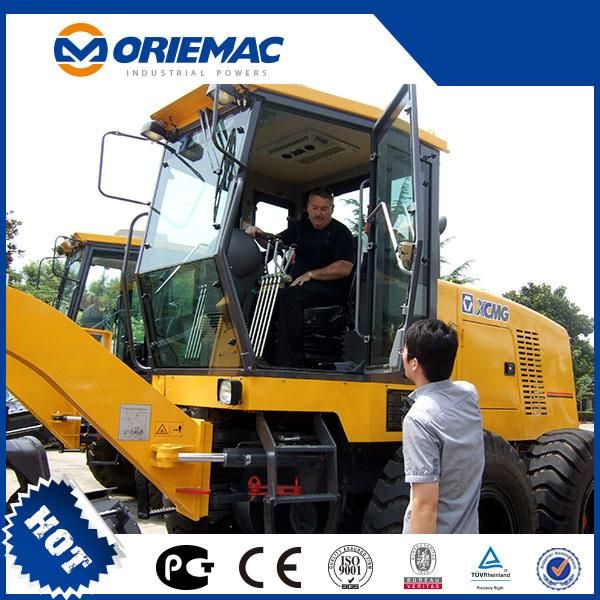

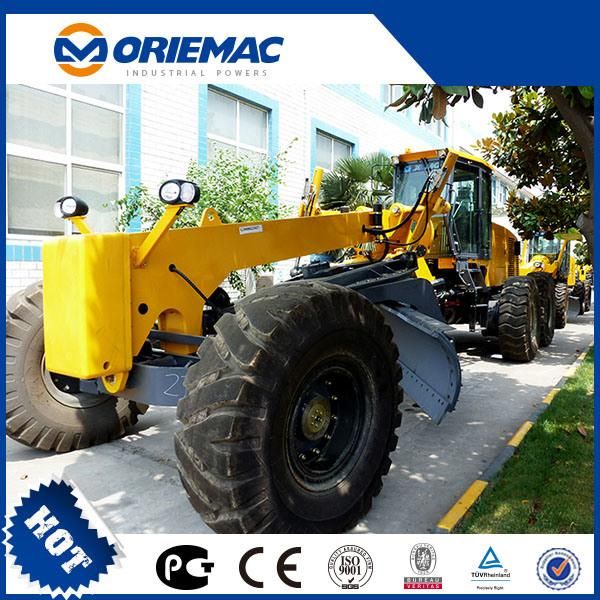

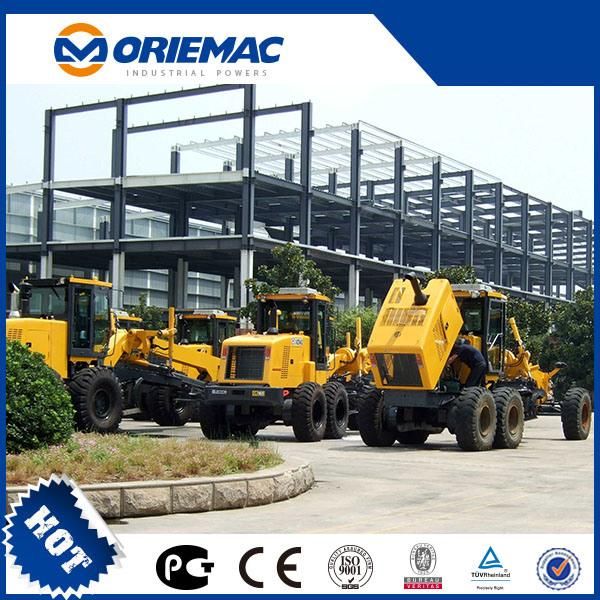

Product Show
