• Model NO.：XE75D
• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Operating Weight：7460kg
• Engine：V2607-Di-Te3b
• Rated Power of Engine：43,2000kw,Rpm
• Maximum Torque/Rotating Speed：225.8 N M
• Displacement：2.615L
• Color：Yellow
• Total Width of Chassis：2200mm
• Track Width：450mm
• Maximum Digging Height：7085mm
• Maximum Digging Depth：4020mm
• Transport Package：Nude Packing
• Trademark：EVANGEL
• Origin：China
• Production Capacity：200units,Month

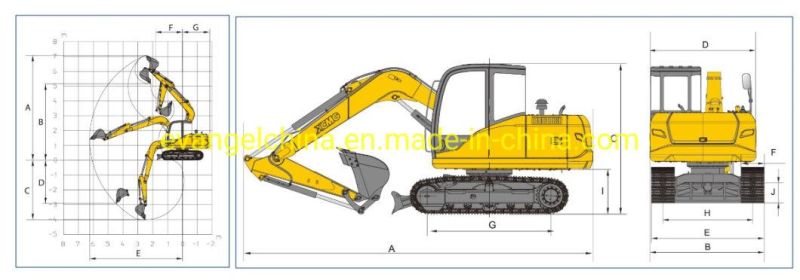

ModelUnitXE75DOperating weightKg7460Bucket capacitym³0.3EngineModel of engine/V2607-DI-TE3BDirect injection/√4-stroke/√Water cooling/√Turbo-charging/√Quantity of cylinders/4Rated power of enginekw/rpm43/2000Maximum torque/rotating speedN.m225.8DisplacementL2.615Main performanceRunning speedkm/h5.4/2.9Rotating speedr/min10Climbing capability°35Ground specific pressurekPa33.5Bucket digging forcekN57Digging force of bucket rodkN38Maximum traction forcekN68.3Hydraulic systemRated flow of main pumpL/min160Working pressureMPa28Pressure of running systemMPa27.4Pressure of rotating systemMPa20.6Pressure of pilot systemMPa3.5Oil capacityVolume of fuel tankL130Volume of hydraulic oil tankL76Capacity of engine oilL10External dimensionTotal lengthmm6150Total widthmm2230Total heightmm2685Width of rotary tablemm2070Total width of chassismm2200Track widthmm450Wheel treadmm2195Track gaugemm1750Ground clearance of counter weightmm815The lowest ground clearancemm380Bulldozer shovel (width/height)mm2200/396Working rangeMaximum digging heightmm7085Maximum unloading heightmm5160Maximum digging depthmm4020Maximum vertical digging depthmm2920Maximum digging radiusmm6260Minimum rotating radiusmm1818Minimum rotating radius of the tailmm1800Maximum lifting height of bulldozer shovelmm363Maximum digging depth of bulldozer shovelmm346Standard configurationLength of active armmm3720Length of bucket rodmm1622Bucket capacitym³0.3
