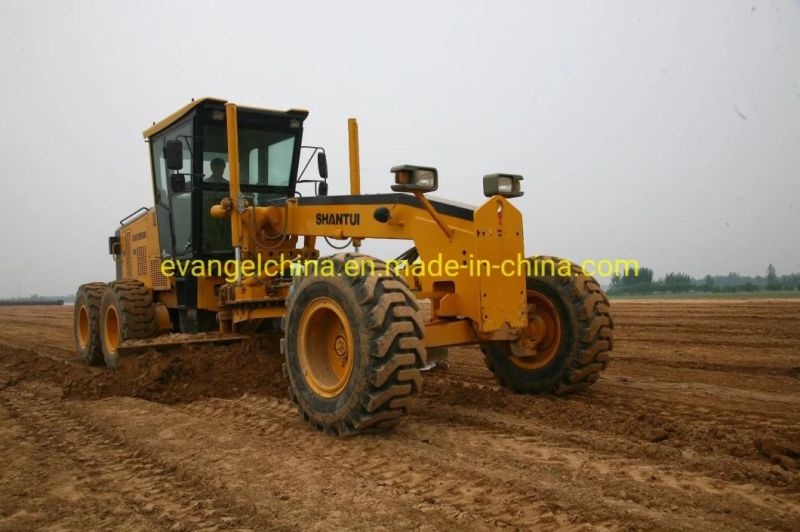

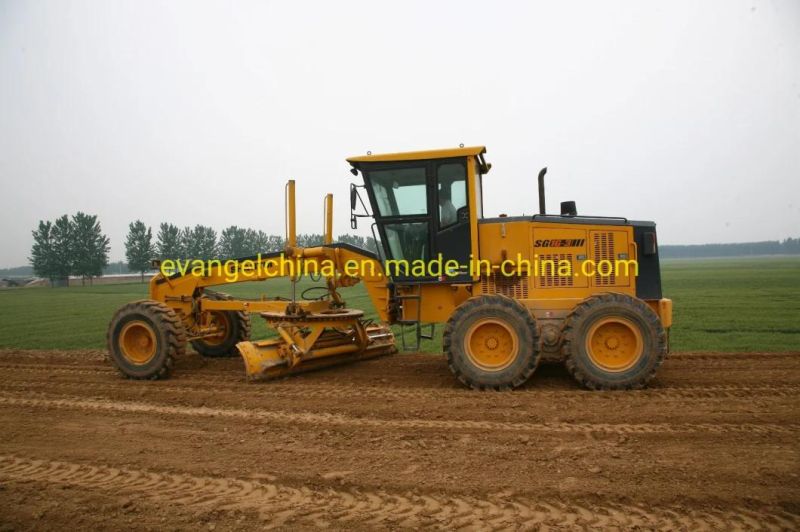

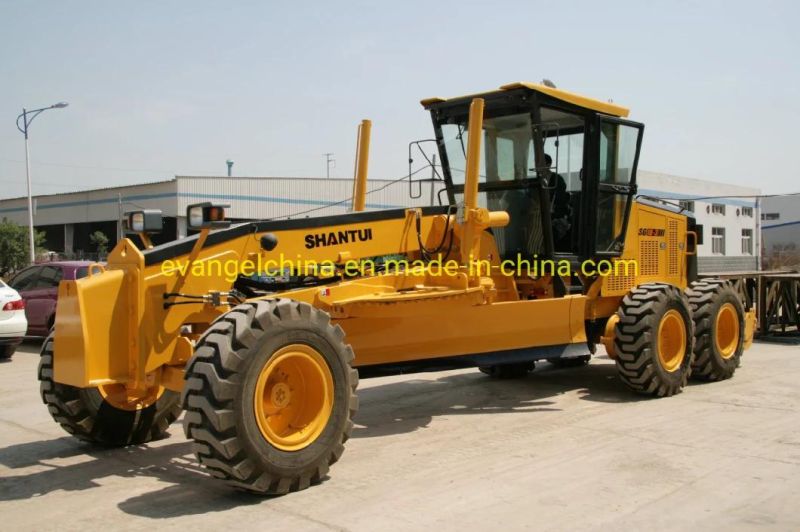

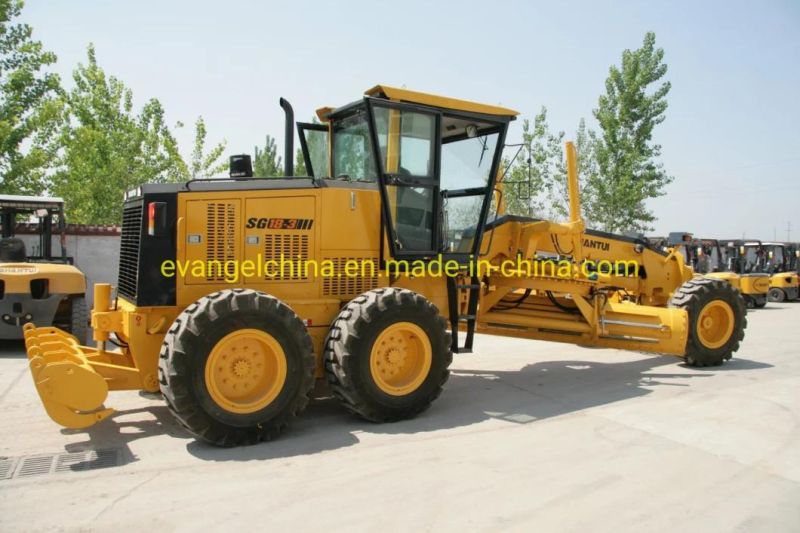

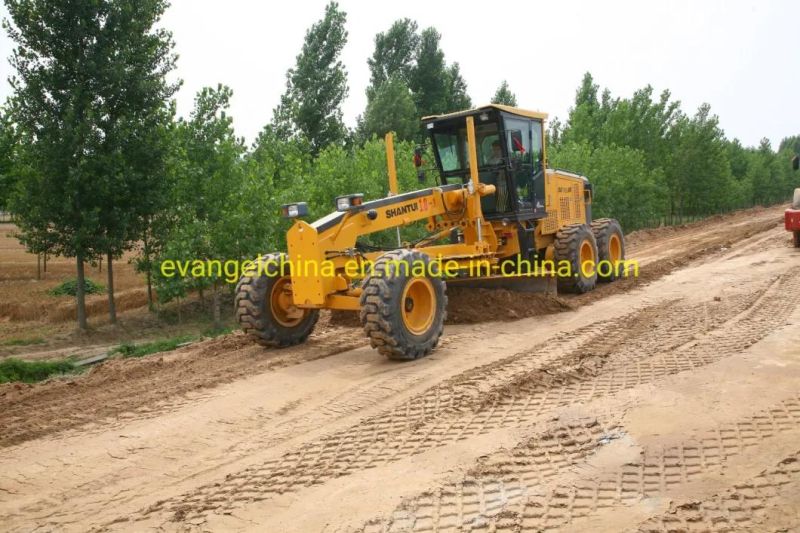

• Model NO.：SG14-3C
• Engine：Weichai Wp6g140e22
• Max. Lifting Height：460mm
• Max. Cutting Depth：500mm
• Blade：3660*615mm
• Maximum Torque/Speed：564 N M,1500 Rpm
• Minimum Fuel Consumption：202 G,Kw H
• Piston Displacement：6.75L
• Transport Package：Nude Packing
• Trademark：SHANTUI
• Origin：China
• Production Capacity：200units,Month

Engine modelWeichai WP6G140E22Max. lifting height460mmEngine typeIn-line, water-cooled, 4-cycle, direct injection,
turbochargedMax. cutting depth500mmRated power/speed105kW/2200rpmMax. position angle90°Number of cylinders (bore x stroke)6 (102 x 120 mm)Cutting angle adjustment
range30°- 68°Piston displacement6.75 Lrotational angle360°Maximum torque/speed564 N·m/1500 rpmLength×height3660×615mmMinimum fuel consumption202 g/kW·h Transmission and torque converter: Electronic controlled transmission with 6 forward
gears and 3 reverse gears.Gear1st2nd3rd4th5th6thForward0~5.4 km/h0~8.3 km/h0~13.2 km/h0~20.6 km/h0~29.6 km/h0~44 km/hReverse0~5.4 km/h0~13.2 km/h0~29.6 km/h---TireType13.00-24TG PR12Steering systemMax. steering angle of front wheel±45°Max. tilting angle of front wheel±17°Max. oscillating angle of front axle±15°Steering angle of frame±25°Max. oscillating angle of rear axle±15°Min. turning radius6600 mmOperating weight (standard configuration)10870kgOperating weightFront axle load2770kg
