• Model NO.：FL936F
• Type：Small Loader
• Bucket Capacity：1.8 M3
• Tyre Size：20.5-16
• Wheelbase：2880 mm
• Transport Package：Container
• Specification：7997*3000*3290mm
• Trademark：TOP BRAND
• Origin：China
• HS Code：84295100
• Production Capacity：100units,Month

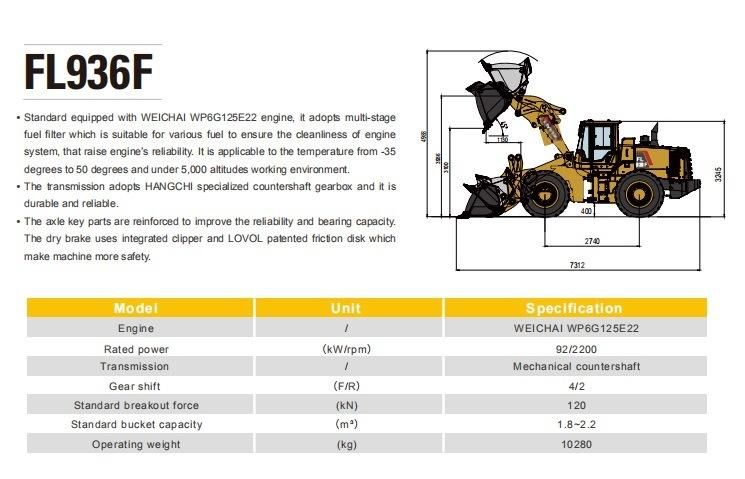

Product Parameters

Specification

Model NO.

Rated load

Ton

3

Total weight

Kg

10000kg

Reted bucket capacity

M3

1.8

Max gradeability

25 degree

Dumping height

mm

3200

Overall dimensions

mm

5600*1900*2650

Min turning radius

mm

5000

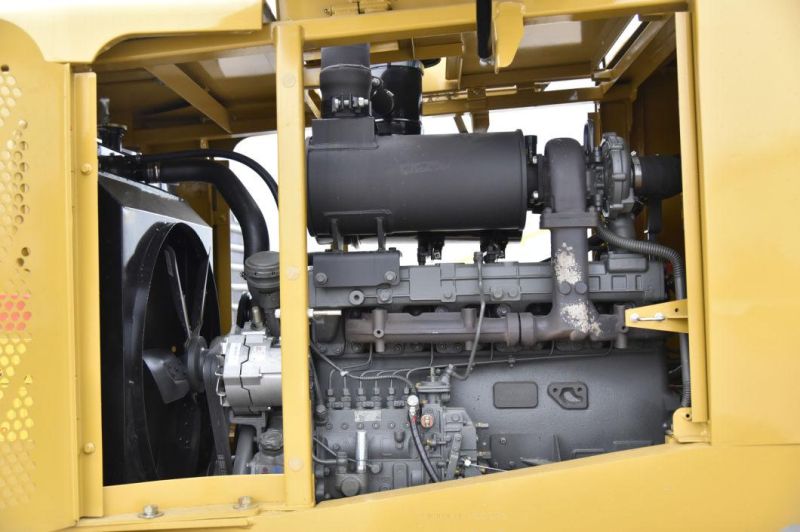

Engine

Model

Type

In-line,water colled,four stroke. Direct injection,four-cylinder

Rated power

kw

60

Rated speed

rpm

2200

Transmission

Gear box

Contershaft powershift gearbox

Torque convert

240

Gear shift

2F2R

Max speed

km/h

25

Axle model

Wheel base

mm

2200

Hydraulic system pressure

mpa

16

Rasing time

s

5.0

Total cycle time

s

10.5

Function of leveling automatically

yes

Brake system

Service brake

Hydraulic, expansion shoe brake on 4 wheels

Parking brake

Drum type shoe brake
