• Model NO.：SYL956
• Type：Medium-sized Loader
• Load and Unload Method：Front Discharge
• Transport Package：Proper Package for Ocean Shipment
• Specification：ISO9001
• Trademark：EVANGEL
• Origin：China
• HS Code：84295100
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. SYL956 Type Medium-sized Loader Load and Unload Method Front Discharge Transport Package Proper Package for Ocean Shipment Specification ISO9001 Trademark EVANGEL Origin China HS Code 84295100 Production Capacity 100 Sets Per Month

Product Description

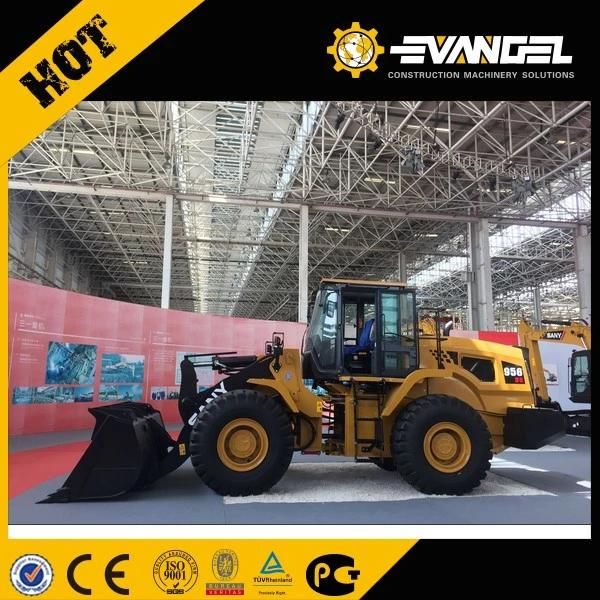

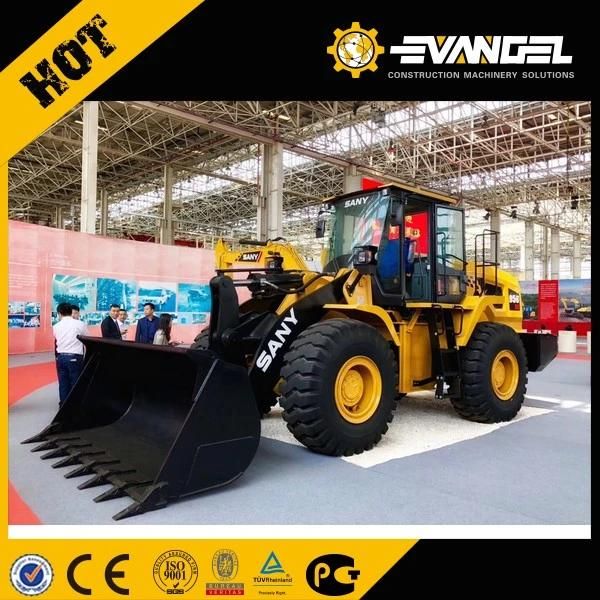

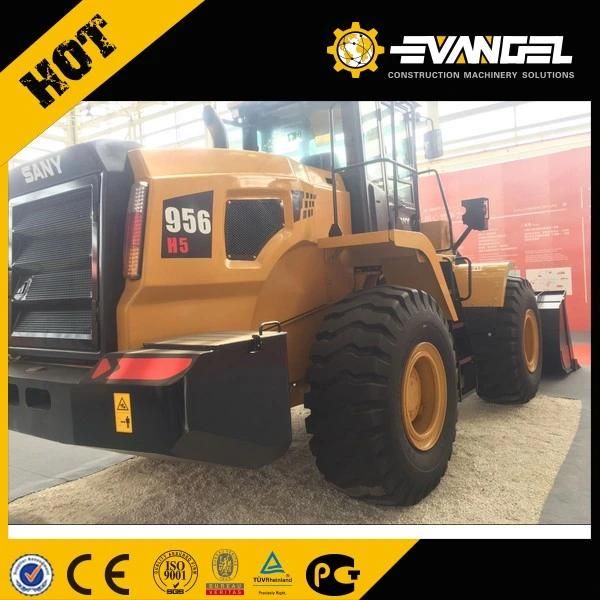

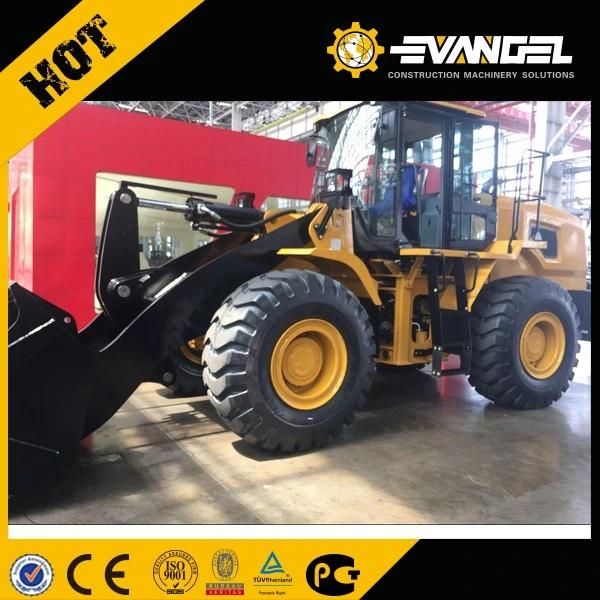

BRAND NEW 5 TON HYDRAULIC WHEEL LOADER (SYL956)

Optimum Efficiency

Cummins QSL8.9 Engine: ensures strong power, high efficiency and large displacement.

Multipoint fuel injection allows for immediate throttle response, enhanced fuel efficiency and reduced noise.

Meets Tier 3 emission standard.

Customized DANA Transmission: The DANA axis-shift transmission with electronic control system is used for automatic shifting, maximum efficiency and 10k-hour service life.

F/R handle and fingertips control realize ease of switch between left and right hands.

Solenoid valve + logic control achieve a much smoother shifting and faster response.

High-Pressure Load-Sensitive Hydraulic System: perfect match between speed and power, 10%-15% energy saving.

The 25MPa high-pressure hydraulic system and main valve of large displacement achieve higher breakout and lifting force.

Superior Reliability

Braking System: The full hydraulic electronic control parking brake and dual circuit service brake combine maneuverability and reliability, ensuring a safe operating experience.

Reinforced structural components are adopted for heavy-duty mining applications with a service life reaching 10k hours.

High Fuel Efficiency

The Cummins QSL8.9 engine reduces the fuel consumption of the wheel loader.

The high-pressure load-sensitive hydraulic system and leading hydraulic components distribute the flow on demand, reducing the unnecessary energy loss and saving energy by up to 10%.

Comfortable Operating Experience

Spacious & Quiet Cab

Generous legroom and visibility, 15% larger than other Chinese wheel loaders.

Reduced noise with 78 dB(A) noise level, creating a super comfortable space for the operators.

Ergonomic Design

Large and soft wrist rest with the height easy to adjust.

Enough legroom, comfortable pedal design, and the angle adjustable steering.

Basic
Operating Weight
17100±200kg
Bucket Capacity (Std.)
2.7-4.0m3
Max.Torque
1000N·m
Rated Load
5000kg
Engine
Model
Cummins QSL8.9-C220-3
Rated power
164/2200kW/rpm
Emission Standard
Tier 3
Performance
Speed (Gear 1)
7.1Km/h
Max. Speed
40Km/h
Total Hydraulic Cycle Time
10.5s
Max. SAE
175kN
Tractive Force
167kN
Max. Articulation Angle
40°
Dumping Height at 45° Discharge
3118mm
Dumping Reach at 45° Discharge
1140mm
Tipping Load, Articulated at 40°
10700kg
Tipping Load, Straight
12600kg
Service Refill Capacities
Fuel Tank
300L
Hyd Tank
220L
Drive Axle Oil (Front/Rear)
26.2/26.2L
Engine Coolant
45L
