• Model NO.：Ts165-3
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Origin：China
• Production Capacity：500

SpecificationsDozer typeAngleTiltOverall dimension (LxWxH)   (mm)5716x3762x31605416x3297x3160Operation weight (kg)1790017800Ground pressure   (kPa)69.369Track gauge (mm)18801880Min. ground clearance  (mm)352.5352.5Gradient (°)30 /2530 /25Dozing capacity (m3)4.95Blade width (mm)37623297Max. Digging depth (mm)377420EngineManufacturerWEIFANG DIESEL ENGINE CO., LTDModelWD10G178E15Flywheel power (kW)121Rated Rotation Speed (r/min)1850Fuel consumption (g/kW · h)≤ 218Max. Torque (N.m/rpm)830/1000-1200Model (Optional)C6121ZG71B
Shanghai Diesel Engine Co., LtdImplement hydraulic systemMax. System pressure (Mpa)12Pump typeTwo group gears pumpSystem output (L/min)185Main clutchNormally opened, wet type, hydraulic booster control.TransmissionNormally meshed helical gear drive, coupling sleeve shift and two levers operation .The transmission has five forward speeds and four backward speeds.Steering clutchMultiple-disc oil powder metallurgy disc compressed by spring, hydraulic operated.Steering brakeBrake is oil two-direction floating band brake operated by mechanical foot pedal.Final driveThe final drive is double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.Undercarriage systemTypeSwing type of sprayed beam
Suspended structure of equalizer barNumber of track rollers (each side)6Number of carrier rollers (each side)2Pitch (mm)203Width of shoe (mm)500  2,Undercarriage System

Type:	Swing type of sprayed beam, suspended structure of equalizer bar.
Number of track rollers(each side)	6
Number of carrier rollers(each side)	2
Pitch (mm)	203
Width of shoe (mm)	500

3,Gear

	1st	2nd	3rd	4th	5th
Forward (Km/h)	0-2.50	0-3.30	0-5.68	0-7.53	0-10.64
Backward (Km/h)	0-3.53	0-4.61	0-7.94	0-10.53

4,Engine

Engine Name	Weichai WD10G178E25
Rated revolution:(rpm)	1850
Flywheel power (KW)	121
Max. torque:(N.m/rpm):	830/1000-1200
Rated fuel consumption:(g/kw.h)	≤215

5,Implement Hydraulic System

Max. system pressure (MPa):	12
System output(L/min)	185
Pump type:	Two groups Gears pump

6,Driving System

Main clutch:	Normally opened, wet type, hydraulic booster control.
Transmission:	Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.
Steering clutch:	Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
Braking clutch:	Brake is oil two direction floating band brake operated by mechanical foot pedal.
Final drive:	The final drive are double reduction with spur gear and   segment sprocket, which are sealed by duo-cone seal.

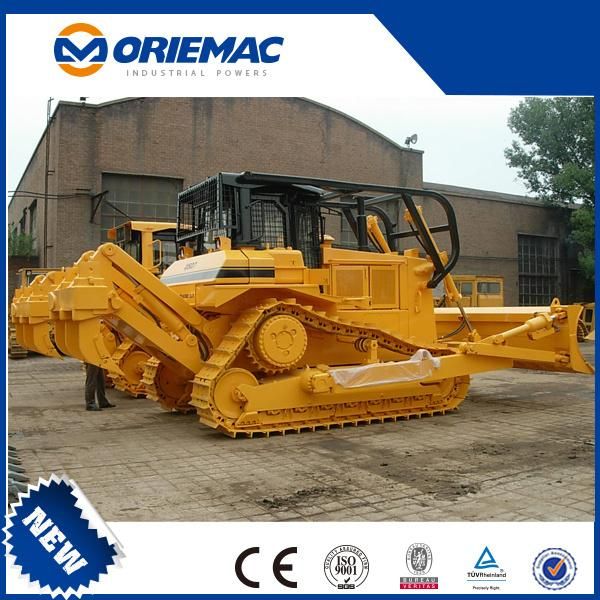

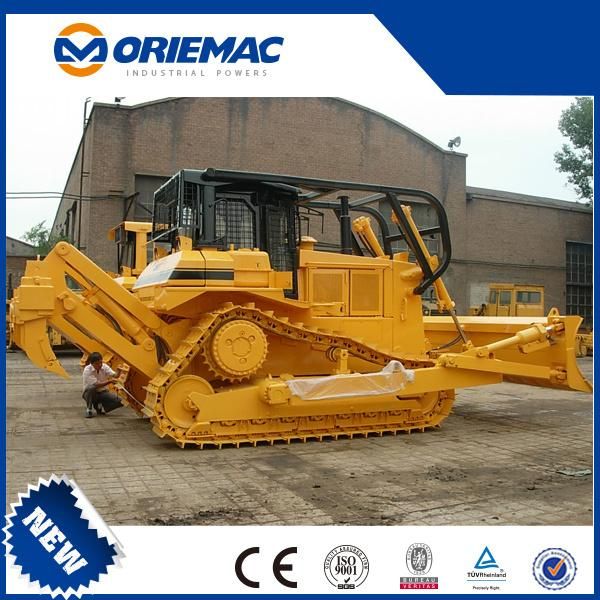

Picture show:
