Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Power Type:Diesel
  • Usage:Coal
  • Voltage:220V,380V
  • Power(W):298 Kw
  • Weight:90 T
  • Engine:Qsm11-C400

Base Info

  • Model NO.:XR320D
  • Rated Speed:2100 Rpm
  • Max. Pile Diameter:2500 mm
  • Max.Drilling Depth:90 M
  • Warranty:12 Months
  • Transport Package:Nude Package
  • Specification:ISO CE GOST
  • Trademark:ORIEMAC
  • Origin:Beijing
  • HS Code:84304122
  • Production Capacity:150PCS,Month

Description

Basic Info.

Model NO. XR320D Rated Speed 2100 Rpm Max. Pile Diameter 2500 mm Max.Drilling Depth 90 M Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

ORIEMAC Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

It adopts the luffing mechanism of large triangle form to ensure the stability of construction of big holes and deep piles in hard formation.



It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.



It adopts the imported turbo-supercharged engine with three gears. Users can select corresponding gears according to different working conditions to achieve the effect of a drilling rig driven by three engines.



Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.



Winch-pressurized and sleeve-driven functions are available for selection to satisfy various needs of the users.

It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability .

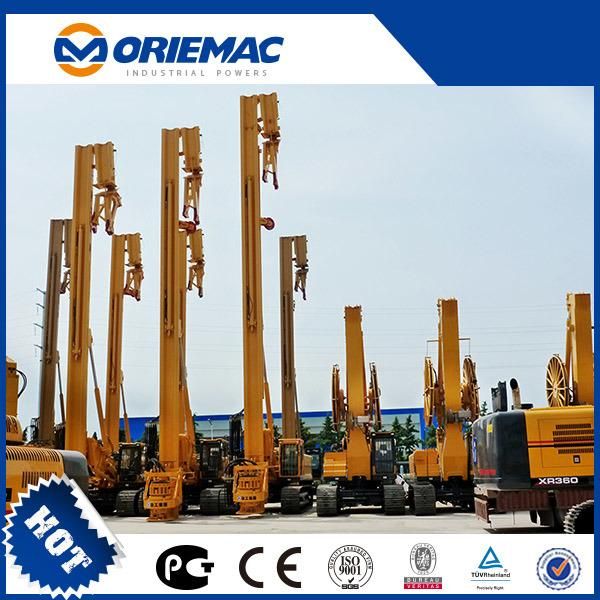

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

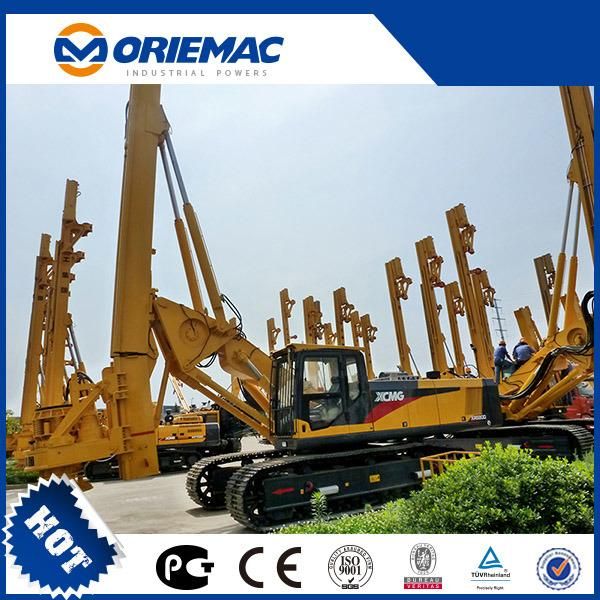

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

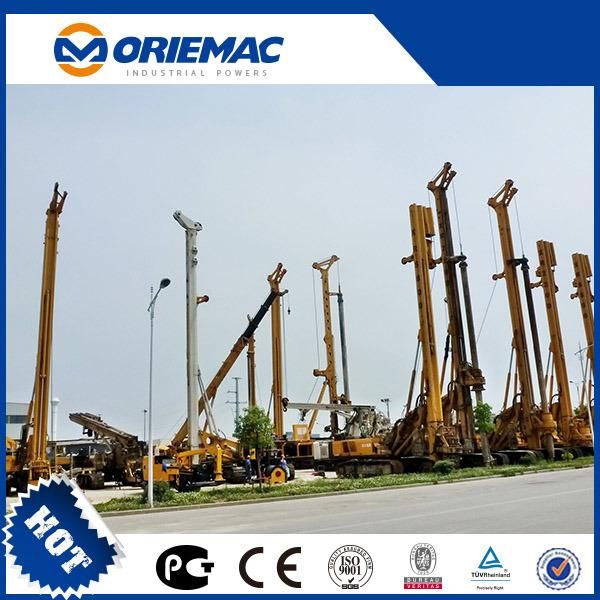

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

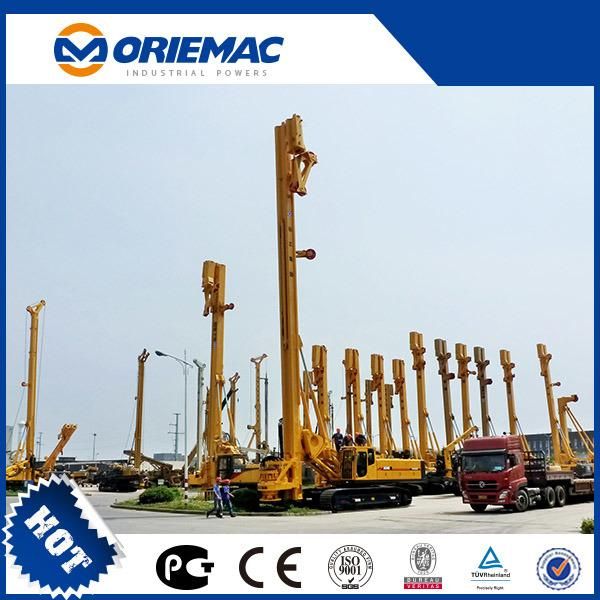

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer

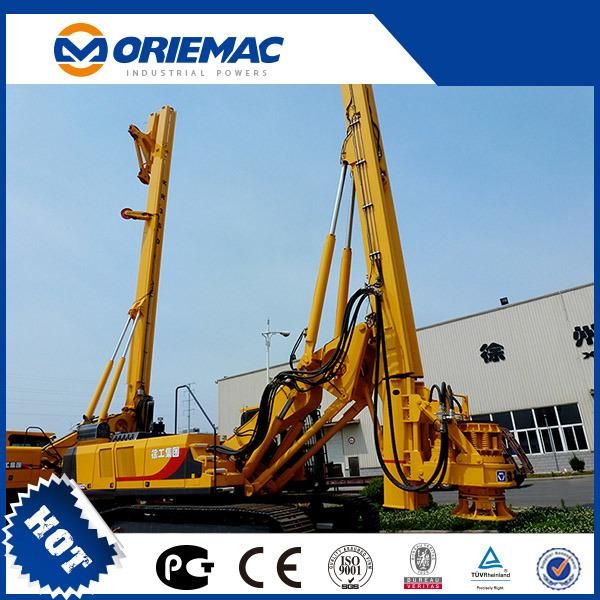

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer


Specifications:

Max. Pile Diameter: 2500mm

Max. Pile Depth: 90 m

Max. Output Torque: 320 kN.m

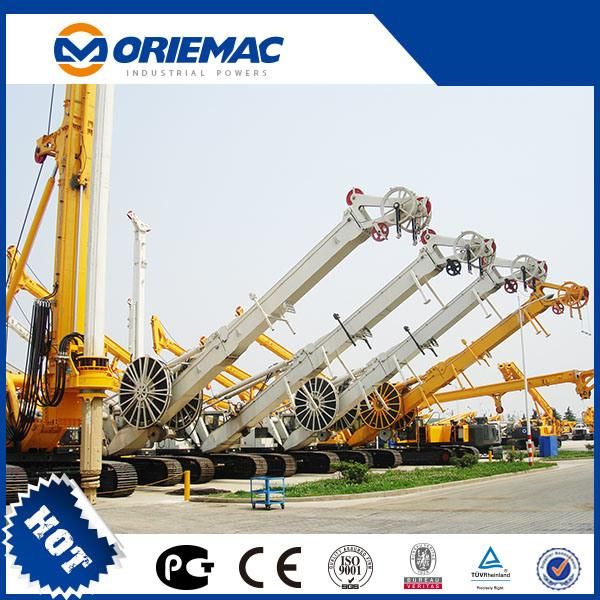

Oriemac Construction Machinery Drill Machine Rotary Drilling Rig Xr320d with Hammer
