• Model NO.：XR180D
• Rated Speed：2100 Rpm
• Max. Pile Diameter：1800 mm
• Max.Drilling Depth：60 M
• Warranty：12 Months
• Transport Package：Nude Package
• Specification：ISO CE GOST
• Trademark：ORIEMAC
• Origin：Beijing
• HS Code：84304122
• Production Capacity：150PCS,Month

Basic Info.

Model NO. XR180D Rated Speed 2100 Rpm Max. Pile Diameter 1800 mm Max.Drilling Depth 60 M Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

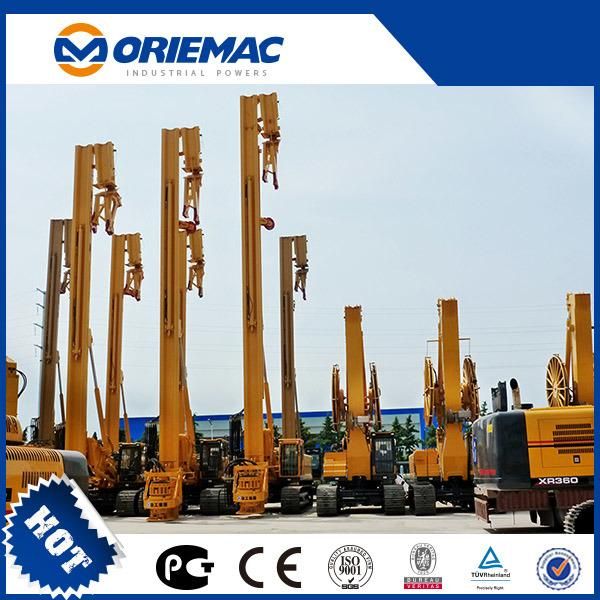

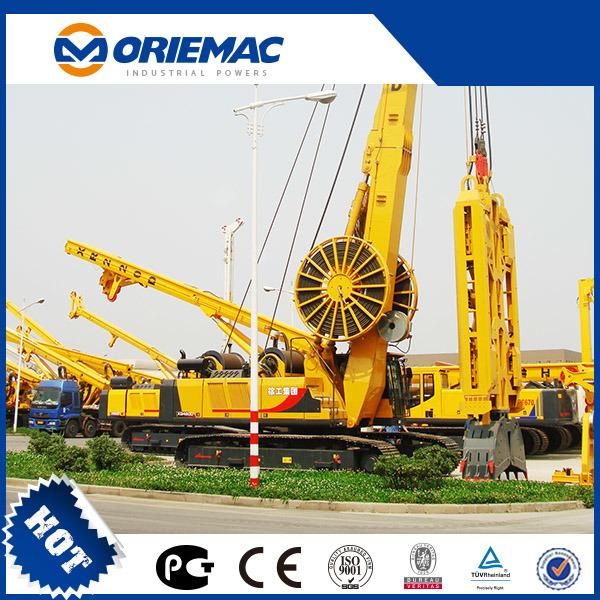

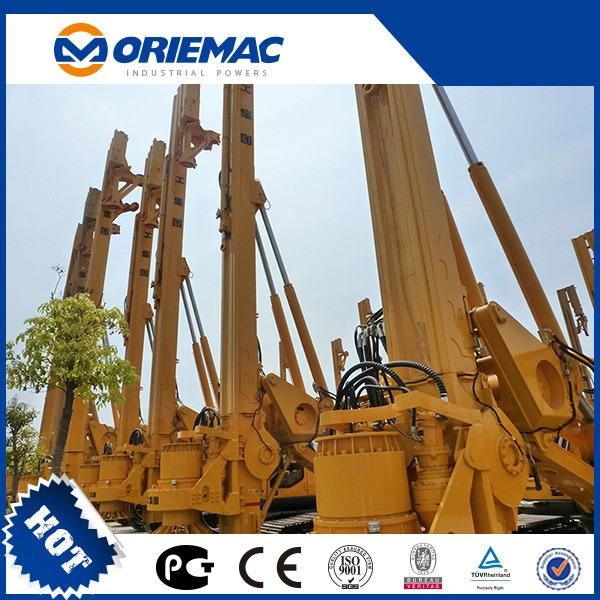

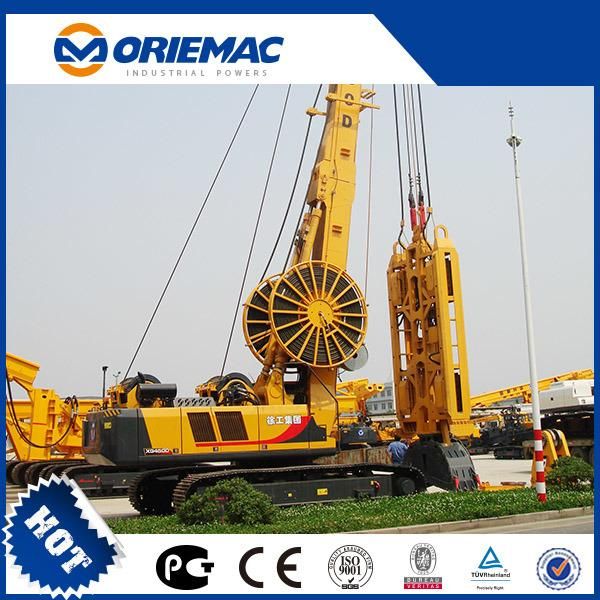

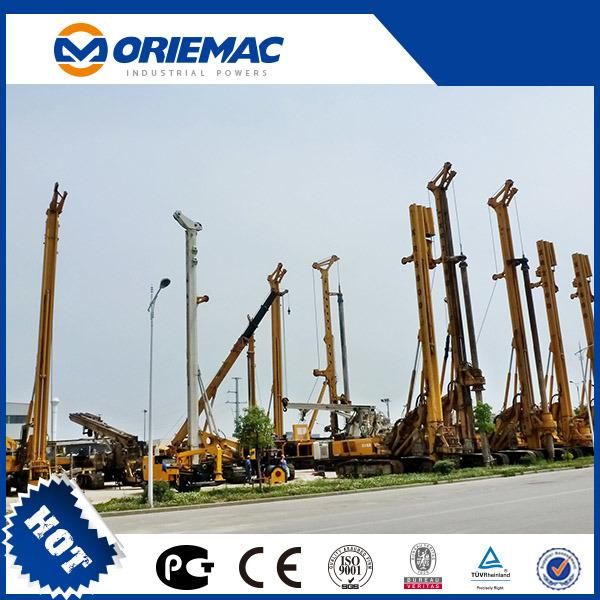

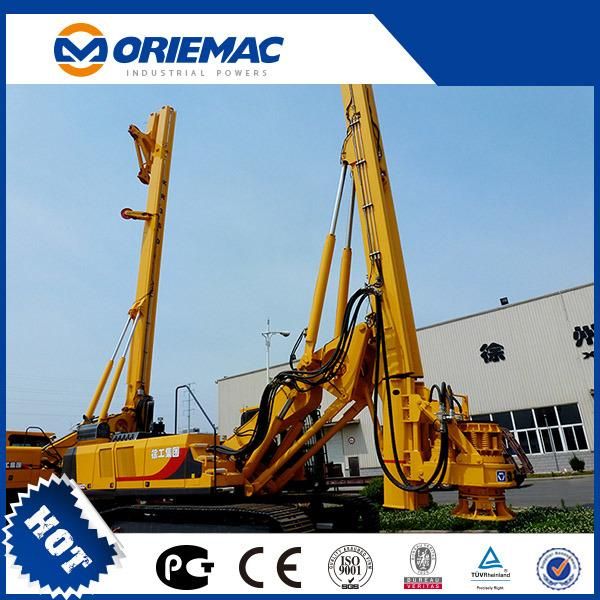

ORIEMAC Piling Machinery Brand New Rig Rotary Drilling Rig Xr180d Drill Machine

The design of the double boom structure bring a significant improvement in stability and convenient for transport.



The main hydraulic system adopts the negative flow control, and adopts the main power control and limit power control together which can increase the system efficiency and make the most of the engine power. It adopt three-in-one colling system which is tightly packed and has a high-effeciency in cooling.



The imported turbo-supercharged engine (meeting EU-III standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.



It adopts the luffing mechanism of large triangle form to ensure the stability of construction of big holes and deep piles in hard formation.



It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.



The rotary drive can switch from Nromal Mode, Rock Mode and Energy-Saving Mode, the user can select a corresponding mode of the rotary drive according to the specific working conditions, which can greatly improve the working efficiency and low the fuel consumption.



Optional configuration according to customers' requirement, E.g: Crowd winch, Outrigger cylinder, Sleeve-driven and so on.

It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability .





Specifications:

Max. Pile Diameter: 3000mm

Max. Pile Depth: 120 m

Max. Output Torque: 460 kN.m
