• Model NO.：XR400D
• Rated Speed：2100 Rpm
• Max. Pile Diameter：3000 mm
• Max.Drilling Depth：110 M
• Warranty：12 Months
• Transport Package：Nude Package
• Specification：ISO CE GOST
• Trademark：ORIEMAC
• Origin：Beijing
• HS Code：84304122
• Production Capacity：150PCS,Month

Basic Info.

Model NO. XR400D Rated Speed 2100 Rpm Max. Pile Diameter 3000 mm Max.Drilling Depth 110 M Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

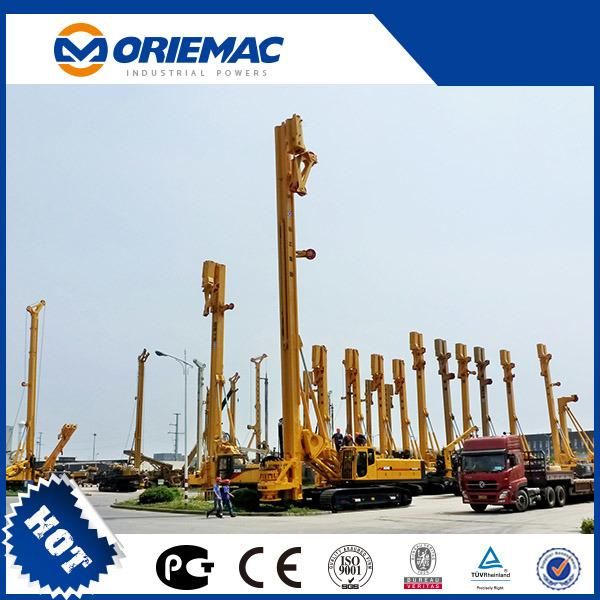

Heavy Equipment ORIEMAC 4000mm Xr400d Concrete Machine Drill Rotary Drilling Rig

The design of the double boom structure bring a significant improvement in stability and convenient for transport.



It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience;



Imported Cummins electric control turbo-supercharged with three gears engine is used, it has strong power. According to specific working conditions, the users can select a corresponding gear of the engine, getting the drilling rig working as three engine.



The main hydraulic system adopts the negative flow control, and adopts the main power control and limit power control together which can increase the system efficiency and make the most of the engine power. It adopt three-in-one colling system which is tightly packed and has a high-effeciency in cooling.



It adopt the single-rope for main winch to figure out the wear of the steel rope, and extend the life-span.

The rotary drive can switch from Nromal Mode, Rock Mode and Energy-Saving Mode, the user can select a corresponding mode of the rotary drive according to the specific working conditions, which can greatly improve the working efficiency and low the fuel consumption



Optional configuration according to customers' requirement, E.g: Crowd winch, Outrigger cylinder, Sleeve-driven and so on.



It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability .

Specifications:

Max. Pile Diameter: 3000mm

Max. Pile Depth: 110 m

Max. Output Torque: 400 kN.m
