• Model NO.：SD6N
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Origin：China
• Production Capacity：500

SpecificationsOperation weight (Kg) (not including ripper)16500Ground pressure(KPa)52.80Track gauge(mm)1880Gradient30°/25°Min. ground clearance (mm)445Dozing capacity (m³)4.5Blade width (mm)3320Max. digging depth (mm)592Overall dimensions (mm)             5098×3320×3108EngineTypeC6121ZG55Rated revolution (rpm)1850Rated power (KW/HP)131Max. torque (N•m/rpm)812/1300Rated fuel consumption(g/KW•h)                    ≤215Undercarriage systemTypeSuspended structure of equalizer bar, Swing type of sprayed beam.Number of track rollers (each side)7Number of carrier rollers (each side)2Pitch (mm)203Width of shoe (mm)560Gear                       1st            2nd            3rdForward  (Km/h)            0-4.0           0-6.9           0-10.9   Backward (Km/h)            0-4.8           0-8.4           0-12.9     Implement hydraulic systemMax. system pressure (MPa)15.5 Pump typeGears pumpSystem output(L/min)167Driving systemTorque converter     Hydraulic mechanical torque convertor with external power split Transmission    Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.Steering clutch  Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.     Braking clutch    Brake is oil two direction floating band brake operated by mechanical foot pedal.Final drive         The final drive are double reduction with spur gear and   segment sprocket.

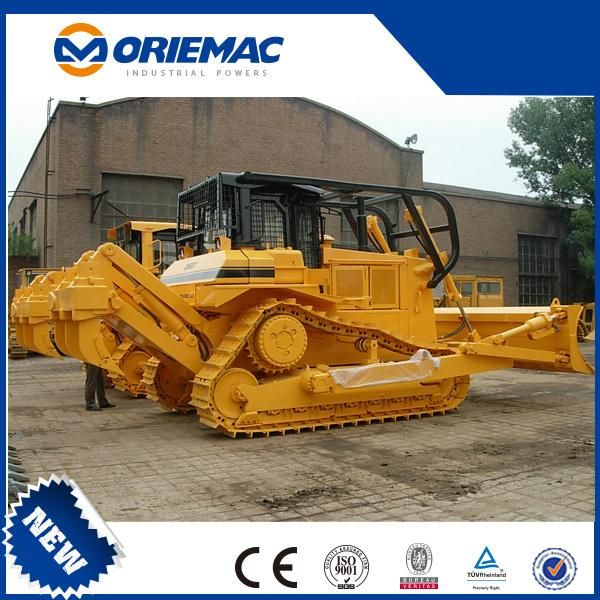

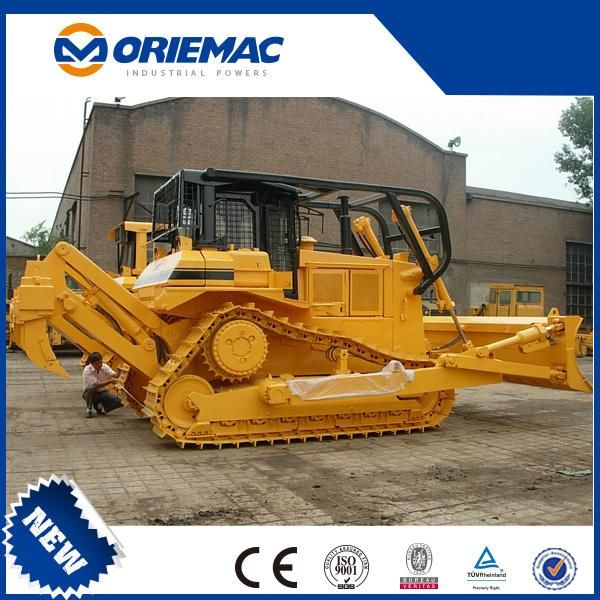

Picture show:



About Company:
