• Model NO.：FL936F
• Type：Small Loader
• Bucket Capacity：3m3
• Transport Package：40hq
• Trademark：foton
• Origin：China
• HS Code：8430411900
• Production Capacity：100units,Month

Basic Info.

Model NO. FL936F Type Small Loader Bucket Capacity 3m3 Transport Package 40hq Trademark foton Origin China HS Code 8430411900 Production Capacity 100units/Month

Product Description

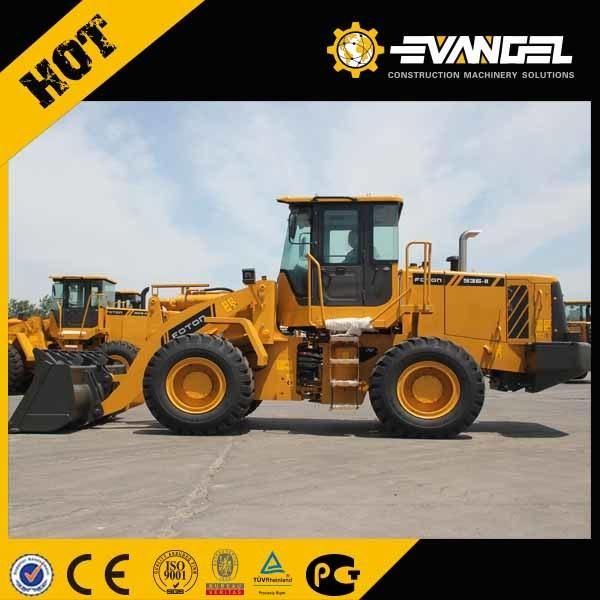

Foton 3 Ton Wheel Loader FL936F pay loader bucket shovel

Introduction of complete machine and product's working condition:
 LOVOL FL936F-II is a long wheelbase 3T wheel loader. This model is Mainly used for construction sites, road construction, mining and stations.  Good for variety of working conditions : ore, sand and gravel, coal, earth, etc., Can be equipped with grass or wood grapper to meet  special working.

Main sales territory:
In Latin America, Africa, the Middle East, Asia Pacific, Russian regions.

Matching auxiliary tools:
Various optional attachments including Coal Bucket, Quick Coupling Bucket, Pallet Fork, Log Grabber, Grass Grabber and etc.

Parameters

Major Parameter
Rated load(kg)	3000
Operating mass (standard)(kg)	10270
Bucket capacity(m3)	1.8
Boom lifting time(S)	5.7
Sum of three items(S)	10.5
Max. traction force(kN)	92
Max. breakout force(kN)	120
Forward speed range(km/h)	0-37
Backward speed range(km/h)	0-31.5
Gearbox shift	Front : 4 gears rear: 2 gears
Max. gradeability(°)	30
Steering angle(°)	36
Outside of bucket(mm)	6005
Hydraulic oil volume(L)	110
Outline dimension(mm)	7230*2424*3230
Wheelbase(mm)	2750
Track(mm)	1850
Min. grounding distance (at hinge position)(mm)	375
Max. unloading height(mm)	2990
Unloading distance at max. unloading height(mm)	1100
Model	YC6B125-T20
Type	Six-cylinder, in-line, direct injection, natural inspiration, and water cooling
Rated power(Kw/rpm)	92/2200
Max. torque / speed(N.m/rpm)	463/1400-1600
Cylinder bore x stroke(mm)	Φ108*125
Displacement(L)	6.871
Fuel consumption rate at rated working condition(g/Kw.h)	235
Fuel tank capacityt(L)	140
