Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Type：Wheel Excavator
  • Usage：Earth Moving
  • Bucket：Shovel
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：HQ912
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：0.1~0.5m³
  • Size：Small-Scale
  • Certification：CE, ISO9001: 2000, SGS,Rops&Fops
  • Condition：New
  • Loading Weight：1200kg
  • Engine：Euro III
  • Power：37kw
  • Transport Package：3 Units in One Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Specifications of HQ912 wheel loader :1,Engine Details Model:Changchai 4L68 / Xinchai 490 ( Euro III and EPA )Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine Rated Power:37kwRated Speed: 2200 r/p. Min (rpm) Fuel Consumption ratio in standard working condition:  230g/kw. H  2,Transmission SystemType:Fixed-spindle Power shift Shift gear control oil pressure:1.2~1.5MPa Rated input speed: 2500 (rpm)   3,Bucket Bucket Capacity:0.6 m3 - 0.8m3Bucket width:1700mm - 1900mmBucket type:Heavy-duty bolt on teeth Max. Breakout Force: 38KN Rated Load: 1200kg Operating Weight:3400kg  4,Overall Dimensions  Overall Length (Bucket on ground position):4800mmOverall Height : (a) Ground to Cab Top:2700mm(b) Dumping Height: 2650mm(c) Overall Width: 1730mm  5, Operating Specifications Steering System:Articulated Frame with hydraulic power steering Min Turning Radius:4500mm Driving System: Hydraulic converter   6,Brake System Service Brake: Four Wheel Hydraulic spread-shoed brake Parking Brake: Hand operated  7,Tyre  Model:11.00-16 / 12-16.5   8,Wheelbase : 2005mm  9,Track:1400mm

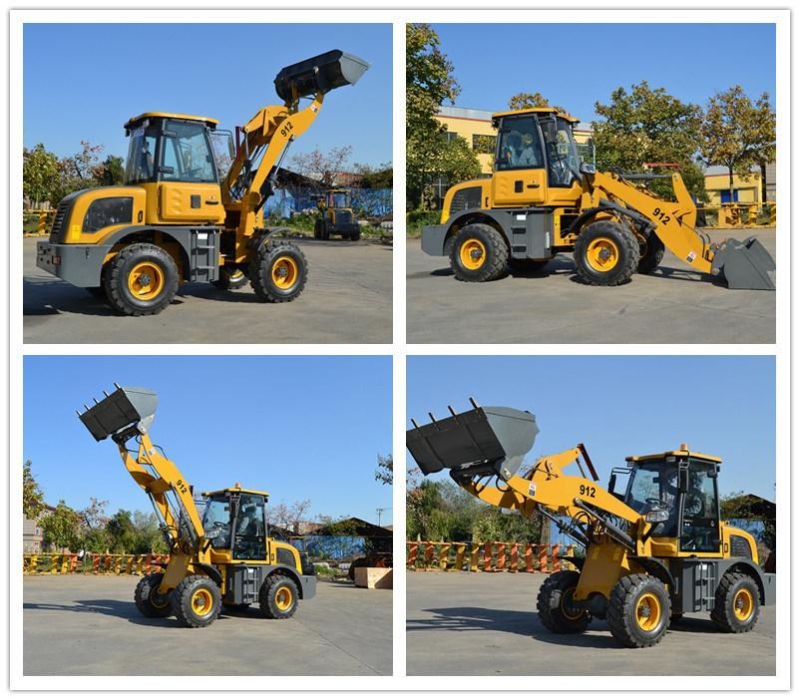

3, More Details photos of HQ912 Wheel loader:


Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS

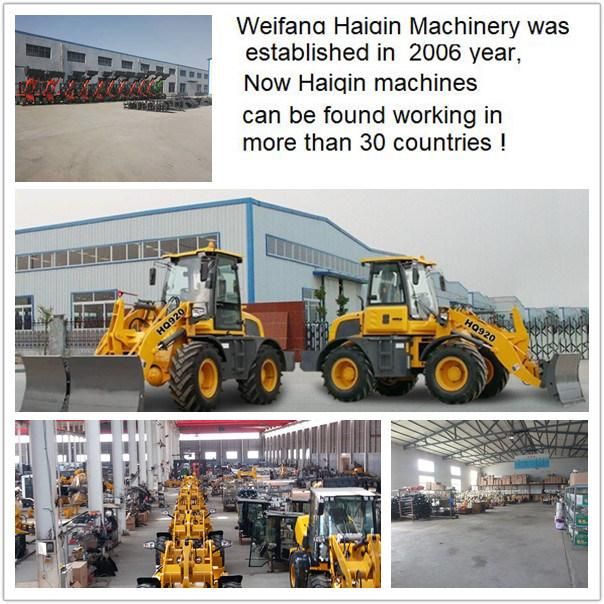

4,Factory introduction of Haiqin Machinery

Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS

5, Working Case in the foreign countries of Haiqin Machinery' Loaders.

Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS

6,Certificate of Haiqin Machinery

Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS

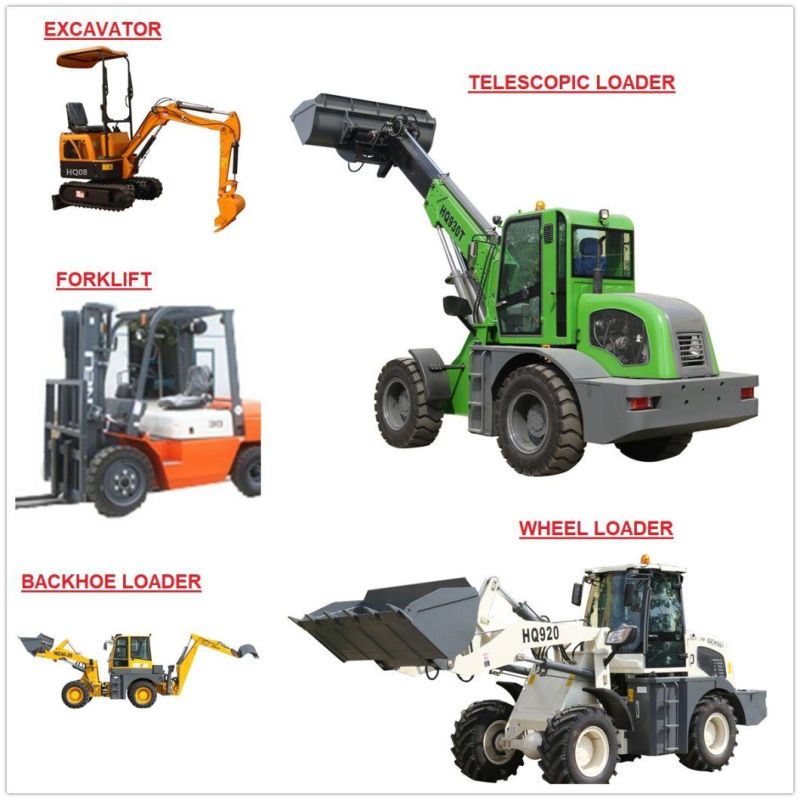

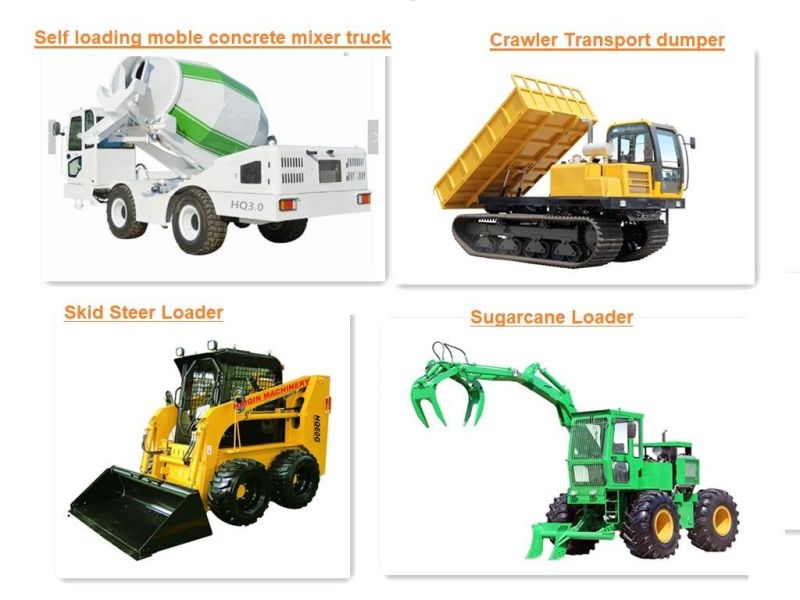

7,MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY


Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS
Multi-Function Germany Mini Loader (HQ912) with CE, ISO, SGS



8,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
