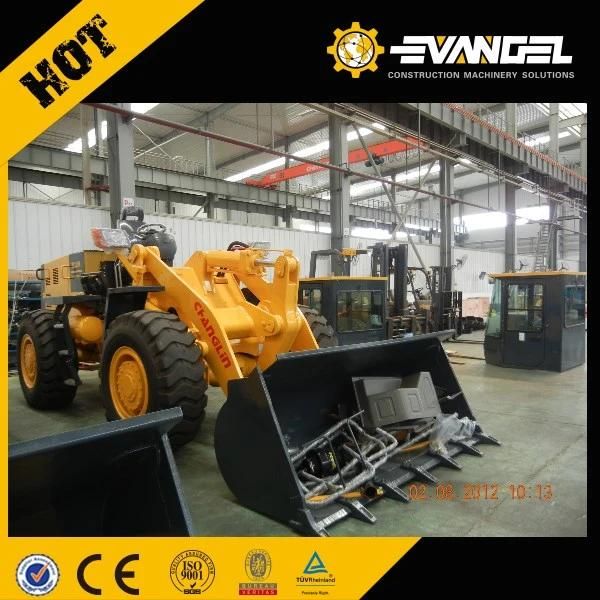

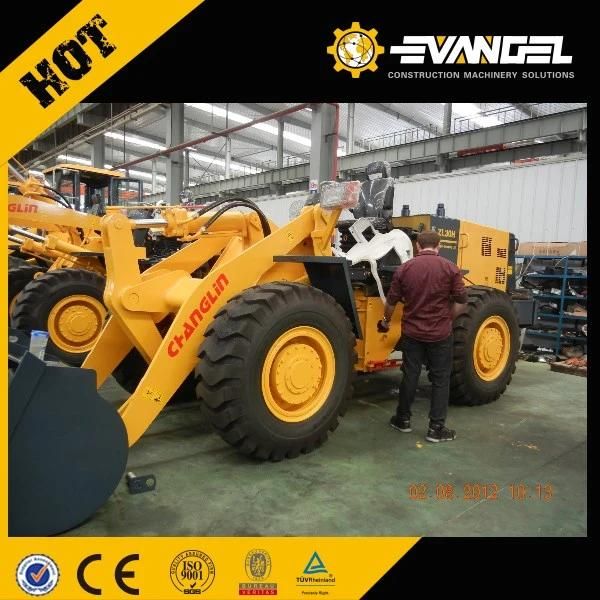

• Model NO.：ZL30H
• Operating Weight：10200kg
• Bucket Capacity：1.7cbm
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：74~147kw
• Color：Yellow
• Transport Package：N,P
• Specification：CE
• Trademark：Changlin
• Origin：Xuzhou, China
• HS Code：84295100
• Production Capacity：30 Sets,Month

Overall Dimension 1Length(with bucket on ground)6863(mm) 2Width(to outside of wheels)2305mm) 3Bucket width2460(mm) 4Height(To the top of the cab)3095(mm) 5Wheel base2750(mm) 6Tread1855(mm) 7Min. ground clearance370(mm) Main Technical Specification 1Rated load3000(Kg) 2Operating weight10200KG 3Rated bucket capacity1.7(m 3 ) 4Max. breakout force              96kN 5Max. dump clearance2850(mm) 6Dump reach1030(mm) 7Dump angle at any position≥45 0 8Min. turning radius  (1) Outside of bucket5600(mm) (2) Outside of rear wheel5205(mm) 9Pivot angle frame38 + 1 0 10Oscillating angle of rear axle+ 11 o 11Lifting time of bucket≤5.1(sec.) 12Lowering time of bucket≤3.0(sec.) 13Dumping time≤1.1(sec.) 14Traveling speed(Km/h)3 forward and 3 reverse                                                     (1) 1st gear forward7.3 (2) 2nd gear forward15.7 (3) 3rd gear forward35 (1) 1st gear reverse7.8 (2) 2nd gear reverse16.8 (3) 3rd gear reverse36 Diesel engine 1ModelDongfeng Cummins  6BT5.9 - C120 2TypeDirect injection. Turbocharged. Water cooling 3Rated output87(KW) 4Inter-bore of cylinder/stroke102 /120 (mm) 5Total exhaust of cylinder5.9 (L) 6Voltage of starting motor24(V) 7Rated speed2200(r/min) 8Max. Torque440(N.M) 9Starting typeElectric 10Min. specific fuel consumption220(g/Kw.h) Transmission System Torque Converter1Model YJH315A-4 (ShanxiAerospace Power)2Type3-elements.Single stage3Torque ratio2.44Cooling typePressure oil circulating Transmission case1ModelChinese Changlin2Typepower shift, spur gear constantly in mesh3Gear shift position 3 Forward and 3 reverse gears Axle and Tire1Type of main reducerspiral bevel gear, single stage2Gear ratio of main reducer3.8893Type of final reducerSingle stage planetary4Gear ratio of final reducer4.9415total ratios19.2166Max. traction83kN7Specifications of tire17.5-25-12PRWorking Device Hydraulic System1Model of oil pumpCBGj21002System pressure160(kgf/cm 2 )3Model of distribution valveDF325(D*L)Dimension of lifting cylinder125*70*697(mm)6(D*L)Dimension of tilting cylinder150*70*466 (mm)Steering  System1TypeMiddle articulated frame. Co-axis flow amp. Steering2Model of steering pumpCBGj20503Model of steering gearBZZ1-E400C/FKA-1430204System pressure14MPa5Dimension of steering cylinder70*40*323(mm)Brake System1Type of traveling  brakeAssisted oil.4 wheel brake2Air pressure7-8(kgf/cm 2 )3Type of emergency brakeAutomatic cutting air brake4Type of parking brakeinner expand hoof
Automatic boosting. inner expand hoofOil Capacity1Fuel(diesel)120(L)2Engine lubricating oil20(L)3Oil for converter and gear box32(L)4Oil for hydraulic system120(L)5Oil for driving axlesF/R16/15(L)
