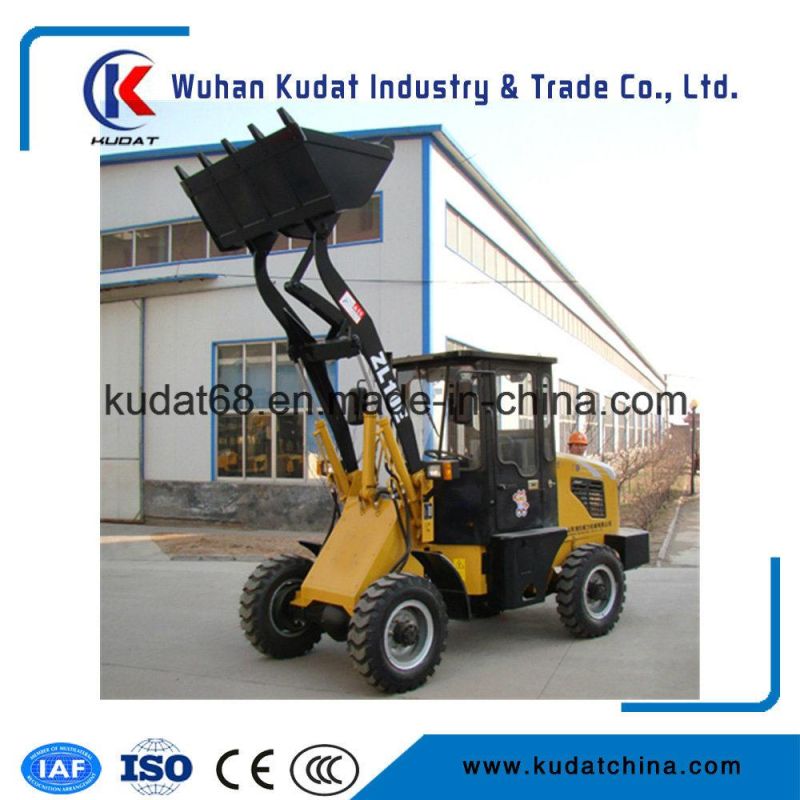

• Model NO.：ZL10E
• Type：Small Loader
• Rated Load (Kg)：800
• Bucket Capacity (M3)：0.4
• Wheel Base (Mm)：2170
• Min Turning Radius (Mm)：4600
• Dumping Height (Mm)：2300
• Drive Mode：Four Wheel Drive
• Machine Weight (Kg)：2350
• Overall Dimensions (Mm)：4700*1600*2350
• Engine Model：Changchail28
• Rated Power of Engine (Kw)：20
• Transport Package：Nude Packing
• Specification：CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. ZL10E Type Small Loader Rated Load (Kg) 800 Bucket Capacity (M3) 0.4 Wheel Base (Mm) 2170 Min Turning Radius (Mm) 4600 Dumping Height (Mm) 2300 Drive Mode Four Wheel Drive Machine Weight (Kg) 2350 Overall Dimensions (Mm) 4700*1600*2350 Engine Model Changchail28 Rated Power of Engine (Kw) 20 Transport Package Nude Packing Specification CE Trademark KUDAT Origin China Production Capacity 2000PCS/Year

Product Description

Engine: Yanmar 4TNV88-BSBKC (35HP)
Control System: Hydraulic pilot control with joystick
Steering: fully adjustable steering.
Seat: adjustable seat with safety belt and arm-rest.
Others: Wide tires and Quick release is standard equipments of the loader.

Specifications:
Rated Load capacity 1000 kg
Bucket capactiy 0.5 cubic meter
Track 1170 mm
Wheelbase 1790 mm
Mini turning radius 4450mm
Mini ground clearance 240 mm
Lifting height 3500 mm
Unload height 2300 mm
Unloading distance 1080 mm
Raising time 4s

3 cycles summed up time 9 S
Max. breakout force 32 Kn
Drive mode 4x 4 WD
Tires Standard 12-16.5
Walking speed 15km/h
Kerb weight 2500 kg
Overall size 4530*1500*2500 mm
Max. turning angle 35 degree
Engine model: Yanmar 4TNV88-BSBKC

Rated power 25.2 Kw(35HP)
Rated rotation 2200 rpm
Hydraulic system 16Mpa
Transmission Hydrostatic, 4WD
Torque converter Hydraulic motor, ZK/J160
Gear-shifting style Counter-shaft powershift
Gearbox Hydraulic stepless, High/Low
Bucket's self-leveling function yes
Hydraulic tank 55 Litres
Fuel Tank 50 Litres

Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2500kg
Rated bucket capacity	0.5CBM	Dimension(L×W×H)	4530*1500*2500mm
Bucket width	1550mm	Engine model	Yunnei 490
Track base	1200mm	Engine type	In-line arrangement, water cooled, four-cycle diesel Engine
Wheel base	1750mm	Engine starting mode	Electric
Min. swerve diameter	4400mm	Rated speeds	2200rpm
Min. ground clearance	240mm	Rated power	37kW
Dump height fully raised	2650mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Lifting time	4s	Color	According to the requirements of customers
Hydraulic cycle time	9s	Tyre	12-16.5
Max. tilt angle	300	Driving mode Four-wheel drive	Driving mode Four-wheel drive
Max. bucket breakout force, lift cylinder	32KN
