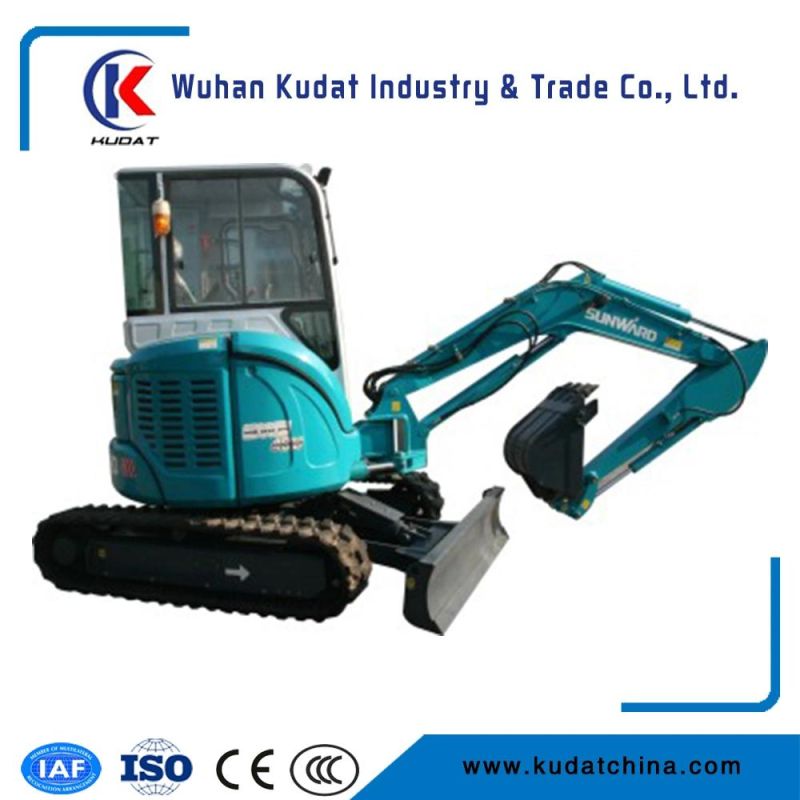

Mini Crawler Excvator with Zero Tail (SWE40U)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Type：Crawler Excavator
  • Usage：GM Excavator
  • Bucket：Backhoe
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：0.1~0.5m³

Base Info

  • Model NO.：SWE40U
  • Size：Small-Scale
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Color：Blue
  • Function：Earthmoving
  • Operating Weight(Kg)：4130kg
  • Standard Bucket Capacity(M3)：0.11cbm
  • Height/ Width/ Length(mm)：2540,1745,4950
  • Bucket Digging Force(Kn)：26.4
  • Max Traction(Kn)：33.5
  • Swing Angle(°)：50(Rh) 85(Lh)
  • Travelling Speed(Km/H)：2.7,4.2 Km,H
  • Max Gradeability(°)：30
  • Transport Package：Bulk
  • Specification：CE
  • Trademark：kudat
  • Origin：China
  • Production Capacity：500PCS,Year

Description

 Operating Weight(kg)4130Standard bucket Capacity(m3)0.11Height/ width/ length(mm)2540/1745/4950Bucket digging force(kN)26.4Max Traction(kN)33.5Swing angle(°)50(RH) 85(LH)Travelling speed(km/h)2.7/4.2 km/hMax gradeability(°)30Ground pressure(kPa) Swing speed(rpm)10.5ENGINEKubota D1803-M-DI-E3B-SWD-1Type4 cycle, 4 cylinder, water cooled, vertical overhead valveBattery(V/AH)12 / 80Max power(kW/rpm)23.8 / 2300Fuel tank(L)38HYDRAULIC SYSTEM Main Pumpstwo variable pumps and one gear pumpWorking pressure(Mpa)22.5Flow(L/min)2*36Gear pump Pressure(Mpa)20.5Flow(L/min)28Froe runner pump Pressure(Mpa)3.5Flow(L/min)8Hydraulic Oil Tank Capacity(L)43Mini Crawler Excvator with Zero Tail (SWE40U)
