XCMG 14ton Double Drum Roller Xd143 Vibratory Compactor Roller
XCMG E-Commerce Inc.- Travel Speed：0-12km,H
- Certification：CE, ISO 9001:2000
- Condition：New
- Engine Brand：Shangchai
- Nominal Amplitude：0.30,0.80
- Vibration Frequency：67,50Hz
Base Info
- Model NO.：XD143
- Power(W)：111kw
- Transport Package：Comply with Export Packaging Requirements
- Specification：5146*2317*3099mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Year
Description
Basic Info.
Model NO. XD143 Power(W) 111kw Transport Package Comply with Export Packaging Requirements Specification 5146*2317*3099mm Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per YearProduct Description
Description

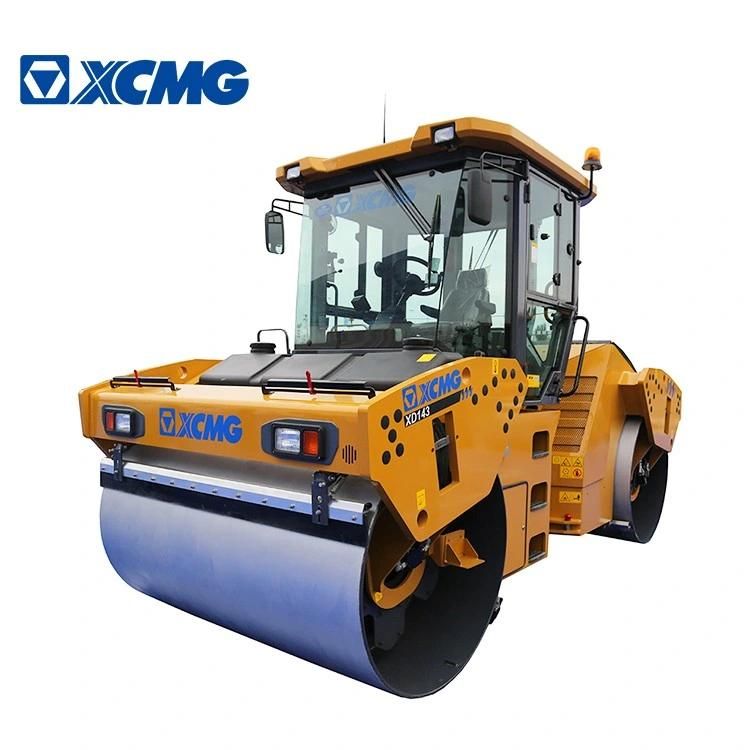

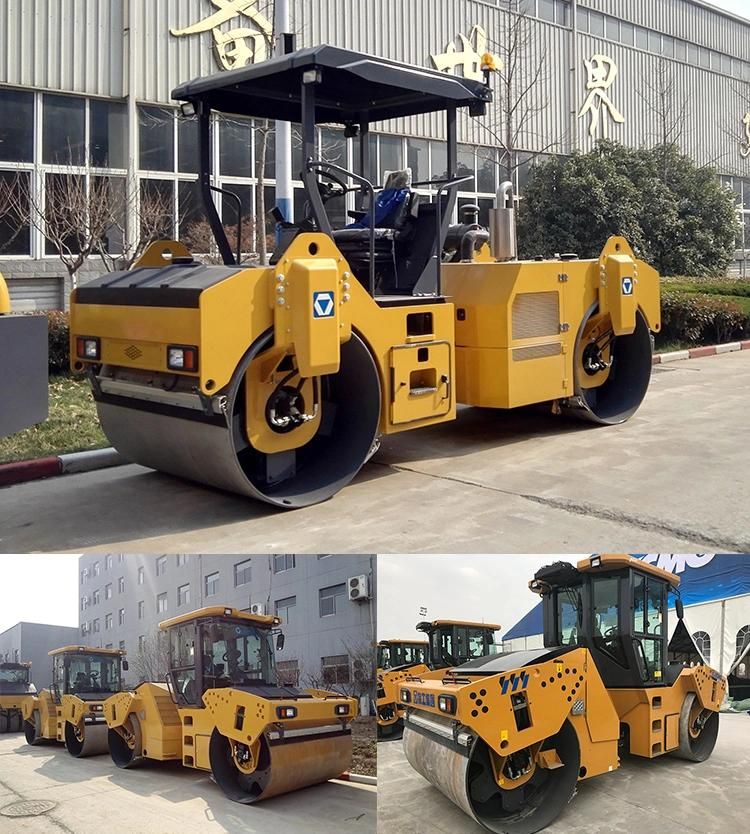

XCMG 14ton double drum roller XD143 vibratory compactor Roller
XD133S vibratory roller is suitable for compaction of roads, parking lots, airports and other large projects. It can also be used for compacting roadbeds and sub-base materials, with a wide range of applications. The product uses the world's most advanced intelligent control system, and the control system is based on CAN-BUS bus communication technology.
Specification| Type | Unit | XD143 |
| Operating weight | kg | 14000 |
| load applied on front drum | kg | 7000 |
| load applied on rear drum | kg | 7000 |
| Speed range | Km/h | Gear l 0-6/Gear ll 0-8/Gear lll 0-12 |
| Thecretical Gradeability | % | 35 |
| Min. turning radius(Inner/Outer) | mm | 4670/6800 |
| Max.crab-walking distance | mm | ±160 |
| Swing angle | ° | ±8 |
| Turning angle | ° | ±35 |
| Static linear load | N/cm | 330/330 |
| Nominal amplitude | mm | 0.30/0./80 |
| Vibration frequency | Hz | 50/67 |
| Exiting force(H/F) | kN | 110/170 |
