• Model NO.：937h
• Type：Medium-sized Loader
• Transport Package：Nude
• Specification：3ton
• Trademark：CHANGLIN
• Origin：Jiangsu China
• HS Code：8429510000

Basic Info.

Model NO. 937h Type Medium-sized Loader Transport Package Nude Specification 3ton Trademark CHANGLIN Origin Jiangsu China HS Code 8429510000

Product Description

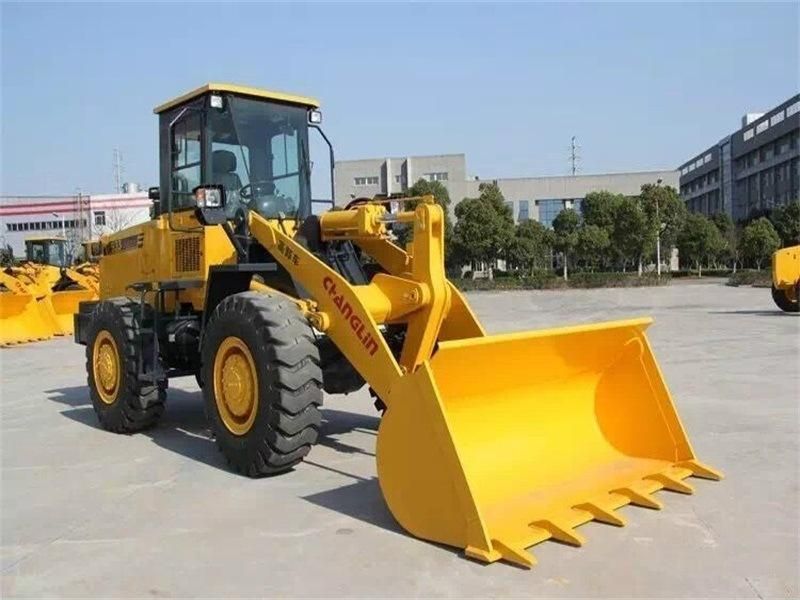

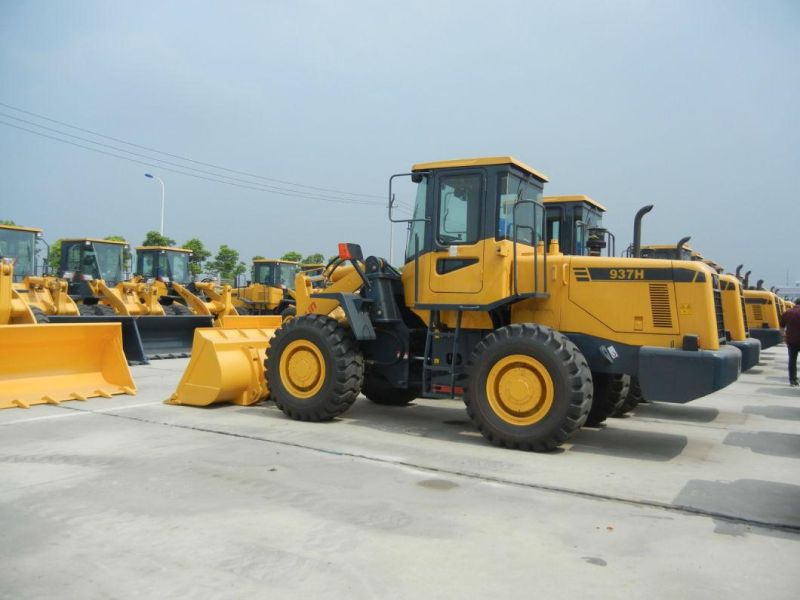

Earth Moving Loader New 3 ton Changlin 937H 1.7cbm Wheel Loader
Product description

1)Adopting the  strong power, low fuel consumption.

2)Bivariate system uses a unique sub-structure, easy maintenance and smooth power transmission.

3)Unit time for loading and unloading of materials.

4)The state-of-the-art hydraulic system design, not only to improve the work system's ability to shovel, but also  the oil temperature of the hydraulic system ,so that prolong the service life of the hydraulic components.

5)Can be equipped with automatic hammer,snow-shoving board, coal buckte,rock bucket,high-dump device are available.

Parameter

Main Specification	Unit
Bucket Capacity	m3	1.7
Rated Load	kg	3000
Max. Digging Force	kn	96
Max. Traveling Force	kn	105
Operating Weight	kg	10200
Model of Engine		TD226B/Yuc haiYC6B125
Rated Power	kw	92
Rated Speed	r/min	2200
Max. Torque	N.m	500
Forward Travelling Speed	km/h	6.6/13.8/30.1
Reverse Travelling Speed	km/h	8.2/17/29
Max. Grade Ability		27°
Steering Angle		±38°
Mini Steering Radius	mm	4885
Lifting Time	s	5.1
Lowering Time	s	3.0
Dumping Time	s	1.1
Standard Tyre		17.5-25-12PR
Dumping Clearance (45°)	mm	2934
Dumping Reach (45°)	mm	1043
Dimension(L*W*H)	mm	6923*2305*3136
