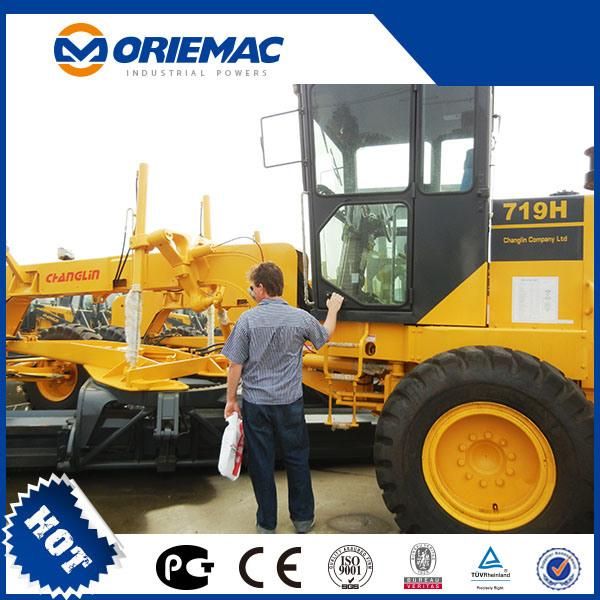

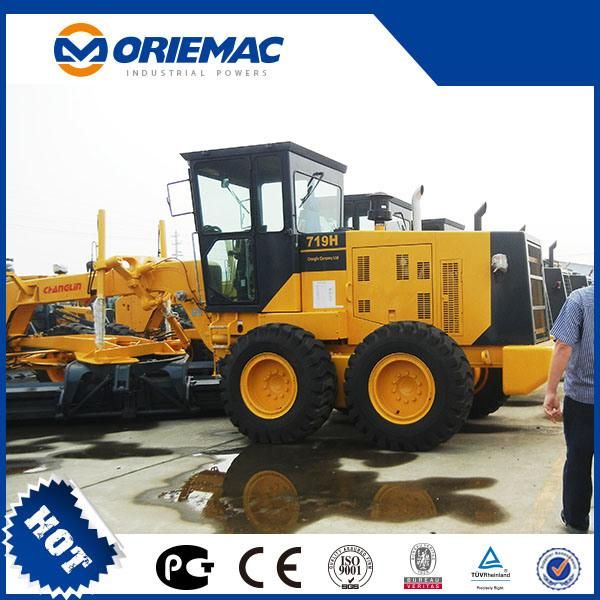

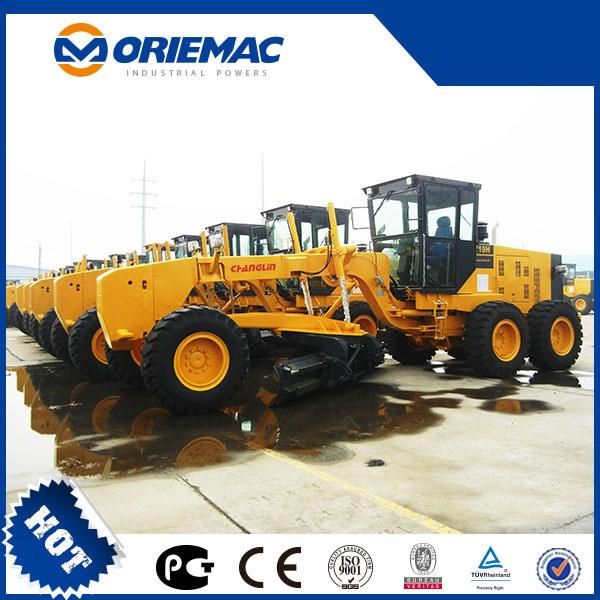

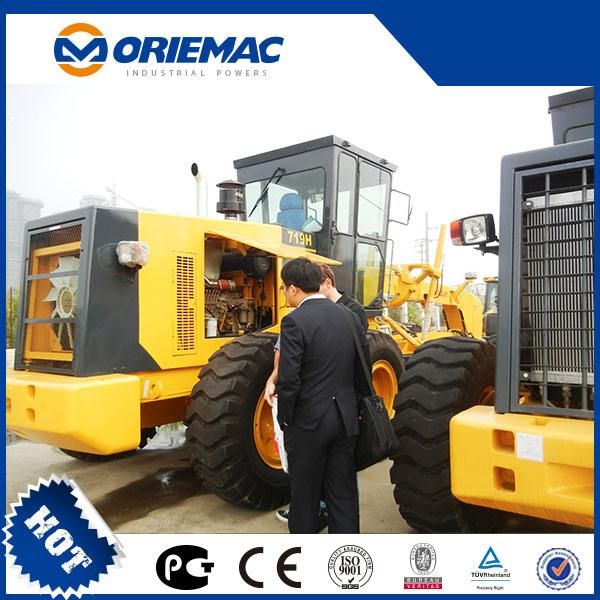

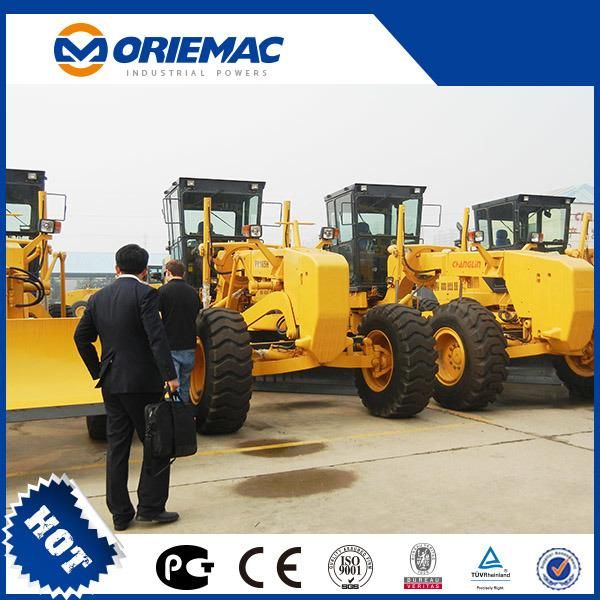

Changlin Motor Grader Rear Ripper 719h Grader for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Medium-sized Grader
Base Info
- Model NO.：719H
- Transport Package：in Nude
- Specification：9235*2600*3270mm
- Trademark：Changlin
- Origin：Shandong, China
- HS Code：84292090
- Production Capacity：5000PCS,Year
Description
Main Technical Specification
Operating weight
12000kg
Blade length
3658mm
Blade height
545mm
Shovel Blade thickness
16mm
Max lifting height
410mm
Max grading depth
560mm
Min. turning radius
6600mm
Pivot angle frame
+260
Max turning angle(front wheel)
+490
Oscillating angle of front axle
±160
Min ground clearance
430mm
Traveling speed(Km/h),6 forward and 3 reverse
(1) 1 gear forward
6.9
(2) 2 gear forward
10.7
(3) 3 gear forward
17.3
(4) 4 gear forward
26
(5) 5 gear forward
37.8
(6) 6 gear forward
53.4
(7) 1 gear reverse
6.9
(8) 2 gear reverse
17.3
(9) 3 gear reverse
37.8
