• Model NO.：SD16
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：5140*3388*3032mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：5000PCS,Year

ITEMUNITSD16L×W×H (Ripper not included)mm5140×3388×3032Operating weight (Ripper not included)t17Engine-Shangchai SC11CB184G2B1/ Weichai WD10G178E25Rated powerkW/rpm120/1850Gradeability°30Blade type-Straight tilt blade U blade Angle bladeBlade widthmmStraight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040Dozing capacitym3Straight tilt blade 4.5 U blade 5     Angle blade 4.3Ma× drop below ground of blademm540Lift height of blademm1095Ripper type-Three-shank ripperRipping depth of rippermm572Lifting height of rippermm592Number of carriers (each side)-2Number of track rollers (each side)-6Number of track shoes (each side)-37Width of track shoemm510Track gaugemm1880Ground length and ground pressuremm/MPa2430-0.067Pitchmm203.2Forward speedkm/h0-3.290-5.820-9.63Reverse speedkm/h0-4.280-7.590-12.53Net Engine Output at Rated RPM-148HP(110.5KW)

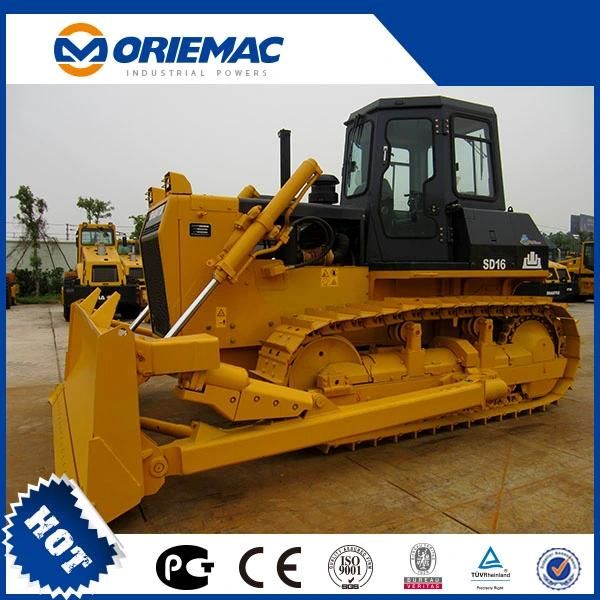

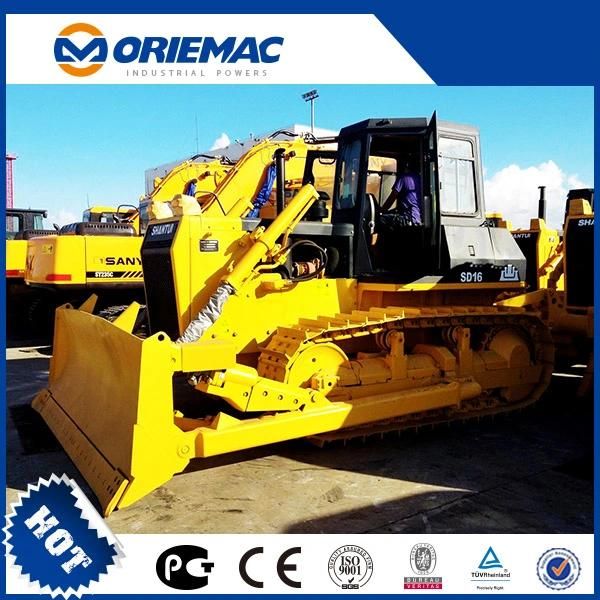

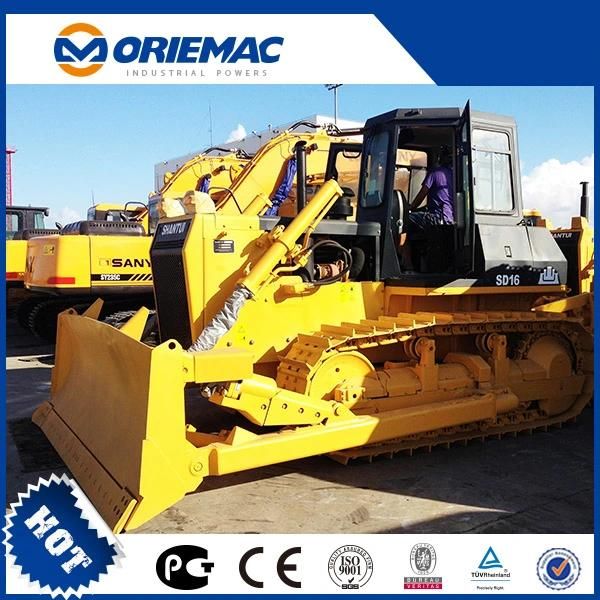

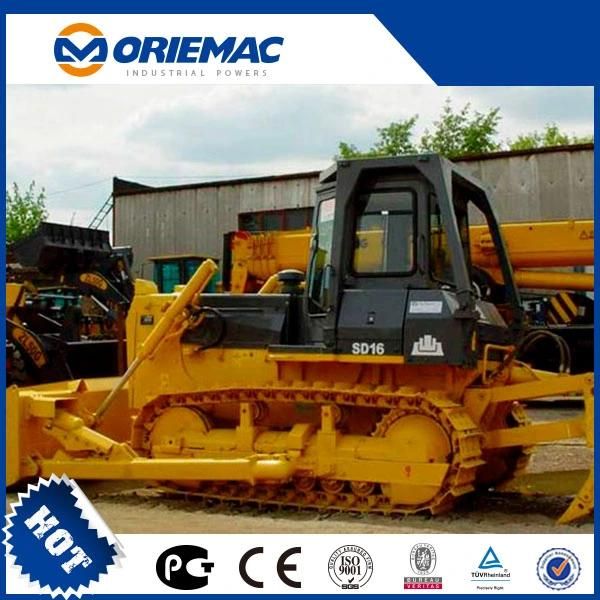

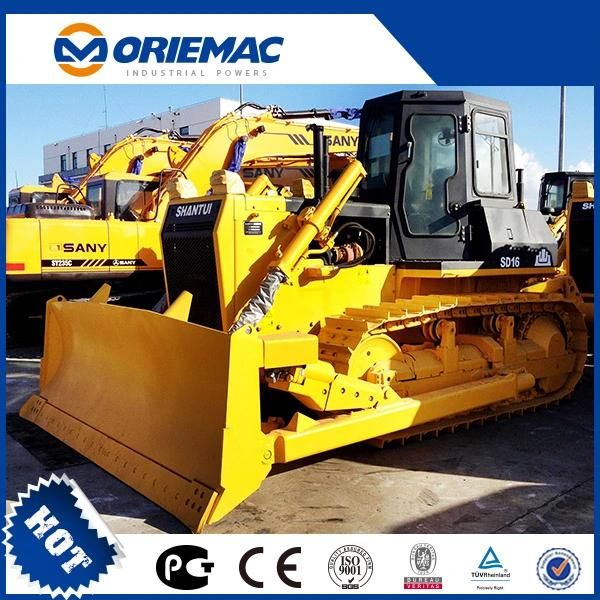

Product Pictures
