12tons Vibratory Double Drum Asphalt Road Roller Xd121 for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Slot Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：XD121
- Travel Speed：30cm,s
- Centrifugal Force：40KN
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Transport Package：in Nude
- Specification：6523*2350*3200mm
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- HS Code：8429401100
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. XD121 Travel Speed 30cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package in Nude Specification 6523*2350*3200mm Trademark ORIEMAC Origin Jiangsu, China HS Code 8429401100 Production Capacity 5000PCS/YearProduct Description
Mini Vibratory Road Roller Xd121 for SaleProduct Description
Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
| Technical | Unit | XS203 |
| Operationg weight | kg | 20000 |
| Axle load, drum | kg | 13500 |
| Axle load, wheels | kg | 6500 |
| Static linear load | kg/cm | 621 |
| Working width | mm | 2130 |
| Track radius, inner | mm | 6500 |
| Speed 1 | km/h | 0~0.42 |
| Speed 2 | km/h | 0~0.53 |
| Speed 3 | km/h | 0~0.67 |
| Speed 4 | km/h | 0~10.4 |
| Max gradeability | % | 50 |
| Engine manufactuer | # | Dalian Deutz |
| Engine Model | # | BF6M2012-18T3R |
| Power | kW | 134 |
| Horse power | hp | 182 |
| Speed | r/min | 2000 |
| Drive system | # | Hydraulic |
| Drum drive | # | Steel wheels+tires |
| Tyre size | # | 23.1-26-12PR |
| Fuel | L | 240 |

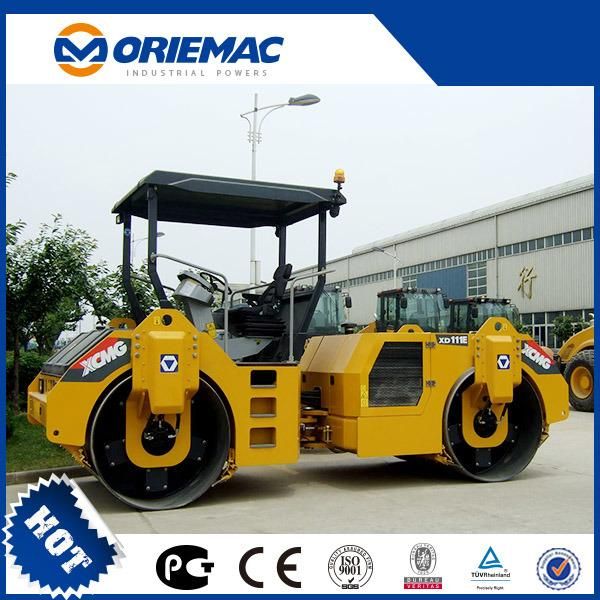

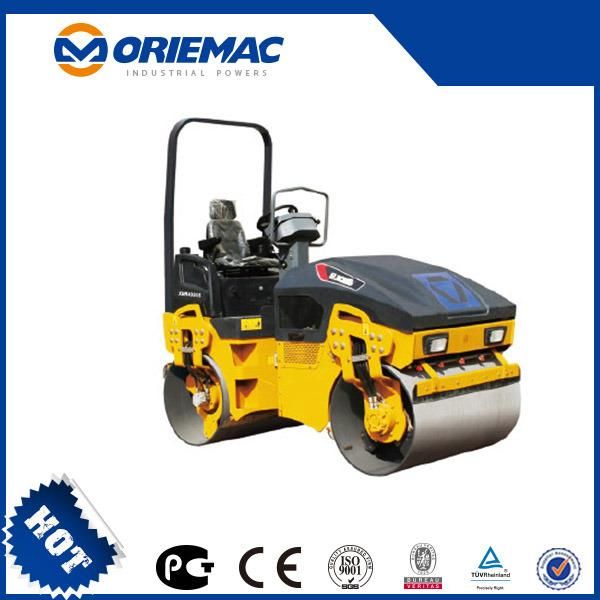

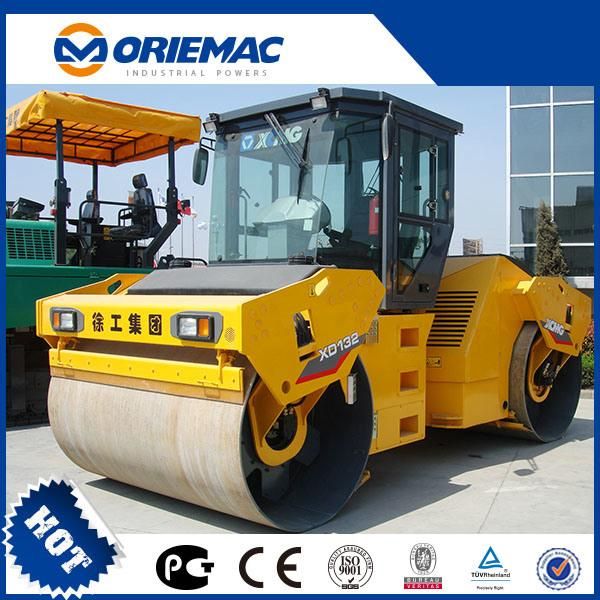

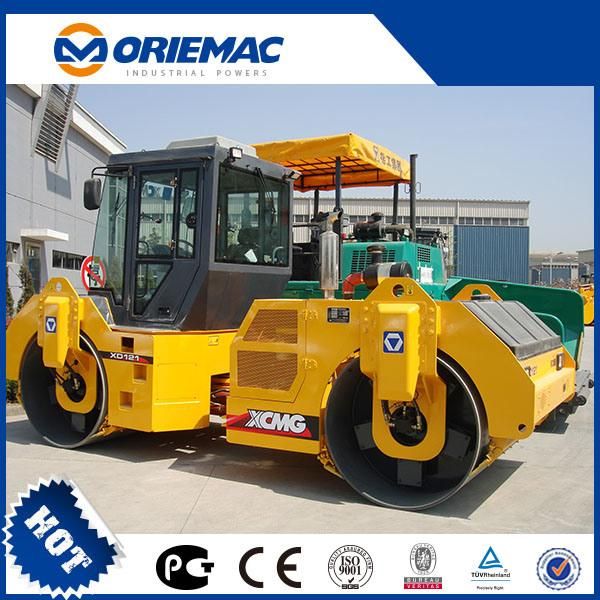

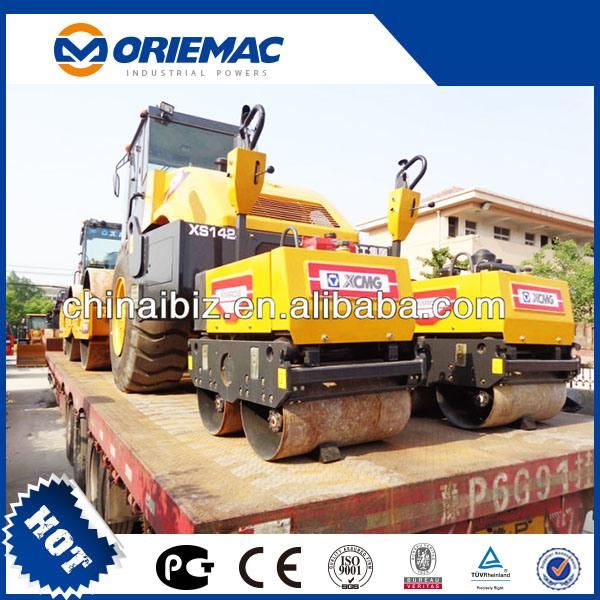

Product Pictures
