180HP Gr1803 Road Motor Graders with Ripper and Blade
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Large Grader
Base Info
- Model NO.：GR1803
- Transport Package：in Nude
- Specification：8900*2625*3420mm
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- HS Code：84292090
- Production Capacity：5000PCS,Year
Description
GR1803 motor graderBasic specification Engine model CUMMINS CTAA8.3 /SC 8D190G2B1 Rated power/speed 138kW/2200 140kW/2300rpm Dimension(LxWxH) 8900×2625×3470mm Operating weight(Standard) 15400kg Performance specification Travelling speed ,forward 5,8,11,19,23,38 km/h Travelling speed ,reverse 5,11,23 km/h Tractive force(f=0.8) 84KN Max. gradeability 30% Tire inflation pressure 260 MPa Working hydraulic pressure 18 MPa Transmission pressure 1.3~1.8MPa Operating specification Max. steering angle of front wheels Left / Right50° Max. lean angle of front wheels Left / Right17° Max. oscillation angle of front axle Up / down15° Max. oscillation angle of balance box Before / after15 Frame articulation angle Left / Right27° Min. turning radius using articulation 7.3m Blade Maximum lift above ground 450mm Maximum depth of cutting 500mm Maximum blade position angle 90° Blade cutting angle 28°_70° Circle reversing rotation 360° Moldboard height X width 3965×610mm

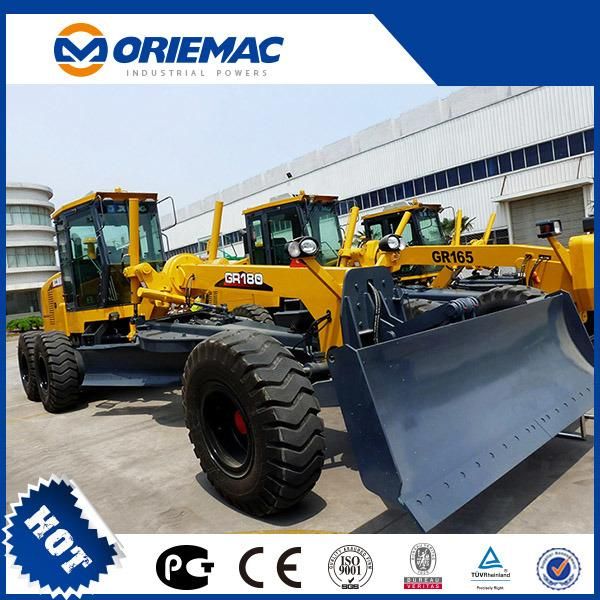

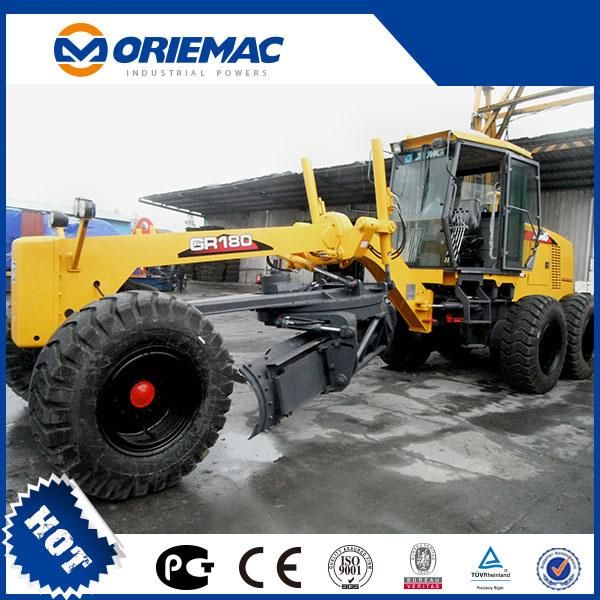

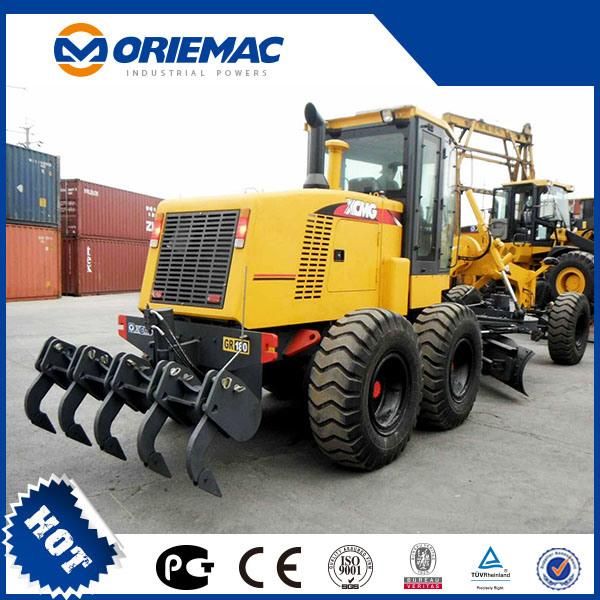

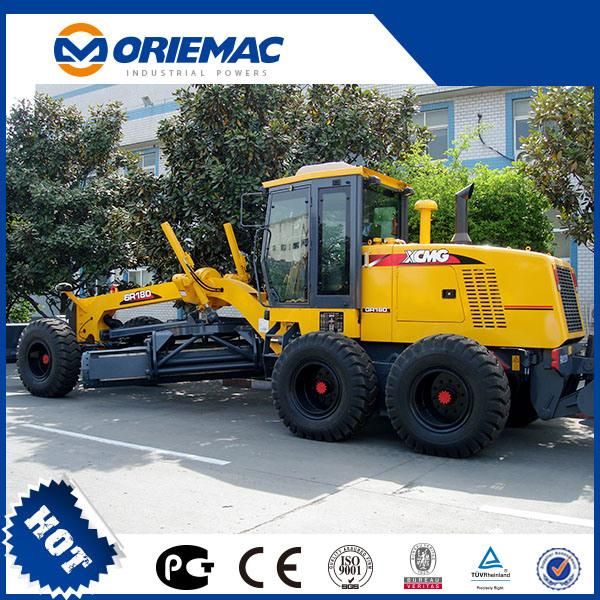

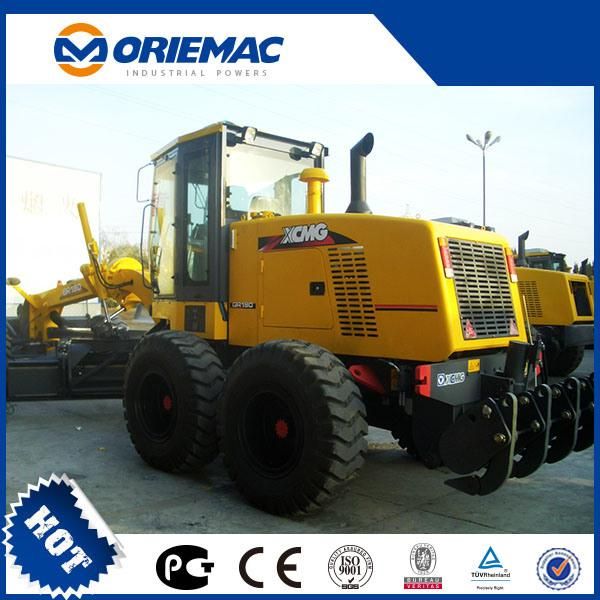

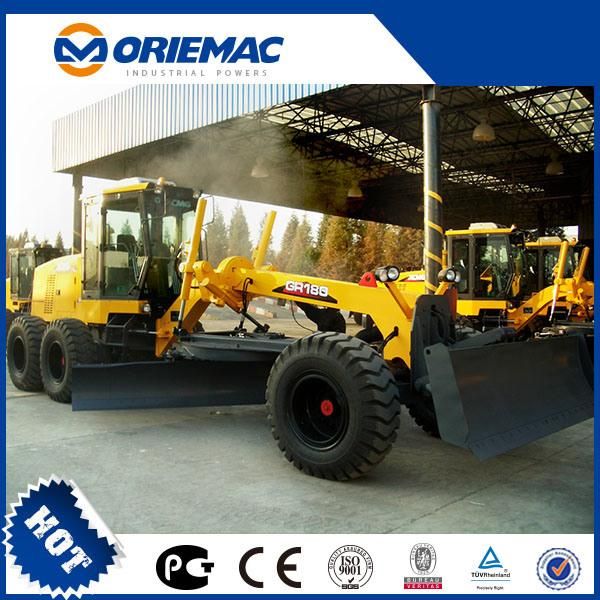

Product Pictures
