Gr215 Motor Grader 215HP with Ripper

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：GR215
  • Transport Package：in Nude
  • Specification：8970*2625*3470mm
  • Trademark：ORIEMAC
  • Origin：Jiangsu, China
  • HS Code：84292090
  • Production Capacity：5000PCS,Year

Description

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm

Product Pictures

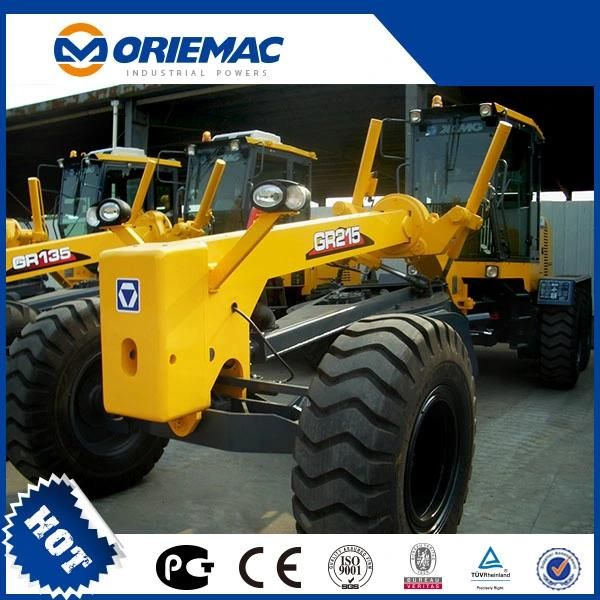

Gr215 Motor Grader 215HP with Ripper

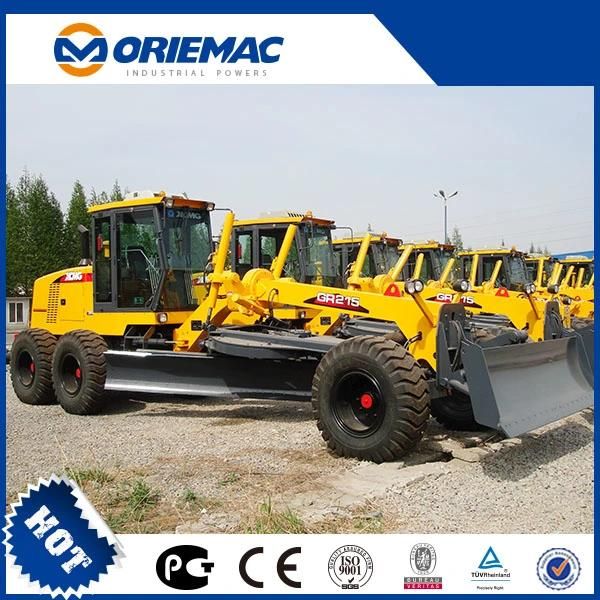

Gr215 Motor Grader 215HP with Ripper

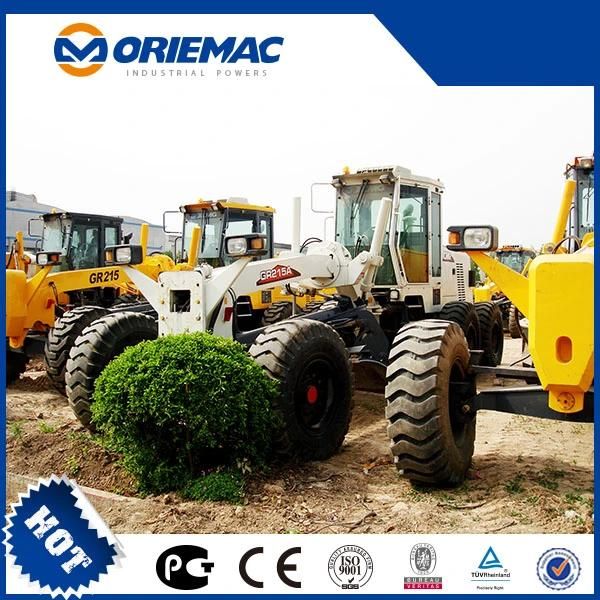

Gr215 Motor Grader 215HP with Ripper

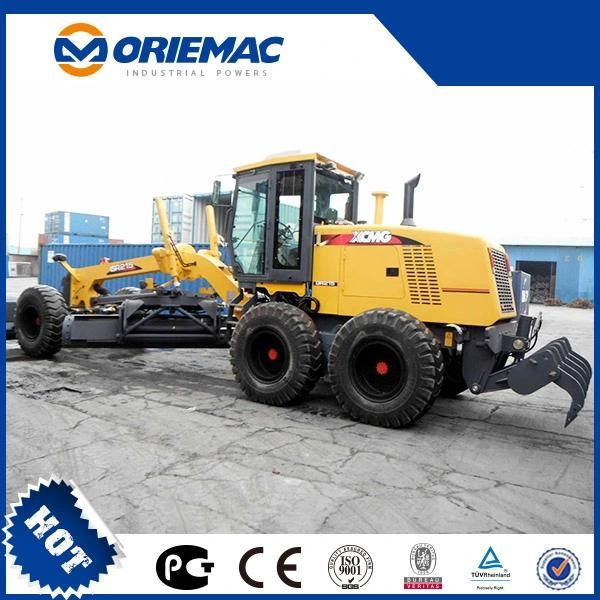

Gr215 Motor Grader 215HP with Ripper

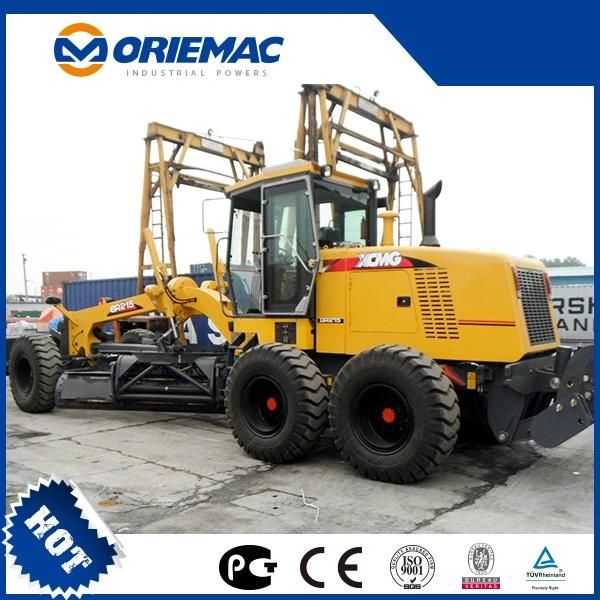

Gr215 Motor Grader 215HP with Ripper

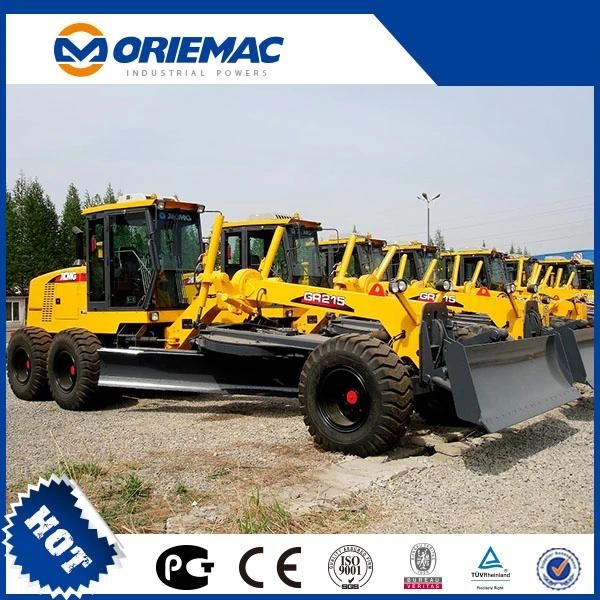

Gr215 Motor Grader 215HP with Ripper
