Grader Gr230 Motor Grader with Attachment

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：GR230
  • Transport Package：in Nude
  • Specification：8970*2625*3470mm
  • Trademark：ORIEMAC
  • Origin：Jiangsu, China
  • HS Code：84292090
  • Production Capacity：5000PCS,Year

Description

GR230Basic specificationEngine modelCUMMINS 6CTA8.3-C230Rated power/speed172kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.8)90KNMax. gradeability30%Tire inflation pressure260 MPaWorking hydraulic pressure18 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheelsLeft / Right 50°Max. lean angle of front wheelsLeft / Right 17°Max. oscillation angle of front axleUp / down 15°Max. oscillation angle of balance boxBefore / after 15Frame articulation angleLeft / Right 27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm

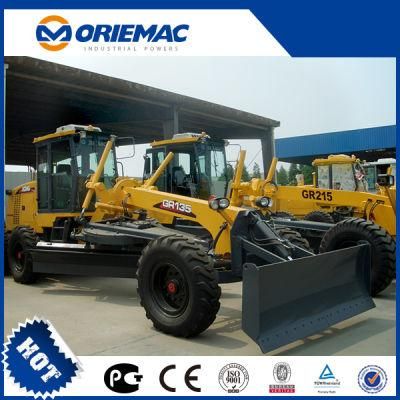

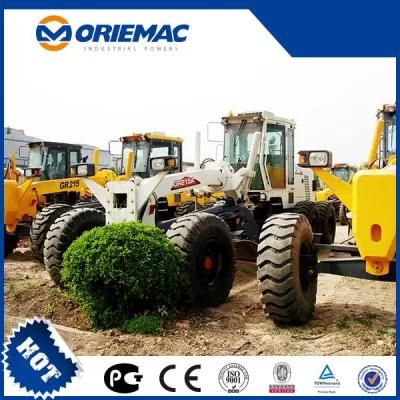

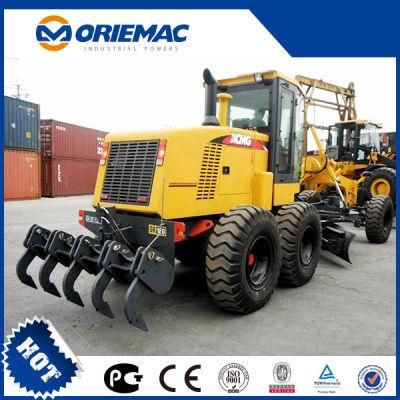

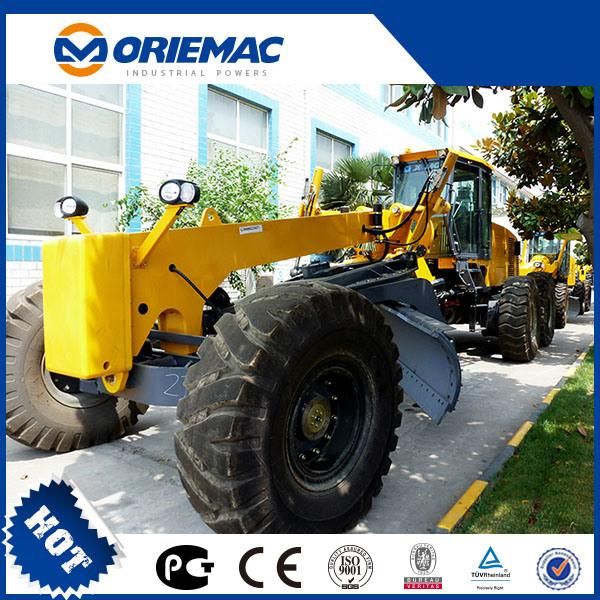

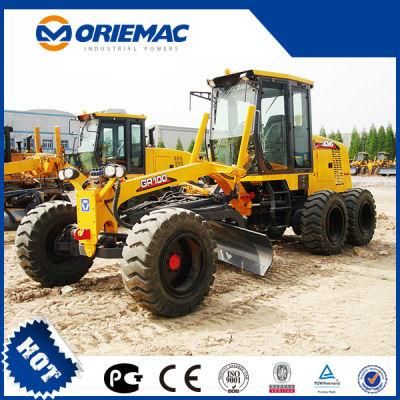

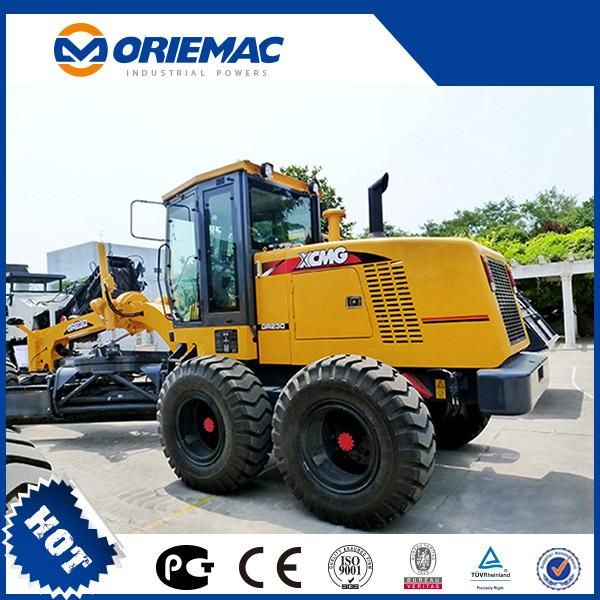

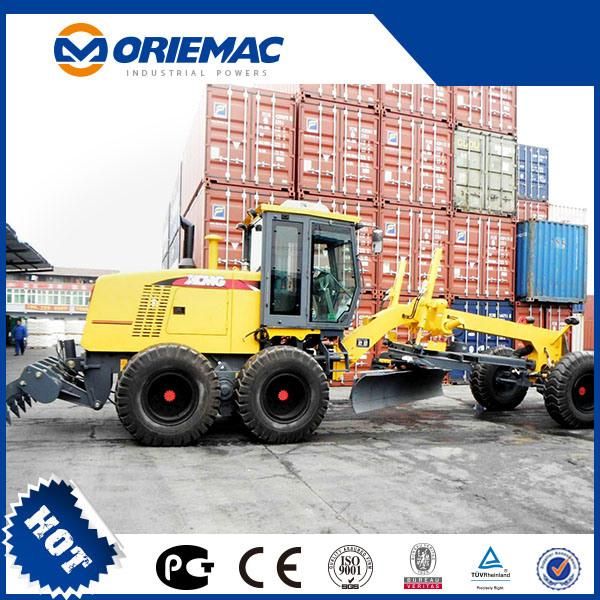

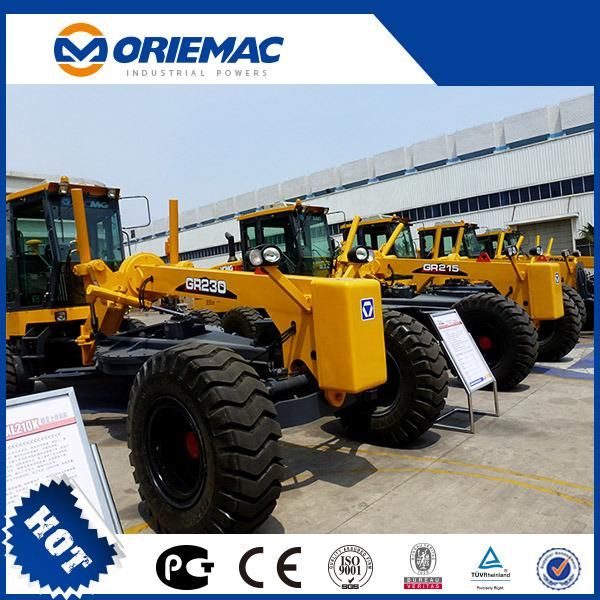

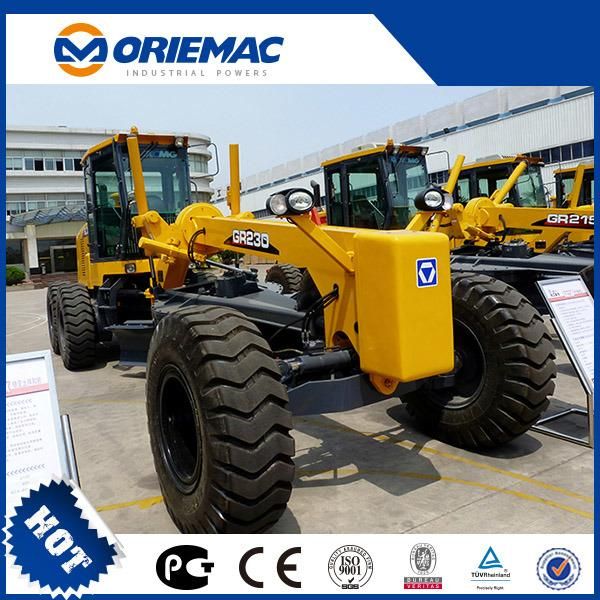

Product Pictures
