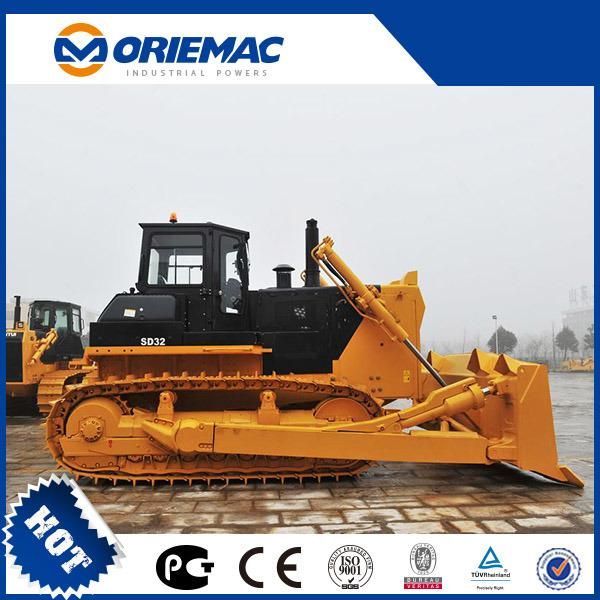

• Model NO.：SD32
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：6800*4130*3725mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：5000PCS,Year

Dimensions

LxWxH(mm)

6800x4130x3725

Weight

in KGS

Operating weight

37200kg

With multi-ripper

40975kg

Engine

Brand

NTA855-C360S10

Model

NTA855-C360S10

Rated revolution:

  2000r/min

Engine type

Turbocharged, intercooled, in line , 4-cycle

Piston displacement:

14010ml

Battery

24V(12V*2)-195AH

Start motor:

24V, 11kw

Alternator:

28V, 35A

Max torque:

1440N.m

Fuel consumption:

245g/kw.h

Engine

Fuel system:

PT pump head valve direct injection

Governor:

Centrifugal , all speed governor

Cooling system:

Forced circulation by centrifugal pump, busher tyre fan

Air cleaner:

Dry, horizontal type with air cleaner

Transmission

System

torque converter:

3-element,1-stage,1-phase

Cooling method:

   water-cooled

Transmission

Planetary gear, multiple - disc clutch , hydraulically connected forced lubrication by gear pump

Main-drive shaft :

  Main-drive shaft : Spiral bevel gear , Splash lubrication
