• Model NO.：PY165H
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Transport Package：in Nude
• Specification：8630*2600*3370mm
• Trademark：Changlin
• Origin：Shandong, China
• HS Code：84292090
• Production Capacity：5000PCS,Year

Overall DimensionLength8630mmWidth2600mmHeight(To the top of the cab)3370mmWheel base6100mmTread2120(mm)Main Technical SpecificationOperating weight14500kgBlade length3660mmBlade height645mmBlade width18mmMax lifting height450mmMax grading depth535mmMin. turning radius7300mmPivot angle frame+260Max turning angle(front wheel)+ 490Oscillating angle of front axle320Front axle center ground clearance610mmTraveling speed(Km/h),6 forward and 3 reverse(1) Igear forward6.5(2) IIgear forward11.4(3) IIIgear forward14.6(4) IVgear forward24.8(5) Vgear forward30(6) VIgear forward49.2(7) Igear reverse6.5(8) IIgear reverse14.6(9) IIIgear reverse30Diesel engineModelCummins 6BT5.9-C168Chinese engine D6114ZG9BTypeDirect injection. Turbocharged. Water coolingRated output125kW125kWInter-bore of cylinder/Stroke102/120 (mm)114/135 (mm)Total exhaust of cylinder5.9(L)8.3(L)Power of start motor4.5(KW)7.5(KW)Voltage of starting motor24(V)24(V)Rated speed2200(r/min)2200(r/min)Max. Torque733(N.M)600(N.M)Starting typeElectricElectricMin. specific fuel consumption201(g/Kw.h)226(g/Kw.h)Net weight452(kg)640(kg)Transmission System1.Torque ConverterModelWG180 (ZF technology)Type3-elements.single stageTorque ratio2.52Cooling typePressure oil circulating2.Transmission caseModelWG180 (ZF technology)Typepower shift, single-shift lever, natural-shift lock deviceGear shift position6 Forward and 3 reverse gears3.Axle and TireType of main reducerspiral bevel gear, single stageGear ratio of main reducer3.583Type of final reducerSingle stage chain-driveGear of ratio of final reducer3.75Gear ratio13.436Tandem driveDouble row roller-chainsSize of tire17.5-25-12PRWorking Device Hydraulic SystemModel of oil pump(include steering pump)CBGj2045/1025System pressure175(kgf/cm2)

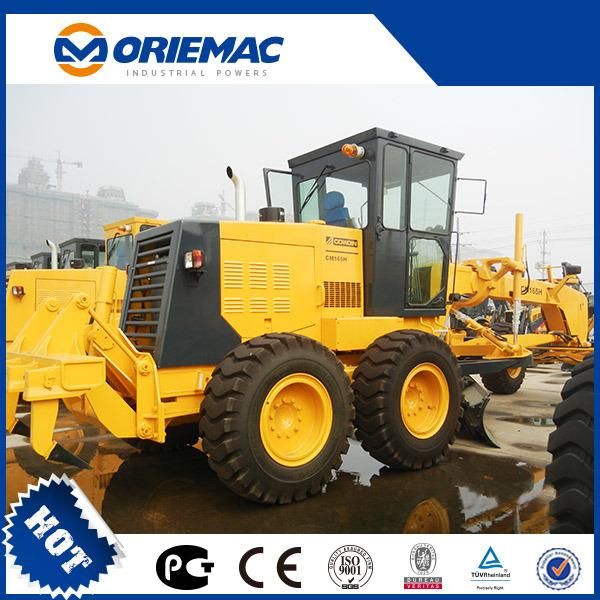

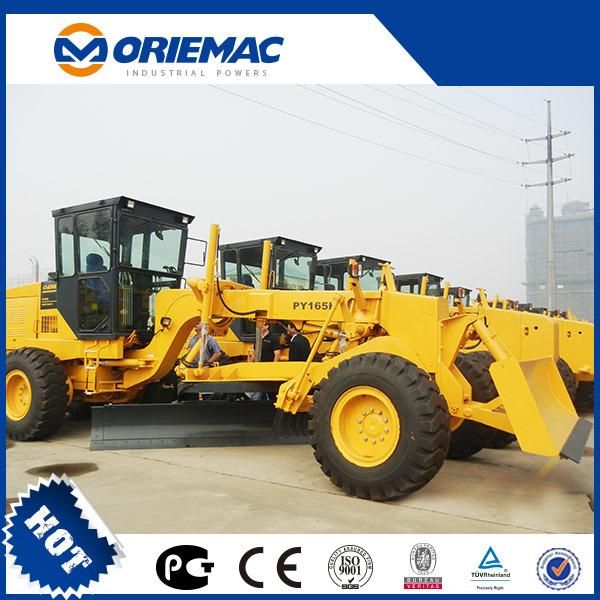

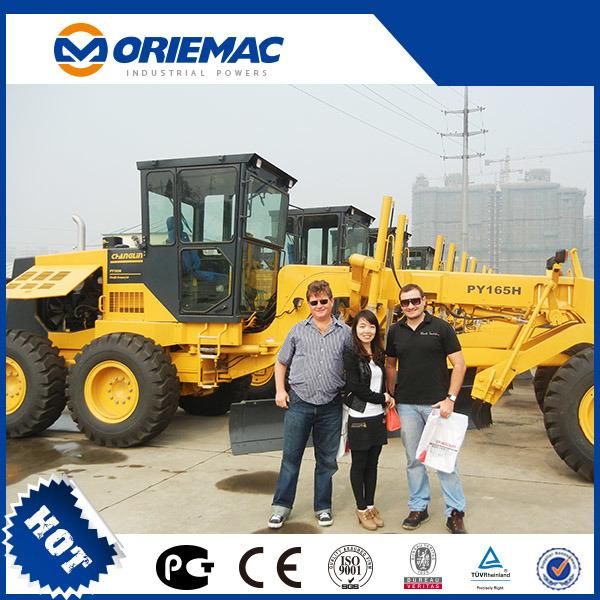

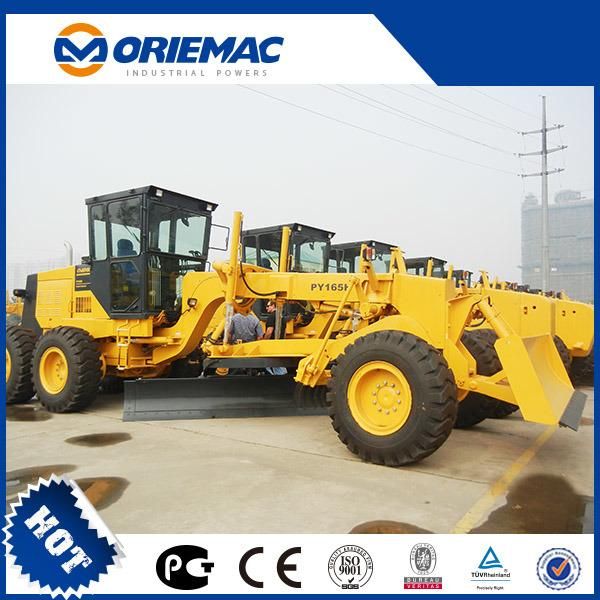

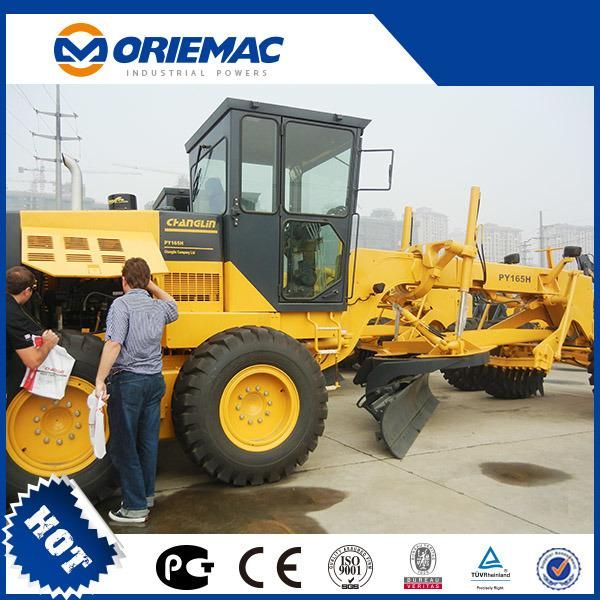

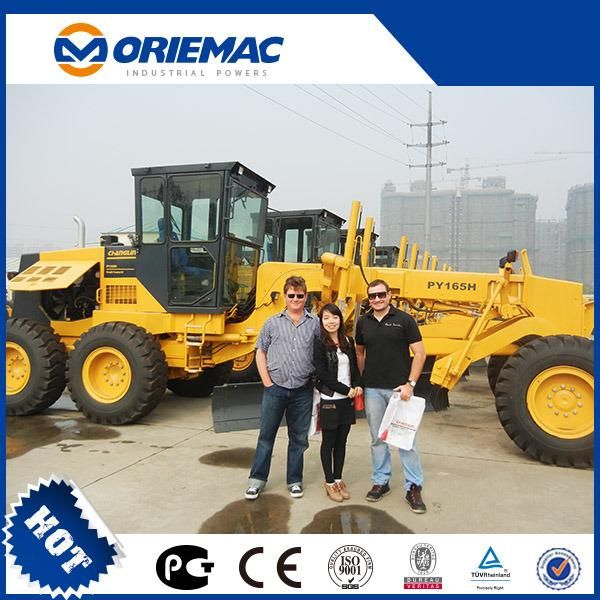

Product Pictures
