• Model NO.：HR958F
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Transport Package：Naked
• Specification：A
• Trademark：CHHGC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Performance1Rated load5200kg2Overall weight17250kg3Rated bucket capacity3.2m³4Maximum traction force≥160KN5Maximum breakout force≥180KN6Maximum grade ability30°7Maximum dump height3200mm8Maximum dump reach1100mm9Overall dimension (L×W×H)8040×3060×3400mm10Minimum turning radius6746mmEngine11ModelWeichai Steyr WD615G.22012TypeInline,water cooling,dry cylinder,direct injection13No. of cylinder-bore/stroke6-126×130mm14Rated power162kw--2000r/min15Maximum torque890N.m16Min fuel-consume ratio≤215g/kw.h
Transmission system17Torque converterYJ37518Gearbox modePlanetary power shift19Gear shift2 forward shift1 reverse shift20Maximum speed41km/hDrive axles21Main transmission typeSpiral gear,first stage decelerate22Final decelerate typeFirst stage,planetary gear decelerate23Wheel base (mm)3200mm24Wheel tread2250mm25Minimum ground clearance450mmHydraulic system26System working pressure18MPa27Boom lifting time≤6.4s28Total time≤11.3s29Fuel tank capacity210L30Hydraulic tank capacity300L31Function of leveling automaticallyYes Brake system32Service brakeAir over hydraulic disc brake on 4 wheels33Parking brakeManual parking brake Tyre34Type specification23.5-2535Front tyre pressure0.39±0.01 Mpa36Rear tyre pressure0.33±0.01MpaSteering system36TypeArticulated load-sensing hydraulic steering system37Steering angle38°each side

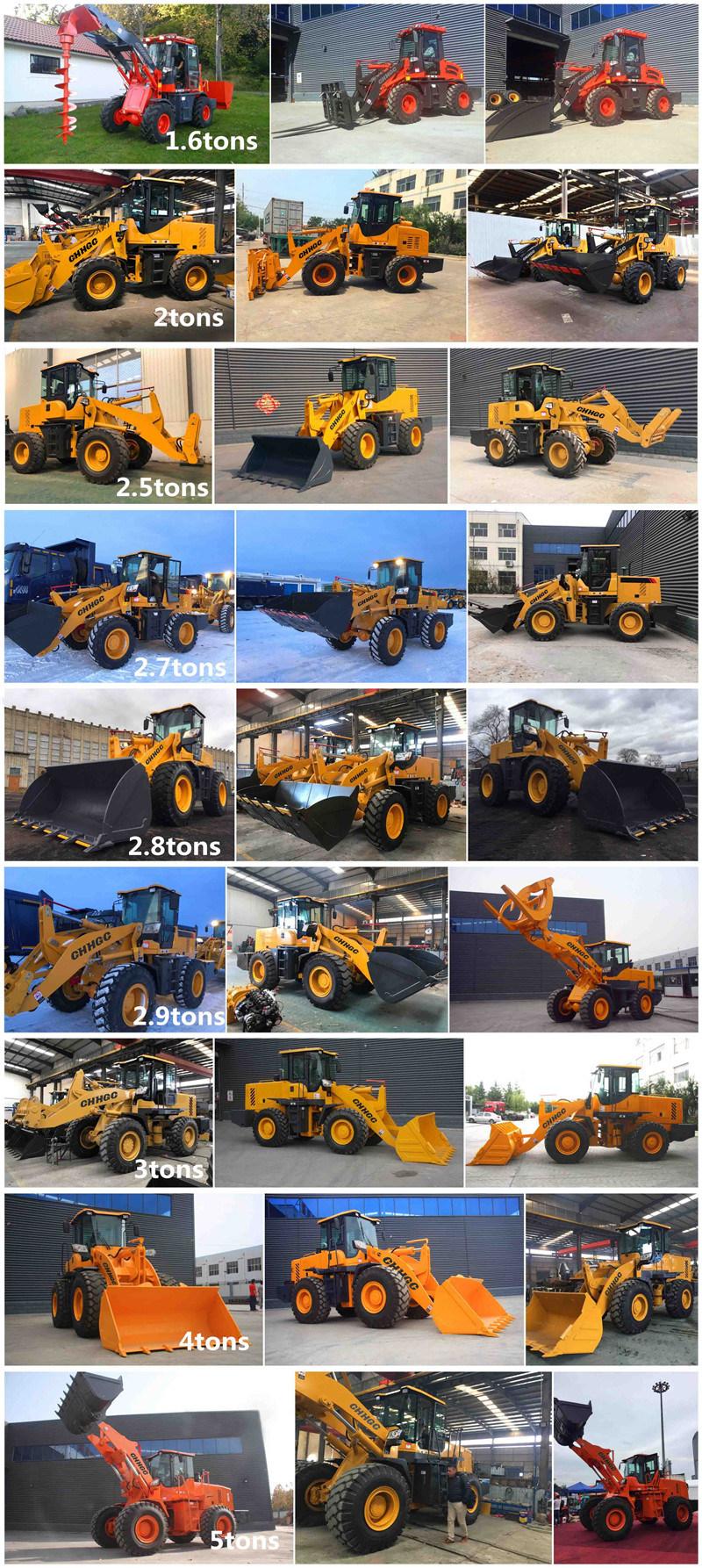

Products series

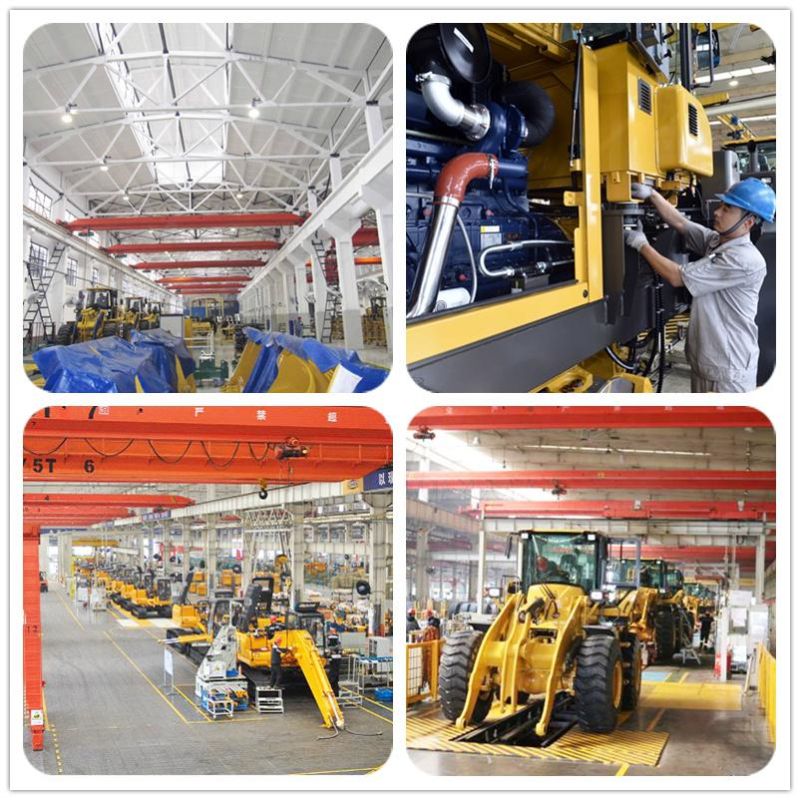

Production Workshop

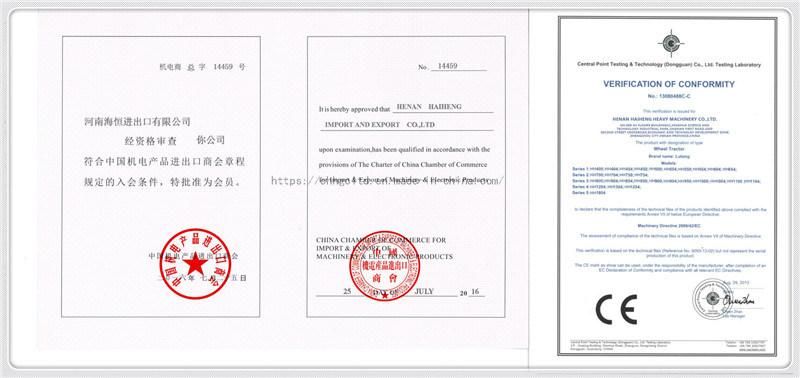

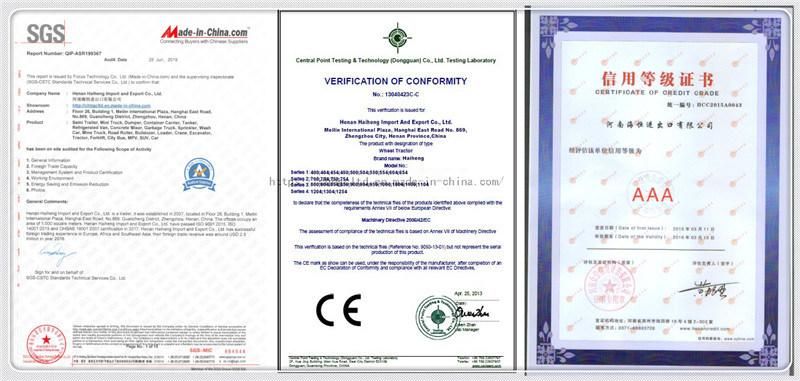

Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
