• Model NO.：HR936
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Color：Colour as Our Customer Required
• Transport Package：Naked
• Specification：A
• Trademark：CHHGC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

, Overall Dimension1Length(with bucket on ground)6954(mm)2Width(to outside of wheels)2250(mm)3Bucket width2440(mm)4Height(To the top of the cab)3190(mm)5Wheel base2750(mm)6Track1800(mm)7Min. ground clearance370(mm), Main Performance Specification1Rated load3500(Kg)2Operating weight10800(Kg)3Rated bucket capacity2.0(m³)4Max. breakout force MF of bucket's rolling back120.6(KN)MF of bucket's lifting55.5(KN)5Max. draw / pull  75(KN)6Max. dump clearance2750(mm)7Dump reach1084(mm)8Dump angle at any position ≥45010Max. turning radius Outside of bucket 5700(mm)Outside of rear wheel5200(mm)11Pivot angle frame 36+1012Oscillating angle of rear axle+12013Lifting time of bucket<6.0(sec.)14Lowering time of bucket<3.5(sec.)15Dumping time<1.5(sec.)16                                                     Travelling speed(Km/h) (1)1st gear8(2)2nd gear14(3)3rd gear25(4)4th gear41,Diesel engine1Model Weichai DEUTZ Engine2OptionalXichai or Cummins or EURO3 LOVOL Engine3TypeFour Stroke,director iniector,water cooling4Rated output92Kw5Voltage of starting motor24v6Rated speed2200r/min7Max. torque432N.m8Starting typeElectric starting,Transmission System(),Torque Converter1ModelYJ3202Type3-element.single stage3Torque ratio3.74Dia. of flow path320(mm)5Max. efficiency≥85.7%6Cooling typePressure oil circulating(),Transmission case1TypeFixed shaft. power shift2Gear shift position 4 Forward and 4 reverse gears3Model of gear shift pumpCB324Displacement of gear shift pump32(ml/r)(),Axle and Tyre1Type of main reducerSingle stage2Gear ratio of main reducer7.63:13Type of final reducerSingle stage planetary4Gear of ratio of final reducer3.6:15gear ratio27.4685Size of tyre17.5-25,Working Device Hydraulic System1Model of oil pumpCBG21002Displacement of the pump100(ml/r)3System pressure15690(Kpa)4Model of distribution valveDF25.25(D*L)Dimension of lifting cylinder 110*63*780(mm)6(D*L)Dimension of tilting cylinder160*90*499(mm),Steering  System 1TypeMiddle articulated frame. full hydraulic power2Model of steering gearBZZ1-4003Model of steering pumpCBN-E5504Displacement of pump50(ml/r)5System pressure9806kPa6Dimension of steering cylinder80*294(mm),Brake System1Type of travelling  brake Disc brake2Type of emergency brakeAutomatic cutting air brake3Type of parking brakeDisc brake,Oil rifill Capacity1Fuel(diesel)142(L)2Engine lubricating oil18(L)3Oil for converter and gear box32(L)4Oil for hydraulic system140(L)5Oil for driving axles25(L)

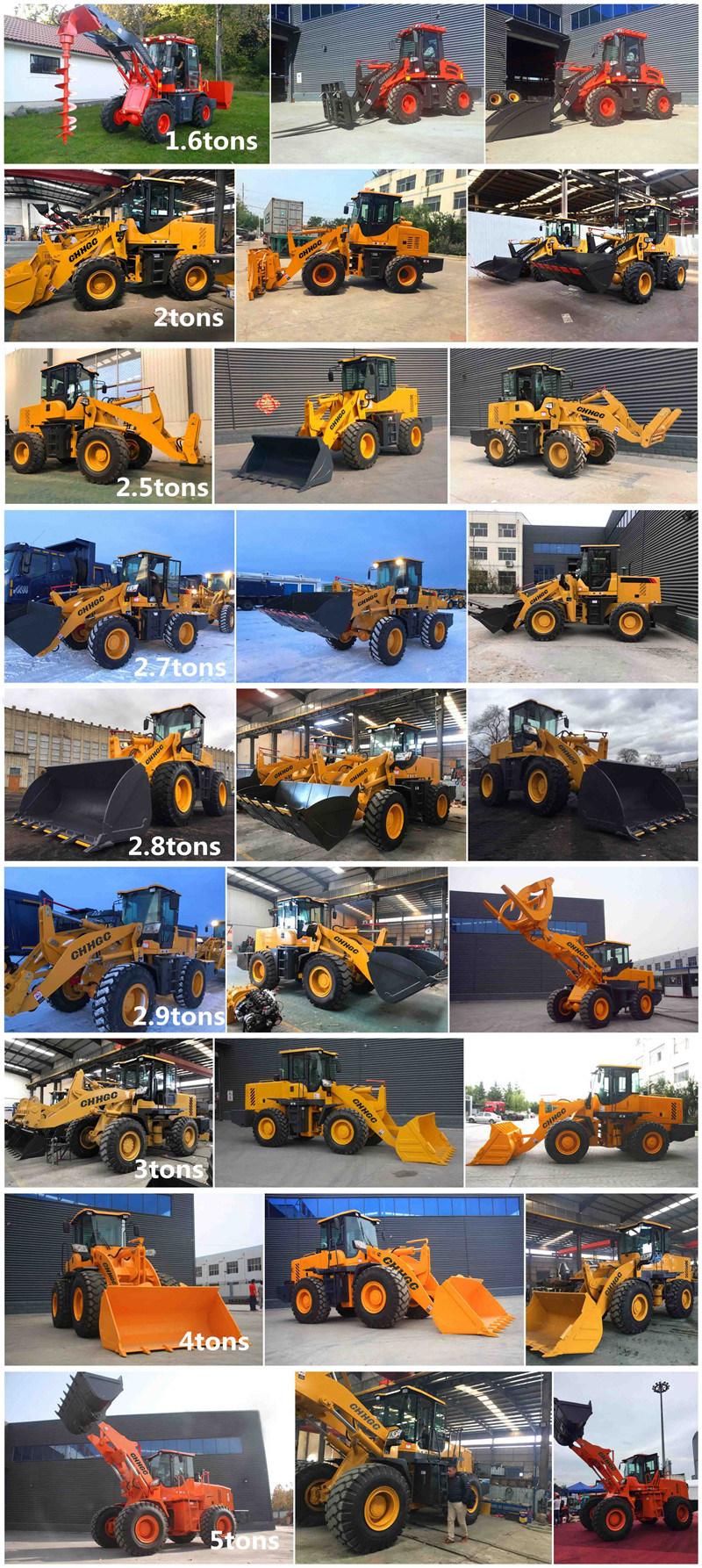

Products series

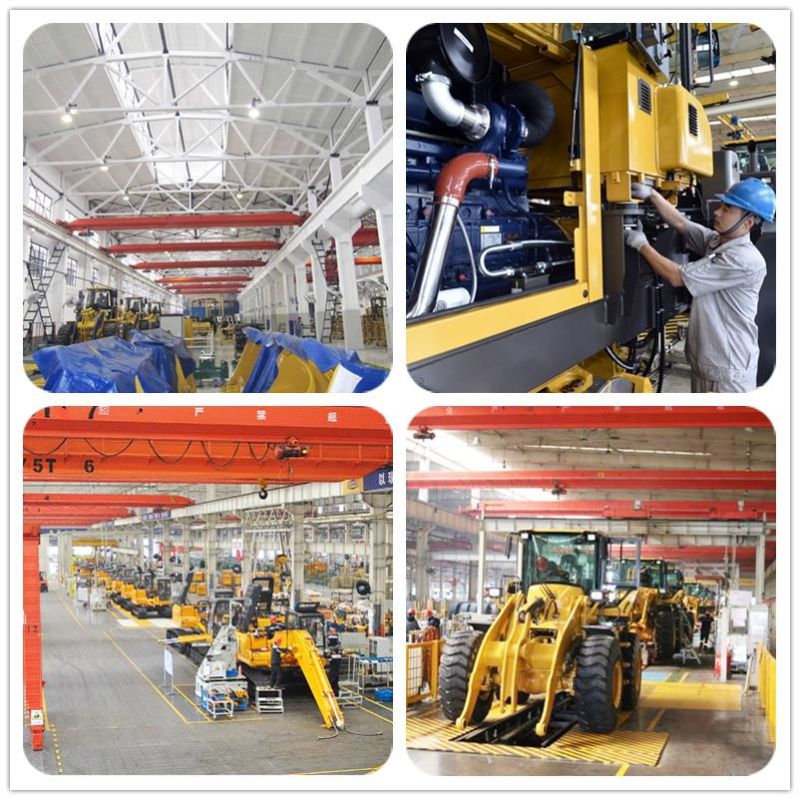

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
