• Model NO.：HR930M
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Red
• Transport Package：Naked
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

The technical parameters of HR930F series CE certificate wheel loaderPerformance1Rated loading2800kg2Overall weight6500kg3Rated bucket capacity1.4m³ 4Wheel base2600mm5Wheel tread1700mm6Maximum grade ability30°7Maximum dump height3500mm 8Min.ground clearance380mm9Overall dimension (L×W×H)6550*2270*3080mm 10Dimension with quick hitch6720*2270*3080mmEngine11ModelWei chai /Yu chai / Hua feng / YTO engine12Optional modelCummins engine13TypeVertical, in-line, water cooled, 4-stroke diesel engine14Rated power75-90KW15Rated speed 2200rpm-2400rpm16Engine starting modeElectricTransmission system17Torque converterYJ28018Gearbox modeCounter shaft power-shift19Gear shift2 forward shift 2 reverse shift20Maximum speed25km/hDrive axles21Main reducing spiralCircular Arc Bevel gear, single stage22Decelerating modeSingle stage planetary type23Driving modeFour-wheel full hydraulic driveBrake24Brake typeAir assisted oil disc on four wheelTire24Tire type16/70-24 tyrePackaging25Packaging detailsNude package,1 unit in 20GP,2 units in 40HQ.26PortQingdaoDelivery time2735 days after 30% down payment.Warranty2815 months after delivery.

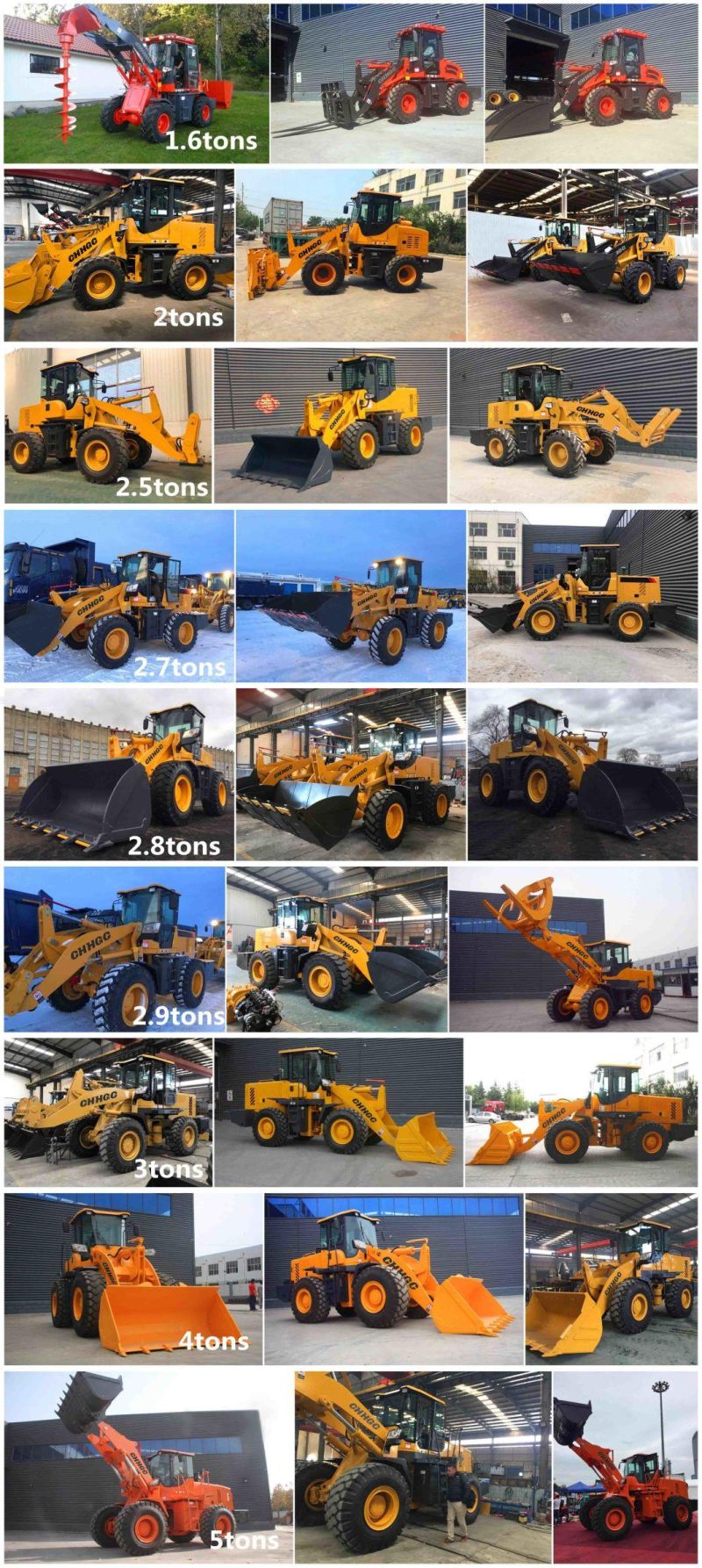

Loader series

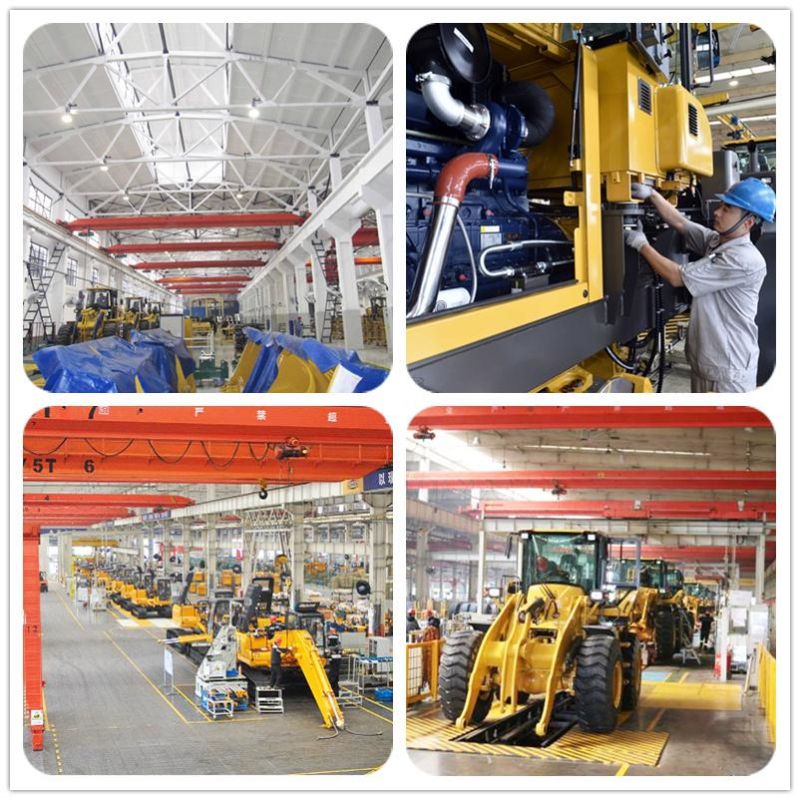

Production Workshop

Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loader and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model loader do you supply?
A:  We supply all kinds of loader such as 1.5T, 2T, 3T,  etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
