• Model NO.：HF856A
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max.Drilling Depth：56(M)
• Drilling Diameter：600 - 1600(mm)
• Chassis(Max.Traveling Speed)：3(Km,H)
• Diesel Engine：6bt5.9 Cummins
• Engine(Rated Power)：108,2100(Kw,Rpm)
• Operating Weight of Total Machine：38000(Kg)
• Rotary Drive(Max.Torque)：80(Kn.M)
• Rotary Drive(Rotation Speed)：0-22(R,Min)
• Main Winch(Max.Line Pull)：120(Kn)
• Crowd(Max.Push)：120(Kn)
• Transport Package：Export Packing
• Specification：CE, ISO
• Trademark：Hanfa
• Origin：China
• HS Code：8430490000
• Production Capacity：30sets,Month

Basic Info.

Model NO. HF856A Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Max.Drilling Depth 56(M) Drilling Diameter 600 - 1600(mm) Chassis(Max.Traveling Speed) 3(Km/H) Diesel Engine 6bt5.9 Cummins Engine(Rated Power) 108/2100(Kw/Rpm) Operating Weight of Total Machine 38000(Kg) Rotary Drive(Max.Torque) 80(Kn.M) Rotary Drive(Rotation Speed) 0-22(R/Min) Main Winch(Max.Line Pull) 120(Kn) Crowd(Max.Push) 120(Kn) Transport Package Export Packing Specification CE, ISO Trademark Hanfa Origin China HS Code 8430490000 Production Capacity 30sets/Month

Product Description

HF856A Hydraulic Rotary Drilling Machine For Piling Drill

Introduction

1. max. depth 56m, hole diameter 600~1600mm;

2. 112KW Cummins (USA) diesel engine supply power, very powerful and durable;3. adopting telescopic mast structure which owns simple structure and makes transport more convenient;4. the shape axle bed structure is used to fax boom and link arm, boom can adjust around and control the arm, guarantees vertical on rough place;5. triangular structure between link arm and amplitude cylinder increases the machine stability;6. power head adopts unique patent structure, which save cost and make more convenient;7. adopting original imported hydraulic pressure motor from Italy, it has sensitive reaction and can free down;

Parameter


Description	unit	model
Drilling diameter	mm	600 - 1600(mm)
Max.drilling depth	m	56(m)
Chassis(Max.traveling speed)	km/h	3(km/h)
Auxiliary winch(Rope diameter)	mm	16(mm)
Auxiliary winch(Max.line speed)	m/min	50(m/min)
Auxiliary winch(Max.line pull)	kN	60(kN)
Main winch(Rope diameter)	mm	21.5(mm)
Main winch(Max.line speed)	m/min	70(m/min)
Main winch(Max.line pull)	kN	120(kN)
Crowd(Max.stroke)	m	2(m)
Crowd(Max.pull)	kN	81(kN)
Crowd(Max.push)	kN	120(kN)
Rotary drive(Rotation speed)	r/min	0-22(r/min)
Rotary drive(Max.torque)	kN.m	80(kN.m)
Diesel engine		6bt5.9 Cummins
Engine(Rated power)	kw/rpm	108/2100(kw/rpm)
Operating weight of total machine	kg	38000(kg)
Overall measurment(Transport data)	mm	13350×3200×3200(mm)

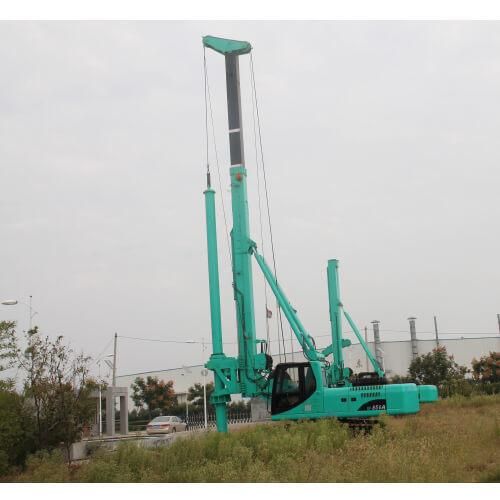

Product Display

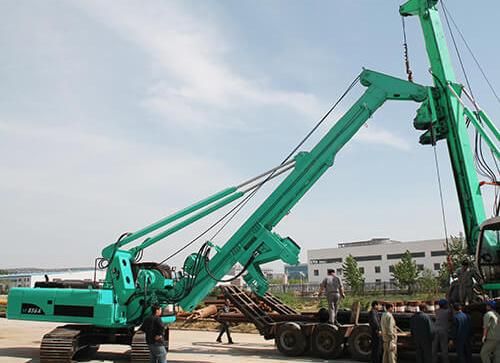

Working

Different Model For Your Choice:

Model	Drilling diameter	Max drilling  depth	Rotary drive torque, rotation speed	Engin type/rated power
HF850A	600-1600mm	46m	80kn·m,1-22rpm	B5.9-C Cummins/ 112KW
HF128A	600-1500mm	42m	50/102kn·m, 38/20rpm	B5.9-C Cummins/ 113KW
HF168A	600-1800mm	44/56m	80/165kn·m, 24/12rpm	B5.9-C Cummins/ 133KW
HF525	1400mm	25m	50kn·m,1-20rpm	B5.9-C Cummins/ 86KW
HF530	0-1200mm	30m	50/60kn·m,1-22rmp	B5.9-C Cummins/ 86KW,112KW
HF630A	300-1200mm	30m	55kn·m,0-22rpm	B5.9-C Cummins/ 86KW
HF320A	300-1200mm	20m	30kn·m,0-22rpm	B5.9-C Cummins/ 86KW

Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.


1. More than 30 years of experience

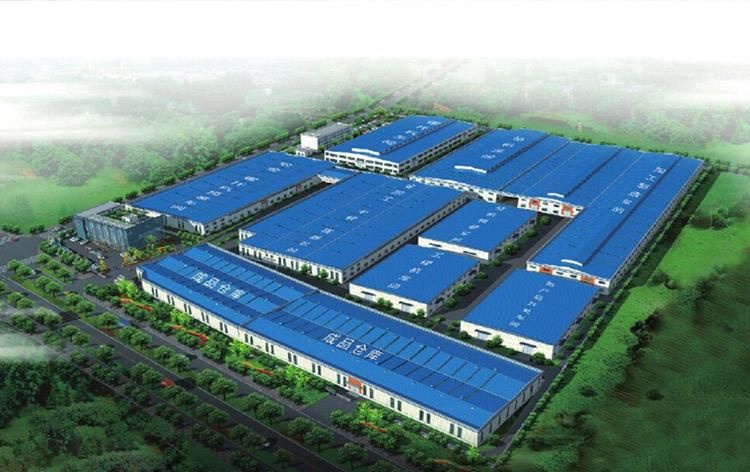

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

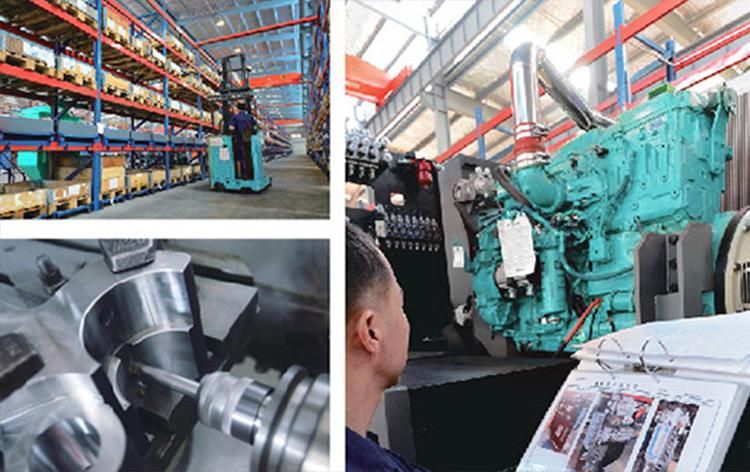

2.Top production team

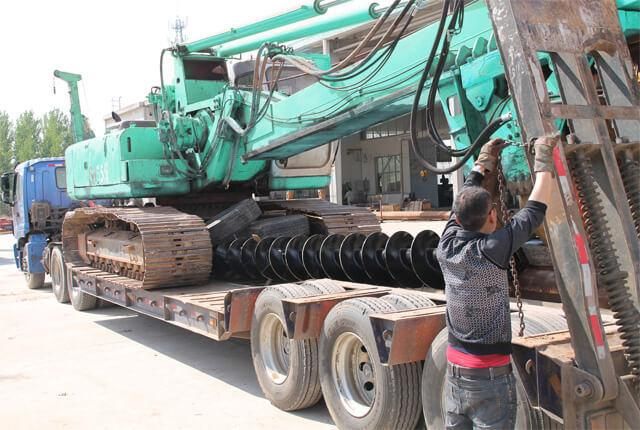

The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
