• Model NO.：952A
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Color：Colour as Our Customer Required
• Transport Package：Wood Frame
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. 952A Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Color Colour as Our Customer Required Transport Package Wood Frame Specification A Trademark CHHCC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

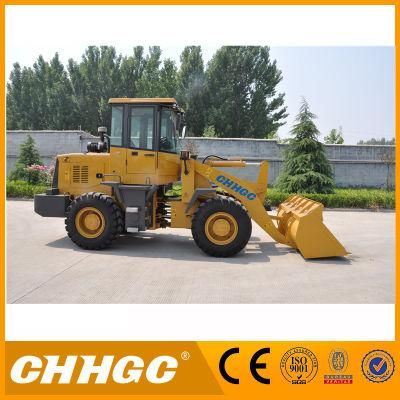

 Top Quality Loader, Front End Wheel Loader, Loading Machine in Earth-moving Machine

Application:

Shovel mucking, handling, Load discharge, leveling, Mild Spading, Bulldozing, Lifting in construction of Buildings, roads, water and electricity, ports, mining, national defense engineering, etc.


Introduction:

1,Reasonable layout , compact structure, beautiful and generous appearance.

2,Optimized design of work attachment.

The capacity of the machine, breakout force, discharge height, discharge distance and three-items time, all reached or exceeded the national standard indicators of high-class product, with high operating efficiency.

3,Hydraulic system of work attachment

It uses a direct operation of dual-link stick under the set operations of control valve, eliminating the internal operating resistance of the flexible shaft, greatly reducing the manipulation of fatigue, the effect is comparable to the pilot control.

4,Steering system uses fully hydraulic articulated steering system of coaxial flow amplified, so the steering is light and flexible, reducing energy loss by combining the hydraulic system of work attachment.

5,Weifang WD10G220E21 excellent performance diesel engine improves power system reliability and economy.

6,with fully enclosed cab, heater system configuration, and an optional single-cold air conditioning, high-gear shock absorber seats, etc., operating environment is comfortable and safe.

7,Rear short wheelbase articulated steering.

The rear frame is using box-beam structure so that it is durable and easier to repair.

8,The traditional torque converter of military technological superiority, full power shift transmission box with fixed axis, high-intensity military axle, all are advanced technology, reliable quality.

Major technical parameters



Overall dimension (length x width x height) (mm)	8205×3000×3450
Rated load (t)	5
Capacity of bucket (m3)	2.7-4.2
Capacity of standard bucket (m3)	2.7
Weight of complete machine (t)	16.5-16.9
Unloading height (mm)	3450
Unloading distance (mm)	1070
Sum time of three items (s)	≤10.8
Wheelbase (mm)	3200
Wheel track (mm)	2200
Maximum breakout force (kN)	170
Maximum traction (kN)	150
Steering angle	37º
Maximum traveling speed (km/h)	38
Minimum turning radius	5890
Maximum grade ability (°)	28

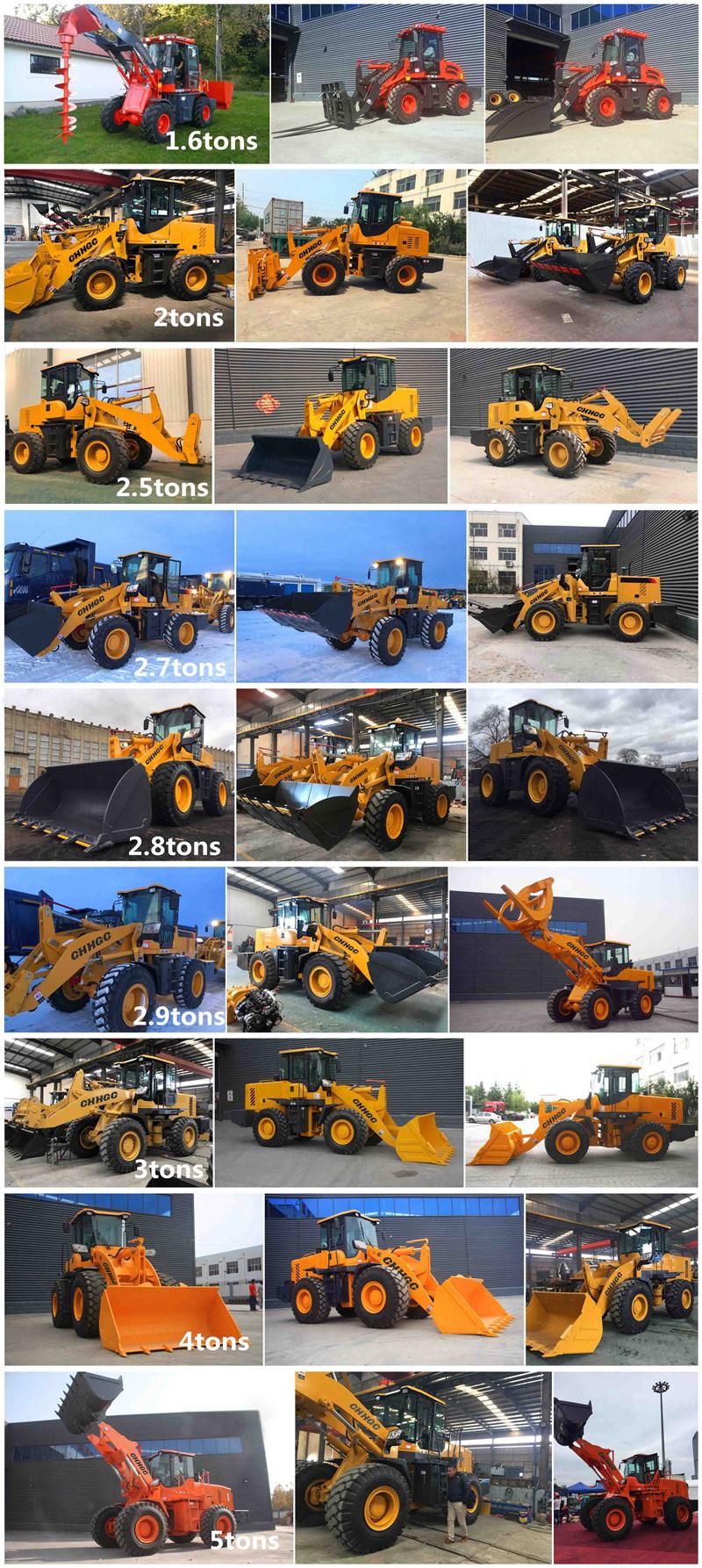

Products series

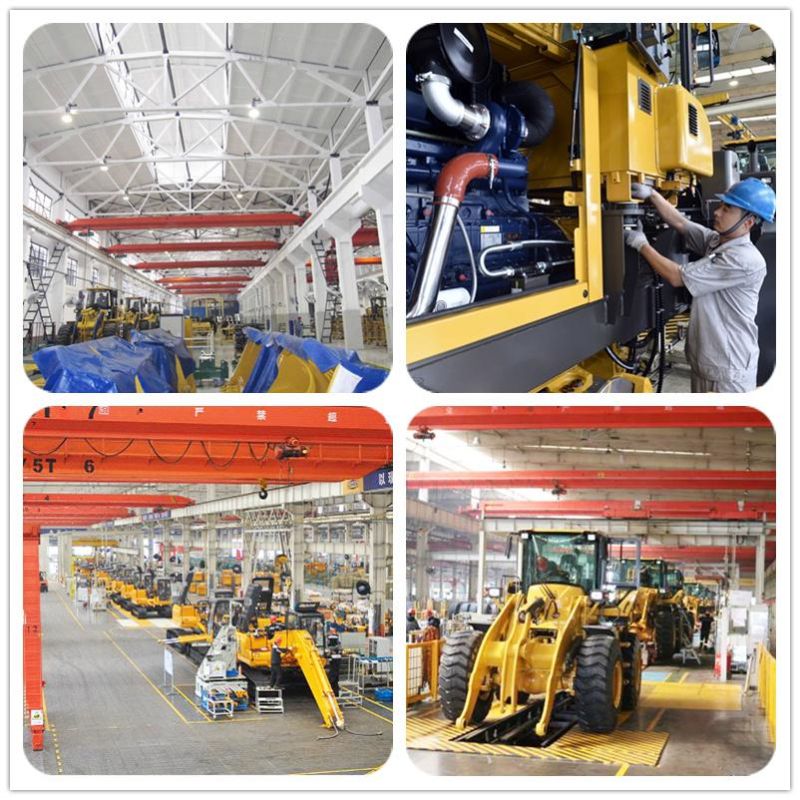

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
